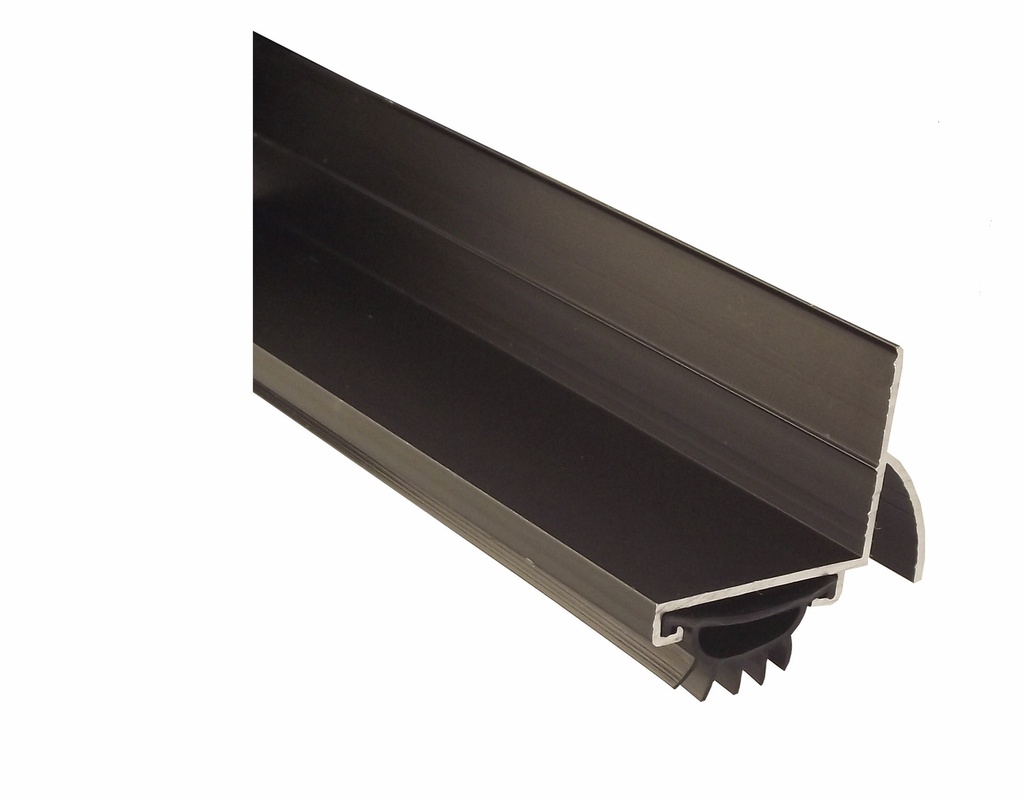

Pemko 210DV Door Bottom Shoe with Rain Drip - Dark Bronze Anodized
The Pemko 210DV is a high-performance Door Bottom Shoe and Rain Drip combination engineered to protect the base of your door while providing a superior weather seal. Finished in a sophisticated Dark Bronze Anodized Aluminum, this L-shaped shoe wraps the door's edge to provide structural protection. It features an integrated Rain Drip flange that deflects water away from the threshold and a premium Black Eco-V (V) Vinyl Fingered Insert to block drafts, light, and smoke.
High-Performance & Weatherproofing Features
- Integrated Rain Drip Deflector: The exterior flange is designed to shed heavy rain away from the door-to-floor gap, preventing water from pooling or seeping into the building.
- Eco-V Fingered Insert: The black vinyl insert features multiple flexible "fingers" that create a multi-stage seal. This Eco-V material is more durable than traditional vinyl and remains effective from -4° F to +122° F.
- Life Safety Certified: Rigorously tested to meet UL 1784 smoke leakage requirements and UL 10C for positive pressure, making it ideal for fire-rated commercial openings.
- Precision Adjustment: The aluminum retainer is punched with elongated slotted holes, allowing for vertical adjustments during installation to achieve the perfect 1/16" gasket compression.
- Eco-Friendly & Healthy: GREENGUARD Gold Certified for low chemical emissions and free from phthalates and heavy metals, supporting sustainable building standards like LEED.
Technical Specifications
- Manufacturer: Pemko (ASSA ABLOY)
- Model Number: 210DV
- Finish: Dark Bronze Anodized Aluminum (D)
- Insert Material: Black Eco-V Vinyl (V)
- Dimensions: 1-1/4" Width x 1-9/16" Total Height (with insert)
- Required Clearance: Designed for doors with a 1/2" undercut (clearance from floor/threshold).
- Certifications: BHMA Certified (ANSI/BHMA A156.22), UL Listed, ANSI: R3D514.
| Length | 36 Inch or 48 Inch |
| Brand | Pemko |
| Insert Material | Vinyl |
| Material Length | 1/2" |
| Bottom Weatherseal Type | Door Bottom w/ Rain Drip |
| Housing Finish | Dark Bronze |
| Fire Rated | Fire Rated |
| Smoke Rated | Smoke Rated |
| Sweeps, Door Bottom or Rain Drip | Door Bottom |
