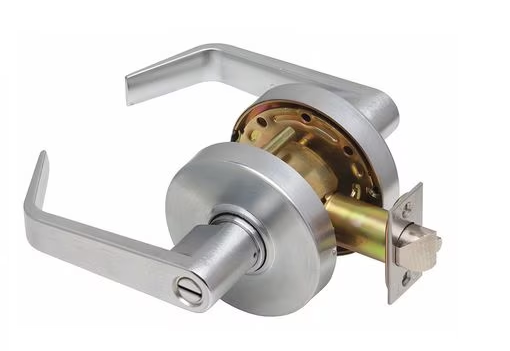

PDQ SD176 PHL Privacy Function Cylindrical Latchset
Function Information:
- Latchbolt operated by lever from either side or emergency release in outside lever
- Outside lever locked by push button on inside
- Outside lever unlocked by emergency release from outside, rotating inside lever, or closing door
- ANSI F76
The PDQ SD176 PHL is a commercial-grade Grade 2 Privacy Lockset designed for interior spaces where personal privacy is required, such as restrooms, changing rooms, and private offices. Featuring the modern Philadelphia (PHL) lever style, this lockset provides a sleek, "returned-to-door" aesthetic that is fully ADA Compliant and prevents clothing from snagging during use.
As a Privacy Function (ANSI F76) lock, the SD176 offers a simple push-button locking mechanism on the interior. For safety and liability management, the exterior lever includes an emergency release access point, allowing staff to unlock the door from the outside using a small tool or screwdriver in the event of an emergency.
Reliable Privacy with Auto-Release Safety
The PDQ SD176 is built to ensure a seamless user experience while maintaining strict safety standards:
- Push-Button Locking: The user simply presses the button on the inside lever to secure the door.
- Three-Way Unlocking: The lock automatically disengages by rotating the inside lever, closing the door, or using the exterior emergency release.
- Non-Keyed Security: Ideal for non-secure areas where privacy is needed but keyed access is not required, reducing the cost and complexity of key management.
Technical Specifications
| Feature | Details |
| Model | PDQ SD176 PHL |
| Function | Privacy (ANSI F76) |
| Grade | Certified ANSI/BHMA A156.2, Grade 2 |
| Lever Style | Philadelphia (PHL) |
| Backset | 2-3/4" (Commercial Standard) |
| Strike | 4-7/8" ASA Strike |
| Latch | 1/2" Throw Latchbolt |
| Door Thickness | Fits 1-3/8" to 1-3/4" |
| Chassis | Cylindrical, Zinc Dichromated Steel |
Why Choose the PDQ SD Series from Doorways Plus?
At DoorwaysPlus.com, we recommend the PDQ SD Series for professional environments that demand long-term reliability. The SD176 is engineered with a heavy-duty cylindrical chassis and zinc-dichromated steel components, offering superior corrosion resistance and internal strength.
- Accessibility Standards: The PHL lever meets all ADA requirements for easy operation without the need for tight grasping or twisting.
- Simplified Maintenance: The automatic "unlock on close" feature prevents accidental lockouts and reduces wear on the internal latch components.
- Universal Retrofit: With a standard 2-3/4" backset and 4-7/8" ASA strike, this lockset is a direct replacement for most commercial interior door hardware.
| Finish with BHMA code | 626 - US26D Satin Chrome or 613 - US10B Oil Rubbed Bronze or 605 - US3 Polish Brass or 622 - US19 Flat Black |
| Brand | PDQ |
| ANSI Cyl Lock Function | F76 - Privacy |
| Trim Design | PHL |
| Series | PDQ - SD Series |
| Occupancy Indicator | No |
| Backset | 2-3/4" Backset |
| Strike Type | 4-7/8 ANSI Strike - Hollow Metal Frames |
