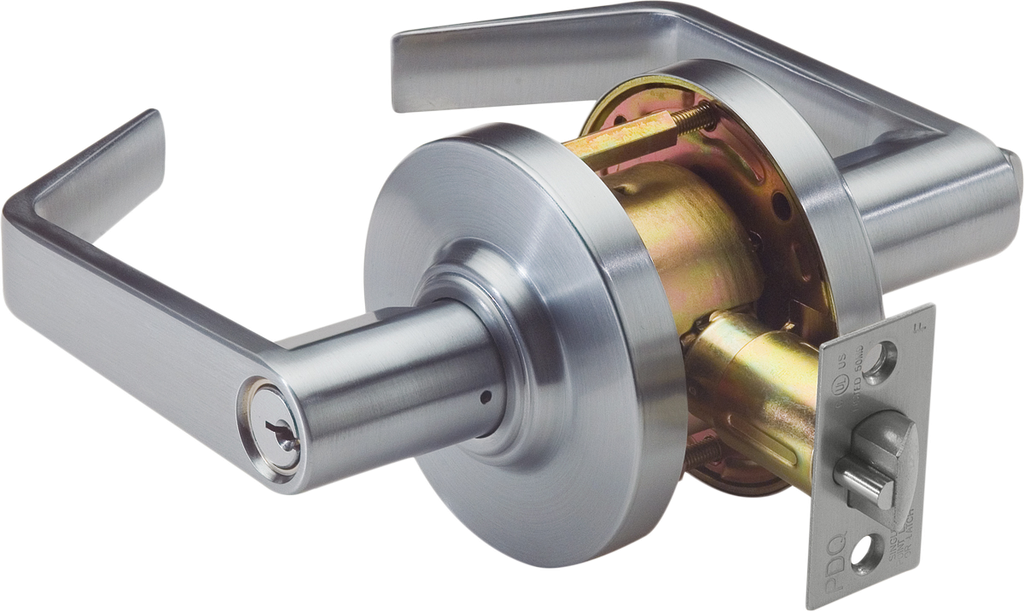

PDQ SD116 PHL Office Entry Function Cylindrical Lockset
Function Information:
- Latchbolt operated by lever from either side or key in outside lever Outside lever locked by push/turn button on inside
- When outside lever is locked by push button on inside – key from outside, or rotating inside lever unlocks outside lever
- When outside lever is locked by pushing and turning the button on the inside, key from outside or rotating inside lever retracts latch but does not unlock outside lever
- Deadlocking (guarded) latchbolt
- ANSI F109
The PDQ SD116 PHL is a professional Grade 2 Cylindrical Lockset engineered for versatility and security in commercial environments. Featuring the popular Philadelphia (PHL) lever style, this lockset provides a modern, sleek aesthetic that is fully ADA Compliant.
As an Office/Entry Function (ANSI F109) lock, the SD116 offers the perfect balance of convenience and security. It allows the user to switch between a "passage" mode for high-traffic hours and a "secured" mode for after-hours privacy, all controlled via a push/turn button on the interior lever.
Versatile Locking Options for Modern Offices
The PDQ SD116 is designed to adapt to your workday. With its multi-mode interior button, you have total control over your space:
- Push Button Locking: Press the inside button to lock the outside lever. Rotating the inside lever or using a key from the outside releases the lock.
- Push and Turn Locking: Pushing and turning the button keeps the outside lever locked even after the door is opened from the inside. The outside lever remains rigid, and access is granted only by key until the interior button is manually returned to the unlocked position.
- Security First: Features a deadlocking (guarded) latchbolt that prevents "shimming" or "loiding" attacks, ensuring your office remains secure.
Technical Specifications
| Feature | Details |
| Model | PDQ SD116 PHL |
| Function | Office / Entry (ANSI F109) |
| Grade | Certified ANSI/BHMA A156.2, Grade 2 |
| Lever Style | Philadelphia (PHL) - Returned to Door |
| Backset | 2-3/4" (Commercial Standard) |
| Strike | 4-7/8" ASA Strike |
| Latch | 1/2" Throw Deadlocking (Guarded) |
| Door Thickness | 1-3/8" to 1-3/4" |
| Chassis | Heavy-Duty Cylindrical, Zinc Dichromated Steel |
Why the PDQ SD Series is the Professional Choice
At DoorwaysPlus.com, we recommend the PDQ SD Series for office complexes, healthcare facilities, and government buildings that require a high-cycle lockset without the Grade 1 price tag.
- Precision Engineering: The cylindrical chassis is constructed of zinc dichromated steel for superior corrosion resistance and internal strength.
- Standard Fit: With a 2-3/4" backset and a 4-7/8" ASA strike, this lockset is a direct replacement for most existing commercial hardware, making retrofitting fast and simple.
- Ergonomic Design: The PHL lever is designed for ease of use, meeting all accessibility requirements while providing a comfortable grip for all users.
| Finish with BHMA code | 626 - US26D Satin Chrome or 613 - US10B Oil Rubbed Bronze or 605 - US3 Polish Brass or 622 - US19 Flat Black |
| Brand | PDQ |
| Standard Cylinders and Keyways | Schlage C Keyway |
| ANSI Cyl Lock Function | F81 - Office Entrance |
| Trim Design | PHL |
| Series | PDQ - SD Series |
| Backset | 2-3/4" Backset |
| Strike Type | 4-7/8 ANSI Strike - Hollow Metal Frames |
