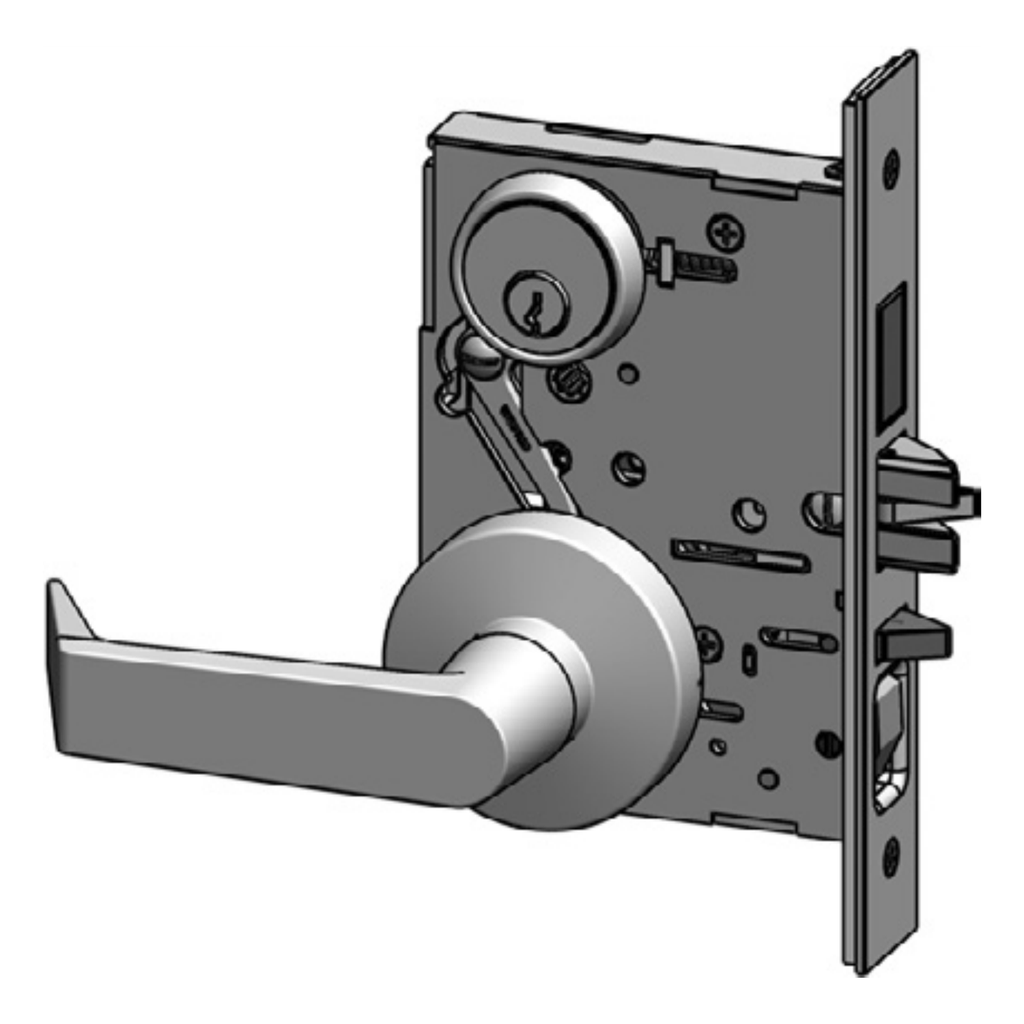

PDQ MR260 PFSF Faculty Restroom with Deadbolt w/Indicator Function Mortise Lockset - Grade 1
The PDQ MR260 PHL (often ordered as PFSF for the Philadelphia lever on an F-Series Sectional (round rose, wrought trim)) is a premier Grade 1 Faculty Restroom with Deadbolt w/Indicator Function Mortise Lockset engineered for demanding commercial environments. While typical commercial locks are rated for one million cycles, the PDQ MR Series is tested to over 11 million cycles -- extending the hardware lifespan by 11 times the industry standard. It suits faculty and single-occupancy restrooms; the inside lever is always free for immediate egress.
Constructed with a heavy-duty 12-gauge cold rolled steel mechanism and a 1-inch throw investment cast stainless steel deadbolt, the MR260 adds a occupancy indicator to the trusted MR function. The Philadelphia (PHL) lever offers a clean, architectural aesthetic in a US32D Satin Stainless finish. Its "return-to-door" design is not only ADA compliant but also prevents clothing, bags, or straps from snagging on the hardware in busy corridors.
Function: Faculty Restroom with Deadbolt w/Indicator
The Faculty Restroom with Deadbolt w/Indicator function retracts the latchbolt by key outside or lever inside, adds a deadbolt (key outside, thumbturn inside), keeps the inside lever always free for egress, and shows a VACANT/OCCUPIED status on the outside:
- Latchbolt retracted by key outside or lever inside.
- Key outside extends/retracts deadbolt.
- Rigid outside lever.
- Thumbturn inside extends/retracts deadbolt.
- Rotating inside lever retracts deadbolt and latchbolt simultaneously.
- Inside lever is always free for immediate egress.
- Indicator, outside -- (VACANT/OCCUPIED).
Finish availability: This indicator function is not offered in 626 (US26D Satin Chrome). The base finish is 630 (US32D Satin Stainless), with premium architectural finishes (605, 606, 612, 613E, 622, 629) also available.
Technical Specifications
| Feature | Details |
| Model | PDQ MR260 PHL (F-Series Sectional) |
| ANSI Function | -- (Faculty Restroom with Deadbolt w/Indicator; no ANSI code) |
| Occupancy Indicator | Outside window -- VACANT / OCCUPIED |
| Deadbolt | 1" Throw Investment Cast Stainless Steel |
| Performance | 11 Million+ Cycles (11x Grade 1 Standard) |
| Chassis Case | 12-Gauge Cold Rolled Steel (Dichromated) |
| Lever Style | Philadelphia (PHL) - Forged Brass Base |
| Cylinder | Schlage C (SCC) compatible; IC core options |
| Latchbolt | 3/4" Throw Stainless Steel, Anti-friction |
| Base Finish | 630 (US32D Satin Stainless) -- 626 not available |
| Handing | Field Reversible (Specify for Strike) |
| Certifications | UL10C 3-Hour Fire Rated; HVHZ Hurricane Approved |
| Warranty | Lifetime Limited Warranty |
Engineered Solutions for Commercial Security
The PDQ MR Series addresses the specific technical and safety challenges of modern facilities:
- Occupancy Indicator: The outside indicator window reads VACANT / OCCUPIED, which reduces accidental openings on restrooms, locker rooms, and single-occupancy spaces.
- Vandal-Resistant Spindle: The "weakened spindle" design is a critical security solution. If the exterior lever is subjected to extreme torque or a hammer attack, the spindle breaks cleanly to prevent damage to the internal 12-gauge steel case, keeping the lock secure.
- Extreme Weather Durability: Certified for High Velocity Hurricane Zones (HVHZ) with a design load rating of +/- 70.0 PSF, this lockset provides the structural integrity necessary for coastal buildings.
- Simplified Key Management: Provided with a Schlage C (SCC) compatible cylinder, the MR260 integrates easily into existing master key systems. It also supports Interchangeable Core (IC) options for rapid re-keying.
- Fire Safety Compliance: With a UL 3-hour fire rating, this lockset ensures that commercial doors remain a reliable fire and smoke barrier, protecting occupants and property.
| Finish with BHMA code | 630 - US32D Satin Stainless or 613E - US10BE Oil Rubbed Bronze Equal or 605 - US3 Polish Brass or 606 - US4 Satin Brass or 612 - US10 Satin Bronze or 622 - US19 Flat Black or 629 - US32 Polish Stainless |
| Brand | PDQ |
| ANSI Mortise Lock Function | Faculty Restroom w/Deadbolt w/Indicator |
| Trim Design | PFSF |
| Series | PDQ - MR Series |
| Strike Type | 4-7/8 ANSI Strike - Hollow Metal Frames |
| Standard Cylinders and Keyways | Schlage C Keyway |
