PDQ MR232 PFSF Privacy Single Cylinder Deadbolt w/Indicator Function Mortise Deadbolt - Grade 1
The PDQ MR232 is a Grade 1 Privacy Single Cylinder Deadbolt w/Indicator Function mortise deadlock for the PDQ MR Series. It is a deadbolt-only device -- there is no latchbolt and no operating lever. It provides a single-cylinder privacy deadbolt with an occupancy indicator for restrooms and private rooms.
The MR Series deadbolt is a 1-inch throw investment cast stainless steel bolt in a heavy-duty 12-gauge cold rolled steel case, finished in US32D Satin Stainless.
Function: Privacy Single Cylinder Deadbolt w/Indicator

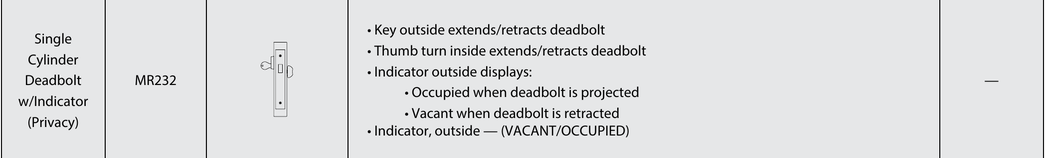

The Privacy Single Cylinder Deadbolt w/Indicator function throws a deadbolt by key outside and thumbturn inside, and shows a VACANT/OCCUPIED status on the outside:
- Key outside extends/retracts deadbolt.
- Thumb turn inside extends/retracts deadbolt.
- Indicator outside displays:.
- -- Occupied when deadbolt is projected.
- -- Vacant when deadbolt is retracted.
- Indicator, outside -- (VACANT/OCCUPIED).
Finish availability: This indicator function is not offered in 626 (US26D Satin Chrome). The base finish is 630 (US32D Satin Stainless), with premium architectural finishes (605, 606, 612, 613E, 622, 629) also available.
Technical Specifications
| Feature | Details |
| Model | PDQ MR232 (F-Series Sectional deadlock trim) |
| Device Type | Mortise Deadlock -- deadbolt only, no latchbolt/lever |
| Occupancy Indicator | Outside window -- VACANT / OCCUPIED |
| Deadbolt | 1" Throw Investment Cast Stainless Steel |
| Chassis Case | 12-Gauge Cold Rolled Steel (Dichromated) |
| Cylinder | Single Cylinder -- Schlage C (SCC) compatible; IC core options |
| Base Finish | 630 (US32D Satin Stainless) -- 626 not available |
| Handing | Field Reversible (Specify for Strike) |
| Certifications | UL10C 3-Hour Fire Rated; HVHZ Hurricane Approved |
| Warranty | Lifetime Limited Warranty |
Why the PDQ MR Series Indicator Deadbolt
- Occupancy Indicator: The outside indicator window reads VACANT / OCCUPIED, which reduces accidental openings on restrooms, locker rooms, and single-occupancy spaces.
- Solid Security Bolt: A 1-inch throw investment-cast stainless steel deadbolt in a 12-gauge steel case.
- Fire & Weather Rated: UL10C 3-hour fire rating and HVHZ hurricane approval, consistent with the MR Series.
| Finish with BHMA code | 630 - US32D Satin Stainless or 613E - US10BE Oil Rubbed Bronze Equal or 605 - US3 Polish Brass or 606 - US4 Satin Brass or 612 - US10 Satin Bronze or 622 - US19 Flat Black or 629 - US32 Polish Stainless |
| Brand | PDQ |
| ANSI Mortise Lock Function | Privacy Single Cylinder Deadbolt w/Indicator |
| Trim Design | BFSF |
| Series | PDQ - MR Series |
| Strike Type | 4-7/8 ANSI Strike - Hollow Metal Frames |
| Standard Cylinders and Keyways | Schlage C Keyway |
