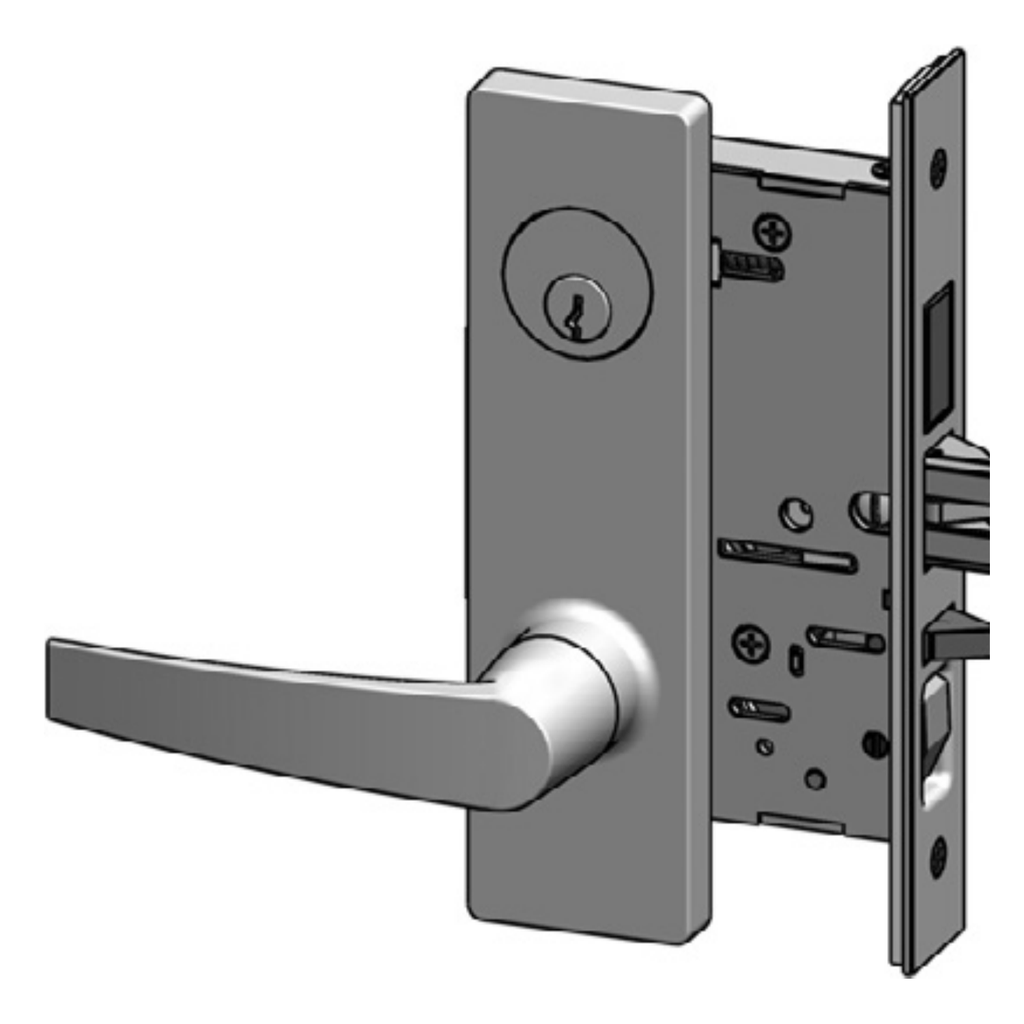

PDQ MR200 MFEF Electrified Institutional Function Mortise Lockset - Grade 1
The PDQ MR200 MIA (often ordered as MFEF for the Miami lever on a forged F-Series escutcheon) is a premier Grade 1 Electrified Institutional Function Mortise Lockset engineered for demanding commercial environments. While typical commercial locks are rated for one million cycles, the PDQ MR Series mechanical chassis is tested to over 11 million cycles -- extending the hardware lifespan by 11 times the industry standard. This motor-driven electrified mortise lockset is built for institutional and secure openings that require key control from both sides, and integrates with building access-control systems and power supplies.
Constructed with a heavy-duty 12-gauge cold rolled steel mechanism, the MR200 provides a formidable defense against unauthorized entry. The Miami (MIA) lever offers a clean, architectural aesthetic in a US26D Satin Chrome finish. Its "return-to-door" design is not only ADA compliant but also serves as a safety solution by preventing clothing, bags, or straps from snagging on the hardware in busy corridors.
Function: Electrified Institutional (Electrified, no ANSI code)
The Electrified Institutional function controls the latchbolt by key from both the outside and the inside, with the trim electrically locked or unlocked by a motor drive (fail secure by default, field changeable to fail safe):
- Key outside retracts latchbolt.
- Key inside retracts latchbolt.
- Auxiliary latch deadlocks latchbolt.
- Fail safe -- latchbolt operated by either lever when electrically locked.
- Fail secure -- latchbolt operated by either lever when electrically unlocked.
- Motor drive locking/unlocking.
- Not field reversible.
- Specify handing.
- Available with option: REX - Request to Exit.
Electrical Specifications
The MR200 is a MOTOR-DRIVEN electrified mortise lock (not solenoid). The motor drive is factory tested to over 1.4 million electrical cycles (nearly 3x the ANSI/BHMA Grade 1 standard). The SMARTSENSE control board automatically accepts AC or DC input voltage.
- Fail Secure (Factory Default): Outside trim is UNLOCKED when power is ON and LOCKED when power is OFF; the lockset locks in the event of a power failure.
- Fail Safe (Field Changeable): Outside trim is LOCKED when power is ON and UNLOCKED when power is OFF; the lockset unlocks in the event of a power failure. Field changeable from Fail Secure to Fail Safe.
- Input Voltage: 12-24VDC or 12-24VAC (60Hz).
- Max Inrush Current: 1.0A.
- Standby Current: 12VDC 3mA / 24VDC 5mA / 12VAC 12mA / 24VAC 10mA.
- Operating Voltage Tolerance: +/-10% of rated voltage.
- Options: Request to Exit (REX) and Latch Bolt Monitor (LM) available.
- Recommended Power Supply: PS220 (110-120VAC 60Hz input; 24VDC 2A filtered/regulated output).
Warranty: Electric components carry a 2-Year warranty; the mechanical mortise chassis carries the MR Series Limited Lifetime warranty.
Technical Specifications
| Feature | Details |
| Model | PDQ MR200 MIA (F-Series Escutcheon) |
| Function | Electrified Institutional (Motor Drive) -- no ANSI code |
| Electrification | Motor Drive; Fail Secure (default), field changeable to Fail Safe |
| Input Voltage | 12-24VDC or 12-24VAC (60Hz); max inrush 1.0A |
| Mechanical Performance | 11 Million+ Cycles (mechanical chassis) |
| Electrical Performance | Motor drive tested to 1.4 Million+ Cycles |
| Chassis Case | 12-Gauge Cold Rolled Steel (Dichromated) |
| Lever Style | Miami (MIA) - Forged Brass Base |
| Latchbolt | 3/4" Throw Stainless Steel, Anti-friction |
| Handing | Not Field Reversible -- specify LH (LHR) or RH (RHR) when ordering |
| Certifications | UL10C 3-Hour Fire Rated; HVHZ Hurricane Approved |
| Warranty | Limited Lifetime (mechanical); 2-Year (electric components) |
Engineered Solutions for Commercial Security
The PDQ MR Series addresses the specific technical and safety challenges of modern facilities:
- Vandal-Resistant Spindle: The "weakened spindle" design is a critical security solution. If the exterior lever is subjected to extreme torque or a hammer attack, the spindle breaks cleanly to prevent damage to the internal 12-gauge steel case, keeping the lock secure.
- Extreme Weather Durability: Certified for High Velocity Hurricane Zones (HVHZ) with a design load rating of +/- 70.0 PSF, this lockset provides the structural integrity necessary for coastal buildings.
- Anti-Sag Lever Technology: The MR Series utilizes independent, high-tension spring cartridges to ensure the Miami lever remains perfectly level throughout its multi-million cycle life.
- Simplified Key Management: Provided with a Schlage C (SCC) compatible cylinder, the MR200 integrates easily into existing master key systems. It also supports Interchangeable Core (IC) options for rapid re-keying.
- Fire Safety Compliance: With a UL 3-hour fire rating, this lockset ensures that commercial doors remain a reliable fire and smoke barrier, protecting occupants and property.
Handing: This mortise lockset is Not Field Reversible. Specify the door hand when ordering -- LH (LHR) or RH (RHR). Refer to the diagram above to determine the hand of your door.
| Finish with BHMA code | 626 - US26D Satin Chrome or 630 - US32D Satin Stainless or 613E - US10BE Oil Rubbed Bronze Equal or 605 - US3 Polish Brass or 606 - US4 Satin Brass or 612 - US10 Satin Bronze or 622 - US19 Flat Black or 629 - US32 Polish Stainless |
| Door Handing | LH or RH |
| Brand | PDQ |
| ANSI Mortise Lock Function | Electrified Institutional |
| Trim Design | MFEF |
| Series | PDQ - MR Series |
| Strike Type | 4-7/8 ANSI Strike - Hollow Metal Frames |
| Standard Cylinders and Keyways | Schlage C Keyway |
