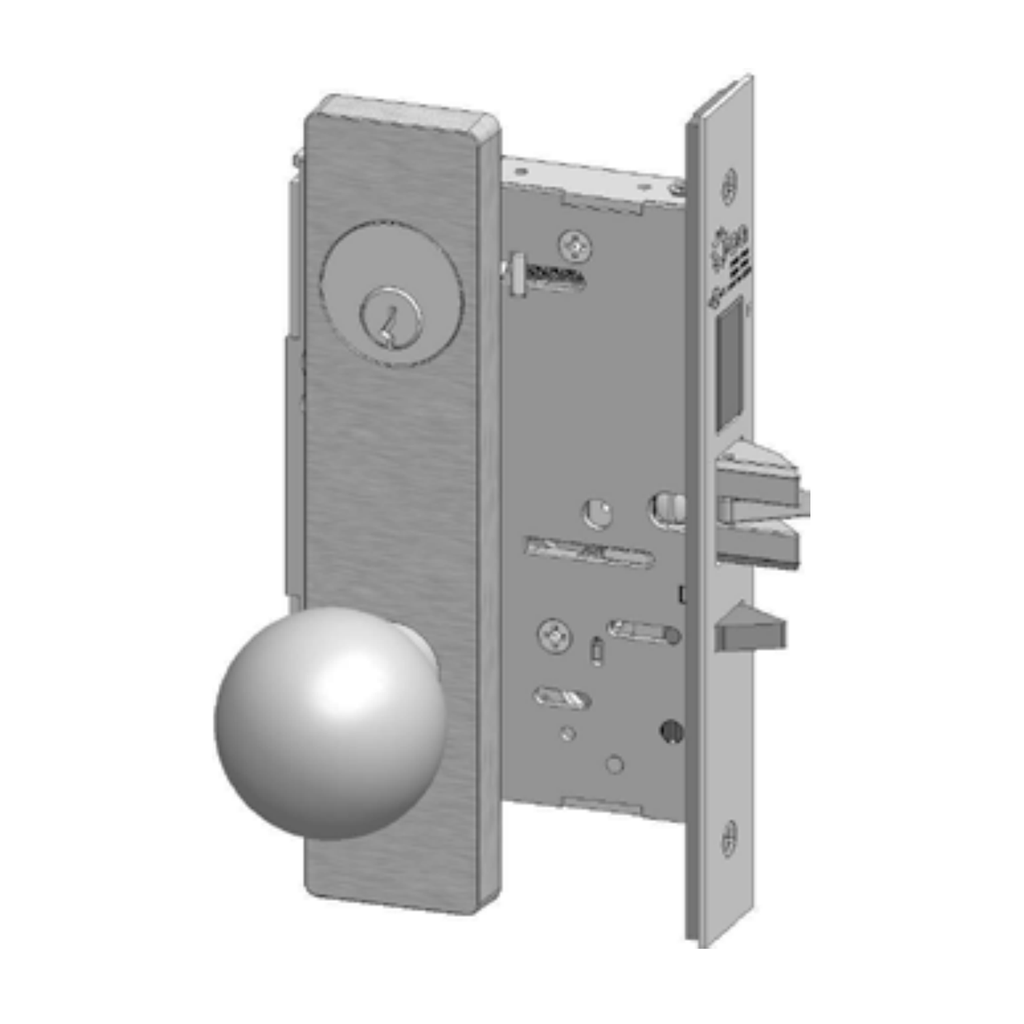

PDQ MR179 KJEJ Grade 1 Privacy with Deadbolt and Egress Function Mortise Lock - Heavy Duty
The PDQ MR179 KJEJ is an architectural-grade, Grade 1 Privacy with Deadbolt and Egress Function Mortise Lock for high-traffic commercial environments. It pairs the Ball Knob (KJ) knob -- a rounded ball knob -- on a J-Series Escutcheon in a US32D (630) Satin Stainless finish, and is engineered to exceed the rigorous standards of BHMA Series 1000. It suits restrooms and private rooms that need a deadbolt for privacy plus single-motion egress, with an emergency coin-turn release on the outside.
Built to withstand punishing institutional use, the MR Series uses a heavy-duty forged brass and stainless steel internal mechanism and a 1-inch throw investment cast stainless steel deadbolt inside a deep mortise cassette -- providing significantly higher forced-entry protection than standard cylindrical locks, the industry standard for schools, hospitals, and government offices.
ANSI Function F19: Privacy with Deadbolt and Egress
The Privacy with Deadbolt and Egress function operates the latchbolt from either lever, adds a deadbolt thrown by an interior thumbturn with an outside emergency coin-turn release, and retracts both latch and deadbolt from the inside lever in a single motion:
- Latchbolt operated by lever from either side.
- Emergency coin turn outside retracts deadbolt.
- Thumbturn inside extends/retracts deadbolt.
- Inside lever simultaneously retracts latchbolt and deadbolt.
Technical Specifications
| Feature | Details |
| Model | PDQ MR179 KJEJ (J-Series Escutcheon) |
| ANSI Function | F19 (Privacy with Deadbolt and Egress) |
| ANSI/BHMA Grade | Grade 1 (Exceeds 1,000,000 Cycles) |
| Knob Design | Ball Knob (KJ) |
| Trim / Mounting | J-Series Escutcheon (escutcheon) |
| Base Finish | US32D (630) Satin Stainless -- 626 not offered (J-Series) |
| Chassis | Heavy Gauge Steel, Zinc Dichromate Plated |
| Latch Bolt | 3/4" Throw, Stainless Steel, Anti-Friction |
| Deadbolt | 1" Throw Investment Cast Stainless Steel |
| Privacy Release | Interior Thumbturn (Deadbolt); Emergency Coin-Turn Release (Outside) |
| Door Thickness | 1-3/4" Standard |
| Handing | Field Reversible (non-handed) |
| Warranty | Lifetime Limited Warranty |
High-Performance Solutions for Building Security
The PDQ MR Series Mortise Lock addresses the most demanding commercial infrastructure challenges:
- Maximum Forced Entry Resistance: The steel cassette fits deep into the door pocket, providing superior resistance against "kick-in" attacks and physical tampering versus single-point cylindrical locks.
- Privacy, Deadbolt & Single-Motion Egress: An interior thumbturn throws the deadbolt for privacy, an outside emergency coin-turn retracts it, and a single motion of the inside lever retracts both the latch and the deadbolt for immediate egress.
- Vandal-Resistant Engineering: The trim features a break-away spindle design; extreme torque or a hammer attack breaks the spindle without compromising the internal locking mechanism.
- Architectural Integration: The Satin Stainless (US32D) base finish offers a clean, professional appearance and excellent corrosion resistance; premium finishes (605, 606, 612, 613E, 622, 629) are also available.
Finish availability: This J-Series lockset is offered in 630 (US32D Satin Stainless) as the base finish, plus premium architectural finishes 605, 606, 612, 613E, 622, 629. It is not offered in 626 (626 is an F-Series finish).
*Ball knobs are not ADA compliant. The KJ ball knob does not meet ADA/ICC A117.1 operable-hardware requirements (no tight grasping/pinching/twisting). For ADA-governed openings, specify a lever trim.
| Finish with BHMA code | 630 - US32D Satin Stainless or 613E - US10BE Oil Rubbed Bronze Equal or 605 - US3 Polish Brass or 606 - US4 Satin Brass or 612 - US10 Satin Bronze or 622 - US19 Flat Black or 629 - US32 Polish Stainless |
| Rose / Escutcheon Style | Standard Escutcheon - EJ or Wide Escutcheon - EW |
| Brand | PDQ |
| ANSI Mortise Lock Function | F19 - Privacy with Deadbolt and Egress |
| Trim Design | KJEJ |
| Series | PDQ - MR Series |
| Strike Type | 4-7/8 ANSI Strike - Hollow Metal Frames |
