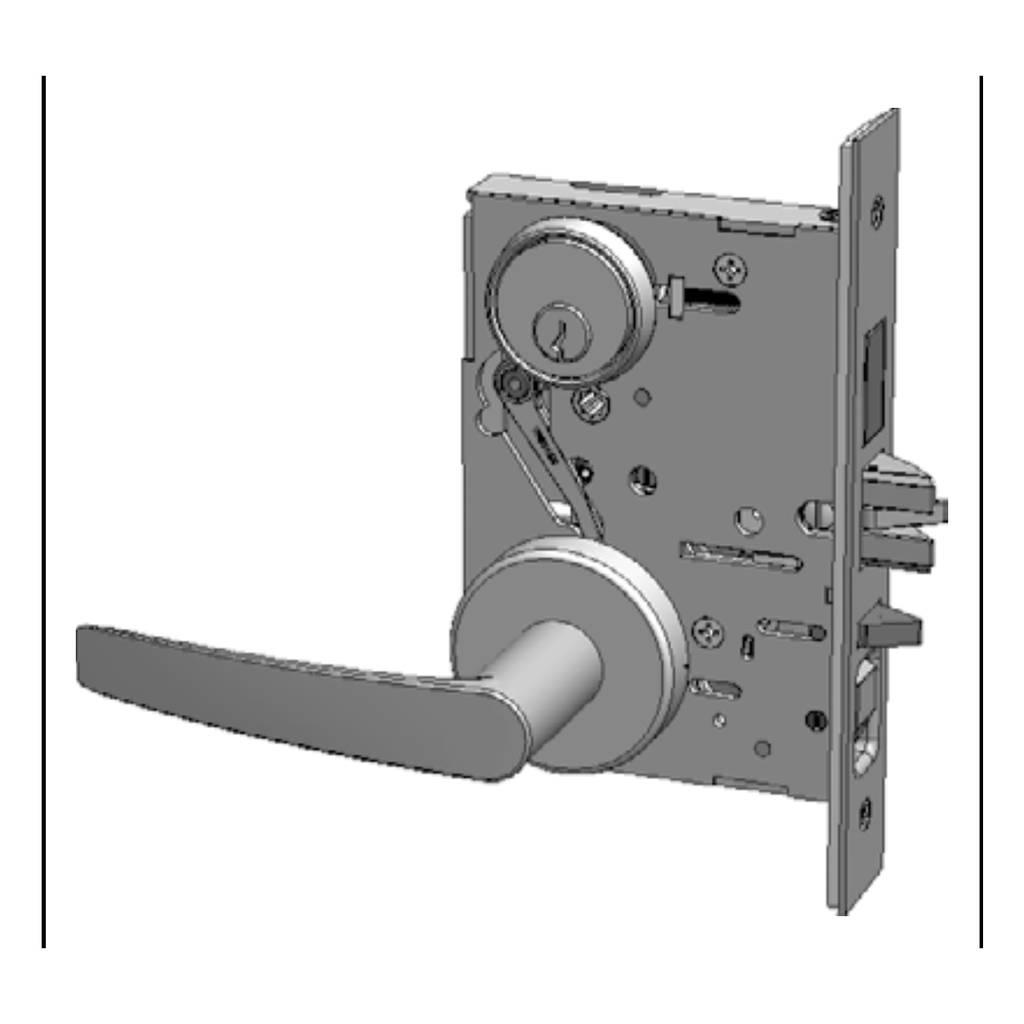

PDQ MR162 MJSJ Grade 1 Apartment/Corridor Mortise Lock - Keyed Deadbolt Security
The PDQ MR162 MJSJ is an architectural-grade, Grade 1 Apartment/Corridor Mortise Lock for demanding, high-traffic commercial and institutional openings. It pairs the Miami (MJ) lever -- a gently curved lever with a rounded tip -- on a J-Series Sectional (round rose) in a US32D (630) Satin Stainless finish, and is engineered to exceed the rigorous standards of BHMA Series 1000. It is a versatile solution for apartment-entry and corridor doors where key-controlled deadbolt security, a toggle-lockable outside lever, and single-motion egress are all required. Its "return-to-door" design is ADA compliant and helps prevent clothing, bags, or straps from snagging on the hardware in busy corridors.
Built to withstand punishing institutional use, the MR Series drives a 1" throw investment-cast stainless steel deadbolt and a 3/4" anti-friction stainless latchbolt from a heavy-gauge steel case seated deep in the door pocket -- providing significantly higher forced-entry protection than standard cylindrical locks, the industry standard for schools, hospitals, and government offices.
ANSI Function F20: Apartment / Corridor Security
The ANSI F20 Apartment/Corridor Function pairs a latchbolt with a keyed deadbolt and a lockable outside lever, with single-motion egress from the inside:
- Latchbolt operated by lever from either side.
- Toggle locks/unlocks outside lever.
- Key outside retracts latchbolt.
- Key outside extends/retracts deadbolt.
- Thumbturn inside extends/retracts deadbolt.
- Inside lever simultaneously retracts latchbolt and deadbolt.
- Auxiliary latch deadlocks latchbolt.
Technical Specifications
| Feature | Details |
| Model | PDQ MR162 MJSJ (J-Series Sectional (round rose)) |
| ANSI Function | F20 (Apartment/Corridor) |
| ANSI/BHMA Grade | Grade 1 (Exceeds 1,000,000 Cycles) |
| Lever Design | Miami (MJ) |
| Trim / Mounting | J-Series Sectional (round rose) (round rose) |
| Base Finish | US32D (630) Satin Stainless -- 626 not offered (J-Series) |
| Chassis | Heavy Gauge Steel, Zinc Dichromate Plated |
| Latch Bolt | 3/4" Throw, Stainless Steel, Anti-Friction |
| Deadbolt | 1" Throw, Investment Cast Stainless Steel |
| Cylinder | Schlage C (SCC) Keyway; Interchangeable Core (IC) options |
| Door Thickness | 1-3/4" Standard |
| Handing | Field Reversible (non-handed) |
| Warranty | Lifetime Limited Warranty |
High-Performance Solutions for Building Security
The PDQ MR Series Mortise Lock addresses the most demanding commercial infrastructure challenges:
- Maximum Forced Entry Resistance: The steel case fits deep into the door pocket, providing superior resistance against "kick-in" attacks and physical tampering versus single-point cylindrical locks.
- Keyed Deadbolt Security: A 1" throw investment-cast stainless steel deadbolt, keyed to the exterior, adds a dedicated second point of security beyond the latchbolt.
- Simplified Key Management: Provided with a Schlage C (SCC) compatible cylinder, the MR162 integrates easily into existing master key systems and supports Interchangeable Core (IC) for rapid re-keying.
- Anti-Sag Lever Technology: The Miami lever is supported by an independent, high-tension spring cartridge that returns the handle to a level horizontal position every time.
- Vandal-Resistant Engineering: The trim features a break-away spindle design; extreme torque or a hammer attack breaks the spindle without compromising the internal locking mechanism.
- Architectural Integration: The Satin Stainless (US32D) base finish offers a clean, professional appearance and excellent corrosion resistance; premium finishes (605, 606, 612, 613E, 622, 629) are also available.
Finish availability: This J-Series lockset is offered in 630 (US32D Satin Stainless) as the base finish, plus premium architectural finishes 605, 606, 612, 613E, 622, 629. It is not offered in 626 (626 is an F-Series finish).
| Finish with BHMA code | 630 - US32D Satin Stainless or 613E - US10BE Oil Rubbed Bronze Equal or 605 - US3 Polish Brass or 606 - US4 Satin Brass or 612 - US10 Satin Bronze or 622 - US19 Flat Black or 629 - US32 Polish Stainless |
| Rose / Escutcheon Style | Round Rose - SJ or Square Rose - SR |
| Brand | PDQ |
| ANSI Mortise Lock Function | F20 - Apartment |
| Trim Design | MJSJ |
| Series | PDQ - MR Series |
| Strike Type | 4-7/8 ANSI Strike - Hollow Metal Frames |
| Standard Cylinders and Keyways | Schlage C Keyway |
