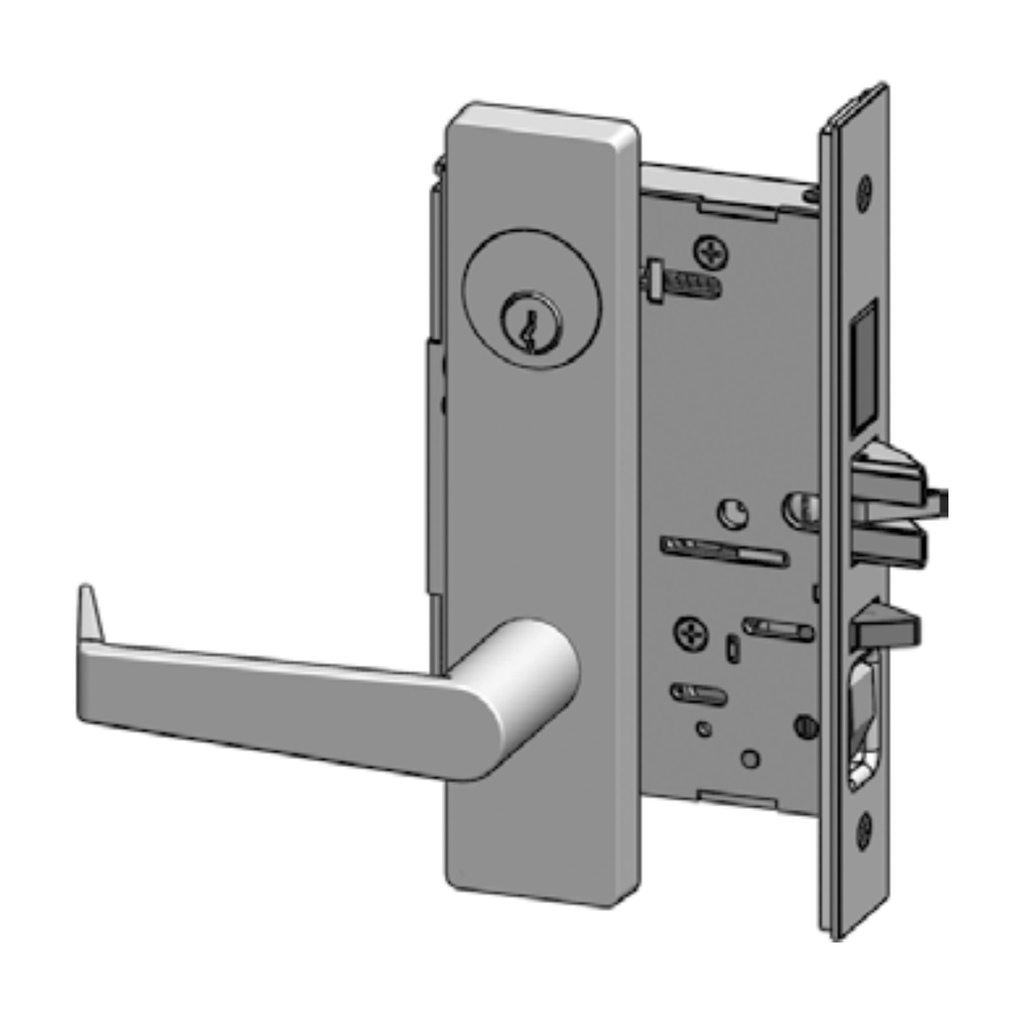

PDQ MR157 PJEJ Grade 1 Intruder Deadbolt with Deadlatch Function Mortise Lock - Heavy Duty
The PDQ MR157 PJEJ is an architectural-grade, Grade 1 Intruder Deadbolt with Deadlatch Function Mortise Lock for high-traffic commercial environments. It pairs the Philadelphia (PJ) lever -- a clean, straight architectural lever that returns toward the door -- on a J-Series Escutcheon in a US32D (630) Satin Stainless finish, and is engineered to exceed the rigorous standards of BHMA Series 1000. It suits classroom-intruder and lockdown openings where a key from either side throws a deadbolt that also locks the latchbolt and outside lever, while the inside lever always allows single-motion egress. Its "return-to-door" design is ADA compliant and helps prevent clothing, bags, or straps from snagging on the hardware in busy corridors.
Built to withstand punishing institutional use, the MR Series uses a heavy-duty forged brass and stainless steel internal mechanism and a 1-inch throw investment cast stainless steel deadbolt inside a deep mortise cassette -- providing significantly higher forced-entry protection than standard cylindrical locks, the industry standard for schools, hospitals, and government offices.
ANSI Function F34: Intruder Deadbolt with Deadlatch
The Intruder function throws a deadbolt by key from either side that locks the latchbolt and outside lever, while the inside lever simultaneously retracts latch and deadbolt for egress:
- Latchbolt operated by lever from either side.
- Key outside extends/retracts deadbolt.
- Key inside extends/retracts deadbolt.
- Extending deadbolt locks latchbolt and outside lever.
- Inside lever simultaneously retracts latchbolt and deadbolt.
- Auxiliary latch deadlocks latchbolt.
Technical Specifications
| Feature | Details |
| Model | PDQ MR157 PJEJ (J-Series Escutcheon) |
| ANSI Function | F34 (Intruder Deadbolt with Deadlatch) |
| ANSI/BHMA Grade | Grade 1 (Exceeds 1,000,000 Cycles) |
| Lever Design | Philadelphia (PJ) |
| Trim / Mounting | J-Series Escutcheon (escutcheon) |
| Base Finish | US32D (630) Satin Stainless -- 626 not offered (J-Series) |
| Chassis | Heavy Gauge Steel, Zinc Dichromate Plated |
| Latch Bolt | 3/4" Throw, Stainless Steel, Anti-Friction |
| Deadbolt | 1" Throw Investment Cast Stainless Steel |
| Cylinder | Schlage C (SCC) Keyway; Interchangeable Core (IC) options |
| Door Thickness | 1-3/4" Standard |
| Handing | Field Reversible (non-handed) |
| Warranty | Lifetime Limited Warranty |
High-Performance Solutions for Building Security
The PDQ MR Series Mortise Lock addresses the most demanding commercial infrastructure challenges:
- Maximum Forced Entry Resistance: The steel cassette fits deep into the door pocket, providing superior resistance against "kick-in" attacks and physical tampering versus single-point cylindrical locks.
- Positive Deadlocking: The auxiliary deadlatch engages when the door closes, preventing "loiding" or shim attacks against the latch bolt.
- Simplified Key Management: Provided with a Schlage C (SCC) compatible cylinder, the MR157 integrates easily into existing master key systems and supports Interchangeable Core (IC) for rapid re-keying.
- Anti-Sag Lever Technology: The Philadelphia lever is supported by an independent, high-tension spring cartridge that returns the handle to a level horizontal position every time.
- Vandal-Resistant Engineering: The trim features a break-away spindle design; extreme torque or a hammer attack breaks the spindle without compromising the internal locking mechanism.
- Architectural Integration: The Satin Stainless (US32D) base finish offers a clean, professional appearance and excellent corrosion resistance; premium finishes (605, 606, 612, 613E, 622, 629) are also available.
Finish availability: This J-Series lockset is offered in 630 (US32D Satin Stainless) as the base finish, plus premium architectural finishes 605, 606, 612, 613E, 622, 629. It is not offered in 626 (626 is an F-Series finish).
| Finish with BHMA code | 630 - US32D Satin Stainless or 613E - US10BE Oil Rubbed Bronze Equal or 605 - US3 Polish Brass or 606 - US4 Satin Brass or 612 - US10 Satin Bronze or 622 - US19 Flat Black or 629 - US32 Polish Stainless |
| Rose / Escutcheon Style | Standard Escutcheon - EJ or Wide Escutcheon - EW |
| Brand | PDQ |
| ANSI Mortise Lock Function | F34 - Intruder Deadbolt with Deadlatch |
| Trim Design | PJEJ |
| Series | PDQ - MR Series |
| Strike Type | 4-7/8 ANSI Strike - Hollow Metal Frames |
| Standard Cylinders and Keyways | Schlage C Keyway |
