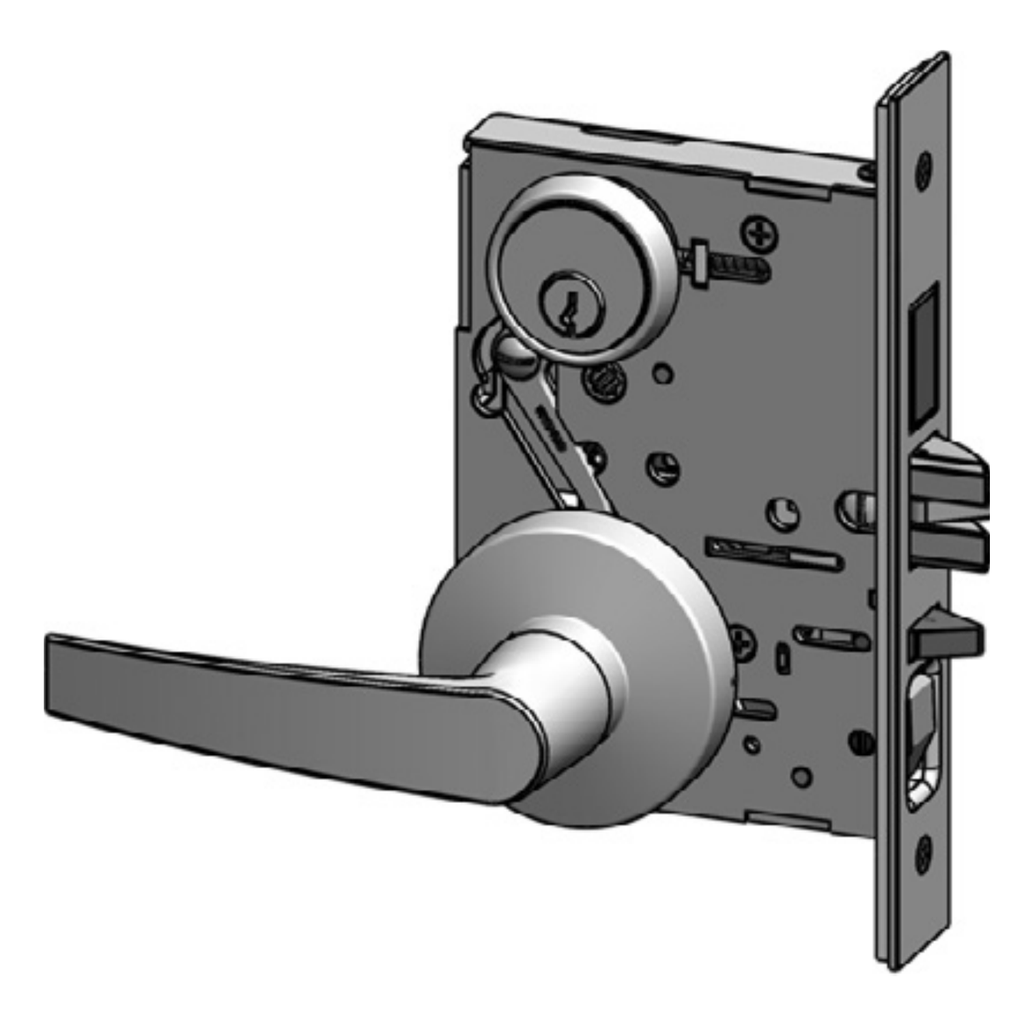

PDQ MR117 MFSF Front Door Function Mortise Lockset - Grade 1
The PDQ MR117 MIA (often ordered as MFSF for the Miami lever on an F-Series Sectional (round rose, wrought trim)) is a premier Grade 1 Front Door Function Mortise Lockset engineered for demanding commercial environments. While typical commercial locks are rated for one million cycles, the PDQ MR Series is tested to over 11 million cycles -- extending the hardware lifespan by 11 times the industry standard. This lockset is a reliable solution for main building entrances and front doors where a keyed deadbolt and a toggle-lockable exterior lever provide layered after-hours security.
Constructed with a heavy-duty 12-gauge cold rolled steel mechanism and a 1-inch throw investment cast stainless steel deadbolt, the MR117 provides a formidable defense against unauthorized entry. The Miami (MIA) lever offers a clean, architectural aesthetic in a US26D Satin Chrome finish. Its "return-to-door" design is not only ADA compliant but also serves as a safety solution by preventing clothing, bags, or straps from snagging on the hardware in busy corridors.
ANSI Function F08/F10: Front Door
The Front Door function operates the latchbolt from either side, adds a toggle that locks or unlocks the exterior lever, and provides a separately keyed deadbolt:
- Latchbolt operated by lever from either side.
- Toggle locks/unlocks outside lever.
- Key outside retracts latchbolt.
- Key outside extends/retracts deadbolt.
- Thumbturn inside extends/retracts deadbolt.
Technical Specifications
| Feature | Details |
| Model | PDQ MR117 MIA (F-Series Sectional) |
| ANSI Function | F08/F10 (Front Door) |
| Performance | 11 Million+ Cycles (11x Grade 1 Standard) |
| Chassis Case | 12-Gauge Cold Rolled Steel (Dichromated) |
| Lever Style | Miami (MIA) - Forged Brass Base |
| Deadbolt | 1" Throw Investment Cast Stainless Steel |
| Latchbolt | 3/4" Throw Stainless Steel, Anti-friction |
| Handing | Field Reversible (Specify for Strike) |
| Certifications | UL10C 3-Hour Fire Rated; HVHZ Hurricane Approved |
| Warranty | Lifetime Limited Warranty |
Engineered Solutions for Commercial Security
The PDQ MR Series addresses the specific technical and safety challenges of modern facilities:
- Vandal-Resistant Spindle: The "weakened spindle" design is a critical security solution. If the exterior lever is subjected to extreme torque or a hammer attack, the spindle breaks cleanly to prevent damage to the internal 12-gauge steel case, keeping the lock secure.
- Extreme Weather Durability: Certified for High Velocity Hurricane Zones (HVHZ) with a design load rating of +/- 70.0 PSF, this lockset provides the structural integrity necessary for coastal buildings.
- Anti-Sag Lever Technology: The MR Series utilizes independent, high-tension spring cartridges to ensure the Miami lever remains perfectly level throughout its multi-million cycle life.
- Simplified Key Management: Provided with a Schlage C (SCC) compatible cylinder, the MR117 integrates easily into existing master key systems. It also supports Interchangeable Core (IC) options for rapid re-keying.
- Fire Safety Compliance: With a UL 3-hour fire rating, this lockset ensures that commercial doors remain a reliable fire and smoke barrier, protecting occupants and property.
| Finish with BHMA code | 626 - US26D Satin Chrome or 630 - US32D Satin Stainless or 613E - US10BE Oil Rubbed Bronze Equal or 605 - US3 Polish Brass or 606 - US4 Satin Brass or 612 - US10 Satin Bronze or 622 - US19 Flat Black or 629 - US32 Polish Stainless |
| Brand | PDQ |
| ANSI Mortise Lock Function | F08 - Front Door or Apartment Corridor Door |
| Trim Design | MFSF |
| Series | PDQ - MR Series |
| Strike Type | 4-7/8 ANSI Strike - Hollow Metal Frames |
| Standard Cylinders and Keyways | Schlage C Keyway |
