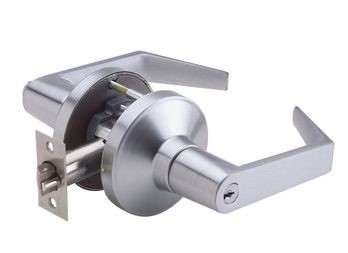

PDQ GP116 PHL Office Entry Function Cylindrical Lockset
Function Information:
- Latchbolt operated by lever from either side or key in outside lever Outside lever locked by push/turn button on inside
- When outside lever is locked by push button on inside – key from outside, or rotating inside lever unlocks outside lever
- When outside lever is locked by pushing and turning the button on the inside, key from outside or rotating inside lever retracts latch but does not unlock outside lever
- Deadlocking (guarded) latchbolt
- ANSI F109
The PDQ GP116 PHL is an elite Grade 2 Cylindrical Lockset designed for high-traffic commercial office spaces that demand both flexibility and superior strength. Featuring the sleek, solid zinc-diecast Philadelphia (PHL) lever, the GP Series is engineered to exceed standard Grade 2 expectations, offering an incredible 1600 in-lbs of torque resistance.
As an Office Entry Function (ANSI F109) lock, the GP116 provides sophisticated control over your workspace. The interior push/turn button allows you to toggle between a "passage" mode for business hours and a "secured" mode for privacy, while the deadlocking guarded latchbolt ensures the door cannot be shimmed or tampered with when locked.
Heavy-Duty Performance & Windstorm Certification
Unlike standard commercial locks, the PDQ GP Series is a Windstorm Resistant Product, listed to withstand design loads of 685 lbf and outswing impacts of 350 ft-lbs. This makes it the ideal choice for coastal regions or high-security interior corridors. Assembled in the U.S.A., it fully meets the requirements of the Buy American Act, making it a go-to for government and municipal contracts.
Technical Specifications
| Feature | Details |
| Model | PDQ GP116 PHL |
| Function | Office / Entry (ANSI F109) |
| Backset | 2-3/4" Standard (2-3/8" or 5" Optional) |
| Strike | 4-7/8" x 1-1/4" ASA Strike |
| Fire Rating | UL/cUL Listed "A" Label (3 Hour) |
| Lever Style | Philadelphia (PHL) Solid Zinc Diecast |
| Chassis | Zinc diecast and stainless steel mechanism |
| Warranty | 8-Year Limited Warranty |
| Compliance | ADA, Buy American Act, Windstorm Resistant |
Versatile Locking Logic
The PDQ GP116 adapts to the specific needs of your facility with its multi-functional interior button:
- Push Button Mode: Press the inside button to lock the outside lever. Rotating the inside lever or using a key from the outside automatically unlocks the unit.
- Push and Turn Mode: Pushing and turning the button keeps the outside lever locked even after exit. Entry is restricted to key-only access until the button is manually released.
- Standard Fit: Designed for standard 161 door prep with through-door thru-bolting to prevent the lock from twisting or loosening over time.
Ordering Note: While US26D (Satin Chrome) is typically available for immediate shipment, please allow for a 3-5 day lead time (plus shipping) for all other architectural finishes.
| Finish with BHMA code | 626 - US26D Satin Chrome or 613 - US10B Oil Rubbed Bronze or 605 - US3 Polish Brass or 606 - US4 Satin Brass or 612 - US10 Satin Bronze or 625 - US26 Polish Chrome |
| Brand | PDQ |
| Standard Cylinders and Keyways | Schlage C Keyway |
| ANSI Cyl Lock Function | F81 - Office Entrance |
| Trim Design | PHL |
| Series | PDQ - GP Series |
| Backset | 2-3/4" Backset |
| Strike Type | 4-7/8 ANSI Strike - Hollow Metal Frames |
