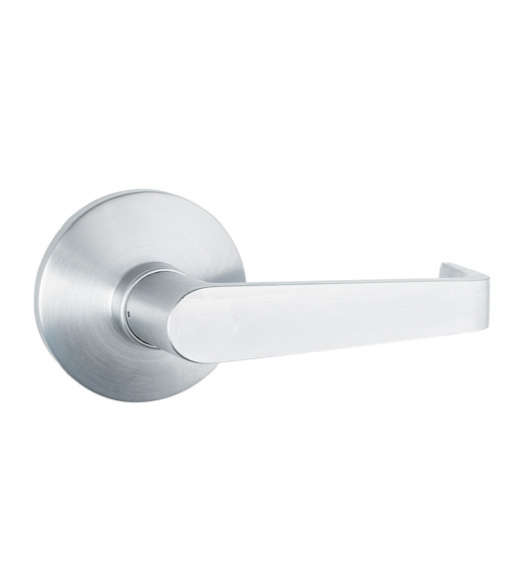

PDQ 4SH14 PHL Heavy Duty Passage Exit Device Trim - Philadelphia Lever ANSI 14

The PDQ 4SH14 PHL (formerly 429 LPSH) is an architectural-grade, extra heavy-duty passage lever trim designed for high-traffic commercial openings where security is not required, but durability is mandatory. Featuring the modern, return-to-door Philadelphia (PHL) lever design, this trim provides a sleek and ergonomic solution for interior office doors, connecting corridors, and common areas in schools, hospitals, and government buildings. Engineered as part of the 4200 Series, the 4SH14 is built to withstand the constant "push-pull" cycles of a busy facility while maintaining its horizontal alignment and structural integrity.

This trim serves as a primary retrofit solution for facility managers. It is specifically designed to cover a standard 2-1/8" (161) cylindrical lock prep, allowing for a seamless transition from a standard bored-hole lever to a high-security exit device system without the need for expensive door patching or replacement. The heavy-duty through-bolt mounting system creates a rigid, high-strength assembly that resists prying and vibrational loosening, ensuring the lever remains securely anchored to the door for years of maintenance-free service.

ANSI Function 14: Passage / Always Active

The ANSI 14 Function is designed for unrestricted access, where the primary goal is ease of movement rather than restricted entry.

• Always Unlocked: The exterior Philadelphia lever is always active. Turning the lever retracts the latch bolt of the exit device at all times without the need for a key or thumbturn.
• No Cylinder Requirement: This trim does not include a locking cylinder or a hole for one, providing a clean, vandal-resistant face that simplifies facility maintenance.
• High-Traffic Flow: It is the industry standard for interior doors that must remain accessible during business hours, such as break rooms, supply closets, or partition doors between departments.
• Life Safety & Accessibility: Like all 4200 Series hardware, the passage function ensures that the door is always ready for emergency egress from the interior while being easily operated from the exterior by all users.

Technical Specifications

Engineered Solutions for Seamless Facility Access

The PDQ 4SH Series addresses specific maintenance and compliance challenges in commercial environments:

• Eliminate Lever Droop: Frequent use often leads to sagging levers in standard hardware. The 4SH14 features a heavy-duty independent spring cage that ensures the Philadelphia lever returns to a level, 180-degree horizontal position every time.
• Aesthetic Restoration: When upgrading hardware, old mounting holes can ruin the look of a door. This trim’s oversized rose design completely hides the 2-1/8" bore from previous cylindrical locks, providing a clean, factory-finish look.
• ADA & Safety Compliance: The return-to-door design of the PHL lever prevents clothing, equipment, or fire hoses from snagging on the hardware, meeting strict ADA and life-safety requirements.
• Maintenance Efficiency: Because there are no cylinders to re-key or pins to replace, the passage function is the lowest-maintenance trim option available, significantly reducing the long-term cost of ownership.
• Buy American Act (BAA): Assembled in the USA, this hardware meets the domestic sourcing requirements for federal, state, and municipal government-funded projects.
