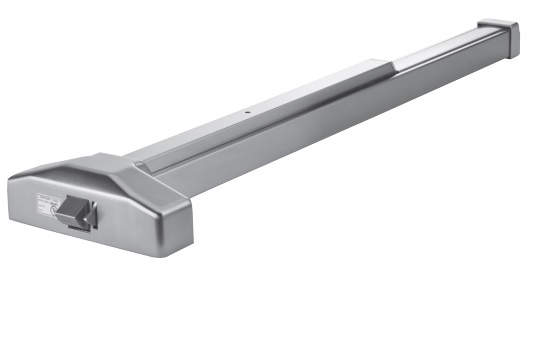

PDQ 4200RF 36" UL Fire-Rated Rim Exit Device - Commercial Grade 3-Foot Panic Bar
The PDQ 4200RF is a high-performance, UL Fire-Rated Rim Exit Device engineered to provide life-safety egress and fire protection for 36" (3-foot) commercial door openings. Designed for medium-duty applications, this device bridges the gap between residential hardware and expensive heavy-duty exit bars, offering a robust solution for schools, office complexes, and healthcare facilities.
Unlike standard panic bars, the 4200RF is specifically built to withstand the intense heat of a fire. It features a heavy-duty steel chassis and a stainless steel latch bolt that remains secure even under extreme thermal stress, ensuring that fire doors remain latched to prevent the spread of smoke and flames.
ANSI/BHMA Function: Fire Exit Hardware (Rim Type)
The PDQ 4200RF serves as a primary "Life Safety" device. In a fire-rated application, the function of the hardware is twofold: to allow immediate exit and to ensure positive latching.
- Emergency Egress: A slight pressure on the touch bar at any point instantly retracts the latch, allowing occupants to exit the building safely during an emergency.
- Positive Latching: Because this is a Fire-Rated (RF) device, it does not include a dogging feature. Fire codes require that fire doors remain latched at all times to maintain the integrity of the fire barrier; therefore, the latch cannot be manually held in the retracted position.
- Safety Logic: The device is UL Listed for Fire Exit Hardware (up to 3 hours on "A" label doors), ensuring it meets the most stringent National Fire Protection Association (NFPA 80) standards.
Technical Specifications
| Feature | Details |
| Model | PDQ 4200RF |
| Fire Rating | UL Listed up to 3 Hours ("A" Label) |
| Door Width | Fits standard 36" (3 ft) doors |
| Handing | Non-Handed (Field Reversible) |
| Chassis | Corrosion-Resistant Plated Steel |
| Latch Bolt | Stainless Steel with 3/4" Throw |
| Backset | Compatible with 2-3/4" backset & 161 prep |
| Stile Width | 4-1/4" Minimum |
| Door Thickness | 1-3/4" Standard |
| Certifications | UL 305, UL 10C, ADA Compliant |
| Warranty | 5-Year Limited Warranty |
Engineered Solutions for Fire-Rated Openings
The PDQ 4200RF is designed to solve complex facility compliance and safety issues:
- Code Compliance Simplified: This device is UL 10C Positive Pressure rated and meets ADA requirements for accessibility. It ensures your facility passes fire marshal inspections while remaining accessible to all individuals.
- Vandal-Resistant Durability: The heavy-gauge steel rail and stainless steel latch are designed to withstand the rigors of daily use in "medium-duty" environments, reducing the frequency of maintenance calls.
- Versatile Architectural Finishes: Available in professional finishes including 626 Satin Chrome, 630 Satin Stainless Steel, and 689 Aluminum, allowing for a consistent aesthetic throughout the building.
- Antimicrobial Security: For high-touch areas like hospitals or laboratories, an optional antimicrobial coating is available to inhibit the spread of germs on the touch bar.
- Buy America Act (BAA): Assembled in the USA, this hardware satisfies the procurement requirements for federal, state, and municipal government-funded projects.
| General - US Finishes | US32D - Satin Stainless Steel/ 630 or 626 - Satin Chrome or 689 - Spray Alumimun or 695 - Spray Dark Bronze or 696 - Spray Gold or US3 - Polished Brass |
| Brand | PDQ |
| Exit Device Type | Rim Exit Device |
| Series | PDQ - 4200 Series |
| Exit Device Fire Rating | Fire Rated Door |
| Door Opening Width | 36 Inches |
