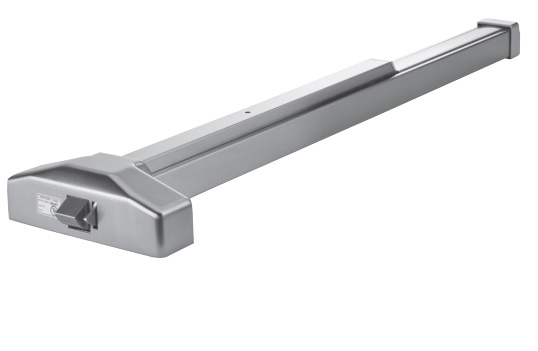

PDQ 4200R Commercial Rim Exit Device for 36" Doors
Medium-Duty Panic Bar Solution for Non-Fire Rated Egress Control
The PDQ 4200R Rim Exit Device is a high-performance, cost-effective solution engineered for medium-traffic commercial environments. Designed to provide a reliable "life safety" exit point for 3-foot wide doors, this device is the go-to choice for schools, office buildings, and retail spaces that require a balance between institutional durability and a budget-conscious price point.
Constructed with a corrosion-resistant plated steel chassis and a heavy-gauge steel rail, the 4200R is built to withstand the rigors of daily operation. Its non-handed design ensures a seamless fit on both left- and right-handed doors, eliminating installation guesswork and reducing labor time on the job site.
ANSI/BHMA Function: Rim Exit Device (Panic Hardware)
The PDQ 4200R operates as a standard Rim Exit Device, characterized by a latch bolt that engages a strike mounted on the door frame (soffit).
- Exit Operation: Pressing the touch bar at any point along its length retracts the latch bolt instantly, allowing for immediate emergency egress.
- Dogging Feature (Hex Key): As a non-fire-rated device, it includes a manual "dogging" mechanism. Using a standard hex key, the latch can be locked in the retracted position. This converts the door into a "push/pull" entrance during business hours, reducing wear on the internal mechanism and providing convenience in high-traffic scenarios.
- Security Logic: Once the dogging is released, the stainless steel latch bolt automatically re-engages the strike, providing secure perimeter control against unauthorized entry from the outside.
Technical Specifications
| Feature | Details |
| Model | PDQ 4200R |
| Application | Rim Exit (Surface Mount) |
| Door Width | Fits standard 36" (3 ft) doors |
| Door Thickness | 1-3/4" Standard |
| Backset | Compatible with 2-3/4" backset & 161 prep |
| Stile Width | 4-1/4" Minimum |
| Latch Bolt | Stainless Steel |
| Chassis | Plated Steel (Corrosion Resistant) |
| Handing | Non-Handed (Field Reversible) |
| Warranty | 5-Year Limited Warranty |
Engineered Solutions for Accessible Safety
The 4200R Series addresses specific facility challenges through intentional engineering:
- ADA Compliance: This device meets ADA and ICC/ANSI 117.1 requirements for accessibility, ensuring that exits are easy to operate for all individuals regardless of physical ability.
- Architectural Flexibility: Available in several high-quality finishes, including 626 Satin Chrome and 630 Satin Stainless Steel, allowing you to match existing hardware throughout your facility.
- Antimicrobial Protection: For healthcare or high-touch environments, an optional antimicrobial coating can be applied to 626 and 630 finishes to inhibit the growth of bacteria and viruses on the touch bar.
- Modular Trim Options: While the device is "exit only" by default, it is compatible with a wide range of PDQ 4200 Series Lever Trims. You can easily add Passage, Storeroom, or Classroom functions to the exterior side of the door without replacing the main unit.
- Regulatory Compliance: The 4200R is UL 305 listed for Panic Hardware and meets the requirements of the Buy America Act, making it suitable for municipal and government-funded construction projects.
| General - US Finishes | US32D - Satin Stainless Steel/ 630 or 626 - Satin Chrome or 689 - Spray Alumimun or 695 - Spray Dark Bronze or 696 - Spray Gold or US3 - Polished Brass |
| Brand | PDQ |
| Series | PDQ - 4200 Series |
| Exit Device Type | Rim Exit Device |
| Exit Device Fire Rating | Non Rated Door |
| Door Opening Width | 36 Inches |
