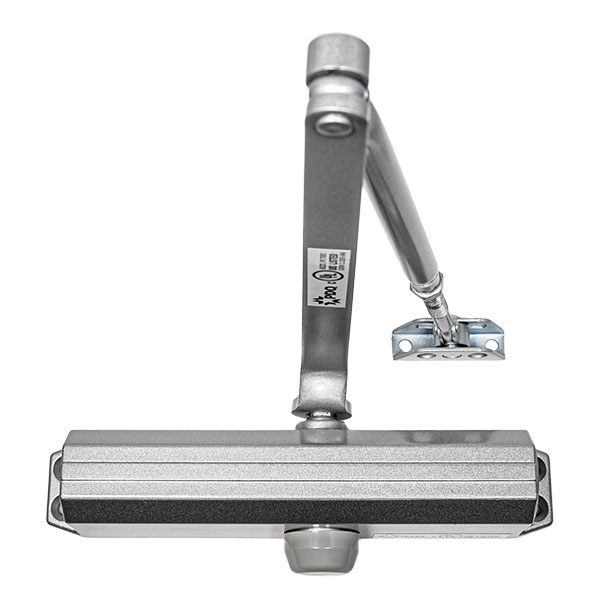

PDQ 3101BF BC PA: The Ultimate Barrier-Free Commercial Door Closer
The PDQ 3101BF BC PA Door Closer is the industry standard for reliable, "barrier-free" door control. Engineered specifically for high-traffic commercial environments, this ANSI/BHMA Grade 1 Certified closer combines effortless operation with rugged durability. Whether you are managing a retail storefront, a healthcare facility, or an office complex, the 3101BF ensures your openings remain ADA Compliant and safe for all users.
Seamless Retrofit & Universal Installation
The PDQ 3101BF is a favorite among facility managers for its "drop-in" replacement capabilities. Featuring a 9-1/16” mounting hole pattern, this unit is a direct retrofit for Yale 50 and Norton 1600 series closers.
To ensure maximum versatility on the job site, each unit is Tri-Packed, allowing for Regular Arm, Top Jamb, or Parallel Arm mounting. We provide all necessary fasteners—including self-drilling, self-tapping screws and thru bolts—to facilitate a professional install on wood, hollow metal, or aluminum doors and frames.
Technical Specifications
| Feature | Details |
| Model | PDQ 3101BF BC PA (Barrier Free) |
| Certification | ANSI/BHMA A156.4 Grade 1 |
| Fire Rating | UL Listed (Up to 3-hour fire doors) |
| Compliance | ADA Compliant; ICC/ANSI 117.1; TAA Compliant |
| Mounting Pattern | 9-1/8" x 3/4" (9-1/16" Horizontal) |
| Material | Heavy-Duty Cast Aluminum Body |
| Adjustability | Separate Hydraulic Sweep, Latch, and Backcheck |
| Origin | Country of Origin: KR |
| Warranty | 25-Year Limited Warranty |
Versatile Mounting Positions Explained
Choosing the right mounting application is critical for the longevity of your commercial door hardware. The PDQ 3101BF is non-handed and supports the following configurations:
- Regular Arm (Pull Side): The most efficient mounting style where the closer is on the door and the arm attaches to the frame. Ideal for interior in-swing doors where aesthetics and efficiency are priorities.
- Top Jamb (Push Side): Best for exterior out-swinging doors. The closer body is mounted to the frame, keeping the hardware protected while allowing for a maximum 3-11/16” reveal.
- Parallel Arm (Push Side): The preferred choice for areas prone to vandalism or where a sleek look is required. The arm sits parallel to the door face, eliminating the "protruding arm" look common in other mounts.
Superior Control with Hydraulic Backcheck
Safety is paramount in public spaces. The PDQ 3101BF features standard Hydraulic Backcheck (BC). This adjustable valve cushions the door's opening cycle, preventing it from being thrown open by wind or abusive traffic, which protects your door, frame, and surrounding walls from costly damage.
| General - US Finishes | 689 - Spray Alumimun or 693 - Spray Black or 695 - Spray Dark Bronze or 696 - Spray Gold |
| Brand | PDQ |
| Closer Arm Type | Tri Pack - Reg/Par Arm, Tri Pack - Reg/Par Arm |
| Series | PDQ - 3100 Series |
| Hold Open | Non-Hold Open |
| Closer Body Hole Pattern | 9 1/16" x 3/4" |
