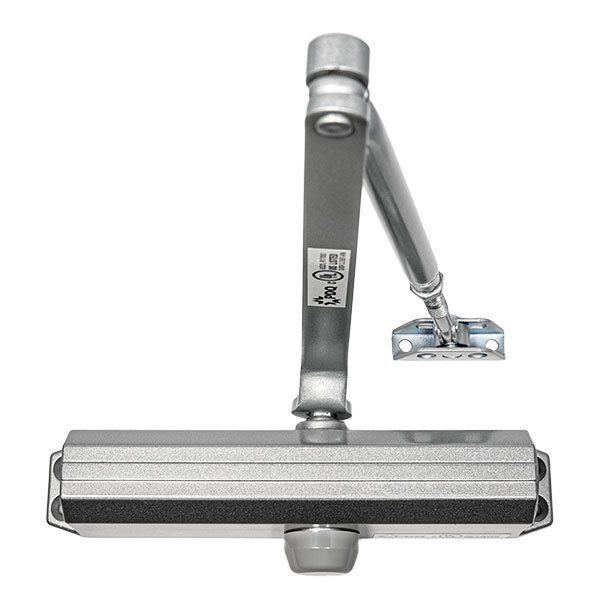

PDQ 3101BF Barrier Free Door Closer Tri Pack — ADA Compliant Commercial Door Closer

The PDQ 3101BF Barrier Free Door Closer is a surface-mounted, ADA-compliant commercial door closer designed for openings where low opening-force requirements and smooth, controlled closing action are essential. Sold as a convenient tri pack (BC PA configuration), this unit is engineered to meet barrier-free access requirements in commercial, institutional, and public-occupancy buildings where compliance with accessibility standards is mandatory.

As a preferred-brand closer from PDQ, the 3101BF is built for reliable, long-service performance with a design philosophy focused on part-level serviceability — an important consideration for facility managers and contractors who need predictable maintenance cycles without surprise full-unit replacements.

Key Benefits

• ADA / Barrier-Free Compliant: Engineered to meet low opening-force thresholds required by ADA and ICC A117.1 accessibility guidelines — critical for public-access, healthcare, education, and government facilities.
• Tri Pack Value: The BC PA (Back Check, Parallel Arm) tri pack configuration bundles the closer body and arm components needed for parallel arm mounting, reducing sourcing steps for contractors and purchasing agents.
• Parallel Arm (PA) Mounting: Parallel arm installation positions the closer on the push side of the door, providing a cleaner appearance on the pull side and protecting the closer body from direct impact forces.
• Back Check (BC) Feature: Hydraulic back check cushions and limits the door's opening swing, protecting walls, frames, and adjacent hardware from impact damage — especially important in high-traffic commercial corridors.
• Surface Mounted Design: Straightforward installation on hollow metal, wood, or aluminum doors; no special door or frame preparation required beyond standard template drilling.
• Commercial-Grade Construction: Built to meet the demands of commercial traffic volumes and heavy daily use cycles consistent with ANSI/BHMA A156.4 commercial door closer standards.

Typical Applications

• ADA-accessible entrances, corridors, and interior doors in commercial buildings
• Healthcare facilities, clinics, and hospitals requiring barrier-free hardware
• Educational institutions, government buildings, and public assembly occupancies
• Office buildings and tenant suite entries where ADA compliance is required
• Retrofit and replacement projects upgrading existing non-compliant closers
• Fire-rated door assemblies requiring a self-closing device (verify closer fire listing with project AHJ)

Technical Details

Note: Always verify fire-door listing requirements and ADA opening-force compliance with the Authority Having Jurisdiction (AHJ) for your specific project. Contact our team for comparable single-unit options or alternative PDQ configurations to suit your opening schedule.

The PDQ 3101BF BC PA Door Closer is the industry standard for reliable, "barrier-free" door control. Engineered specifically for high-traffic commercial environments, this ANSI/BHMA Grade 1 Certified closer combines effortless operation with rugged durability. Whether you are managing a retail storefront, a healthcare facility, or an office complex, the 3101BF ensures your openings remain ADA Compliant and safe for all users.

Seamless Retrofit & Universal Installation

The PDQ 3101BF is a favorite among facility managers for its "drop-in" replacement capabilities. Featuring a 9-1/16” mounting hole pattern, this unit is a direct retrofit for Yale 50 and Norton 1600 series closers.

To ensure maximum versatility on the job site, each unit is Tri-Packed, allowing for Regular Arm, Top Jamb, or Parallel Arm mounting. We provide all necessary fasteners—including self-drilling, self-tapping screws and thru bolts—to facilitate a professional install on wood, hollow metal, or aluminum doors and frames.

Technical Specifications

Versatile Mounting Positions Explained

Choosing the right mounting application is critical for the longevity of your commercial door hardware. The PDQ 3101BF is non-handed and supports the following configurations:

• Regular Arm (Pull Side): The most efficient mounting style where the closer is on the door and the arm attaches to the frame. Ideal for interior in-swing doors where aesthetics and efficiency are priorities.

• Top Jamb (Push Side): Best for exterior out-swinging doors. The closer body is mounted to the frame, keeping the hardware protected while allowing for a maximum 3-11/16” reveal.
• Parallel Arm (Push Side): The preferred choice for areas prone to vandalism or where a sleek look is required. The arm sits parallel to the door face, eliminating the "protruding arm" look common in other mounts.

Superior Control with Hydraulic Backcheck

Safety is paramount in public spaces. The PDQ 3101BF features standard Hydraulic Backcheck (BC). This adjustable valve cushions the door's opening cycle, preventing it from being thrown open by wind or abusive traffic, which protects your door, frame, and surrounding walls from costly damage.
