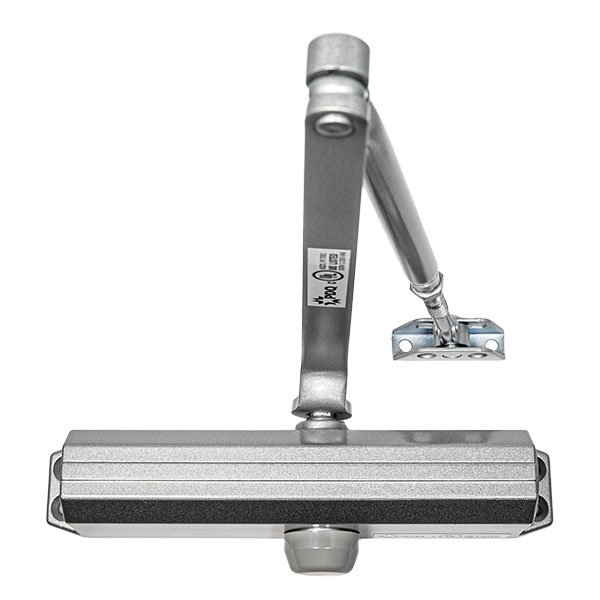

PDQ 3100 BC PA Door Closer - Regular or Parallel Arm Mounting
The PDQ 3100 BC PA Door Closer is a commercial-grade solution designed for reliability and ease of installation. Engineered to meet ANSI/BHMA A156.4 Grade 1 standards, this closer is ideal for medium-traffic environments such as offices, retail storefronts, and assisted living facilities.
What sets the 3100 series apart is its Tri-Pack mounting capability. Whether you require a Regular Arm, Top Jamb, or Parallel Arm installation, this single unit handles it all. Featuring adjustable backcheck (BC) to prevent the door from slamming into walls, the PDQ 3100 ensures both user safety and structural longevity.
Key Performance Features
- Adjustable Spring Power: Factory preset to Size 3, but easily adjustable from Size 1 to 6 to handle doors of various weights and widths.
- Dual Valve Control: Separate valves for Sweep and Latch speed allow for precise closing transitions.
- Non-Handed Design: Simplifies ordering and installation—works on both left and right-hand doors.
- Cast Aluminum Body: Provides a high strength-to-weight ratio with excellent corrosion resistance.
Technical Specifications
| Feature | Specification |
| Model | PDQ 3100 BC PA |
| Certification | ANSI/BHMA A156.4, Grade 1 |
| Fire Rating | UL/cUL Listed (3-hour fire doors) |
| Spring Size | Adjustable 1–6 (ADA Compliant at Size 1) |
| Mounting | Tri-Pack (Regular, Top Jamb, Parallel Arm) |
| Body Material | Die-cast Aluminum Alloy |
| Warranty | 25-Year Limited Warranty |
Why Choose the PDQ 3100 from Doorways Plus?
When you buy through DoorwaysPlus.com, you are getting more than just hardware; you are getting architectural-grade expertise. This closer is ADA Compliant, ensuring your facility meets accessibility codes while maintaining a sleek, professional aesthetic. Its Backcheck (BC) feature is essential for protecting your door, frame, and hardware from damage caused by wind or forceful opening.
| General - US Finishes | 689 - Spray Alumimun or 693 - Spray Black or 695 - Spray Dark Bronze or 696 - Spray Gold |
| Brand | PDQ |
| Closer Arm Type | Tri Pack - Reg/Par Arm |
| Series | PDQ - 3100 Series |
| Hold Open | Non-Hold Open |
| Closer Body Hole Pattern | 9 1/16" x 3/4" |
