NGP RR952 ADA Compliant Interlocking Wheelchair Rubber Ramp – 6″ Wide x 1/2″ High
Product Features
- Black rubber

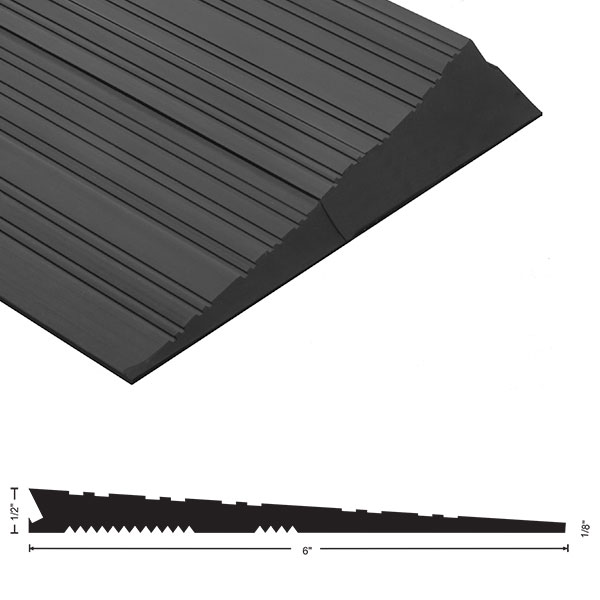

- 6" wide x 1/2" tall
- Supplied with beveled ends - (end slope = 1:2). Specify if straight cut is required
- Rubber ramp sections may be combined with aluminum ramp components for higher rises, or with 6" flat aluminum interlocking threshold #957 for offset conditions
- Black silicone adhesive available to secure ramps without fasteners. Specify RR5007BL, each tube will secure 2 R50s 12" wide x 36" long (6 square feet.)
- Weight: 1.0 lbs./ft.
- Maximum length = 120"
Standards
- ADA COMPLIANT. Barrier Free Thresholds meet the requirements of the ADA Standard for Accessible Design and ICC/ANSI A117.1 Accessible and Usable Buildings and Facilities.
- ANSI/BHMA CERTIFIED. Certified thresholds comply with American National Standard for Thresholds ANSI/BHMA A156.21 1,000 lb. load test and are listed in the BHMA Certified Products Directory.
Length | 36 Inch or 48 Inch or 72 Inch |
Brand | National Guard Products |
Threshold Grade | Commerical- Standard |
Threshold Type | Ramp, Rubber |
Threshold Width | 6" |
Threshold Height | 1/2" |
