NGP RO225 ADA Compliant Offset Interlocking Wheelchair Ramp – 33″ Wide x 1/4″ High x 2-1/4" Offset
National Guard Products RO225 ADA Compliant Offset Interlocking Wheelchair Ramp – 33″ Wide x 1/4″ High x 2-1/4" Offset
Lead Time: 10-15 Business Days
National Guard Products RO225 ADA Compliant Offset Interlocking Wheelchair Ramp – 33″ Wide x 1/4″ High x 2-1/4" Offset
Product Features
- Aluminum alloy 6063, T5 temper

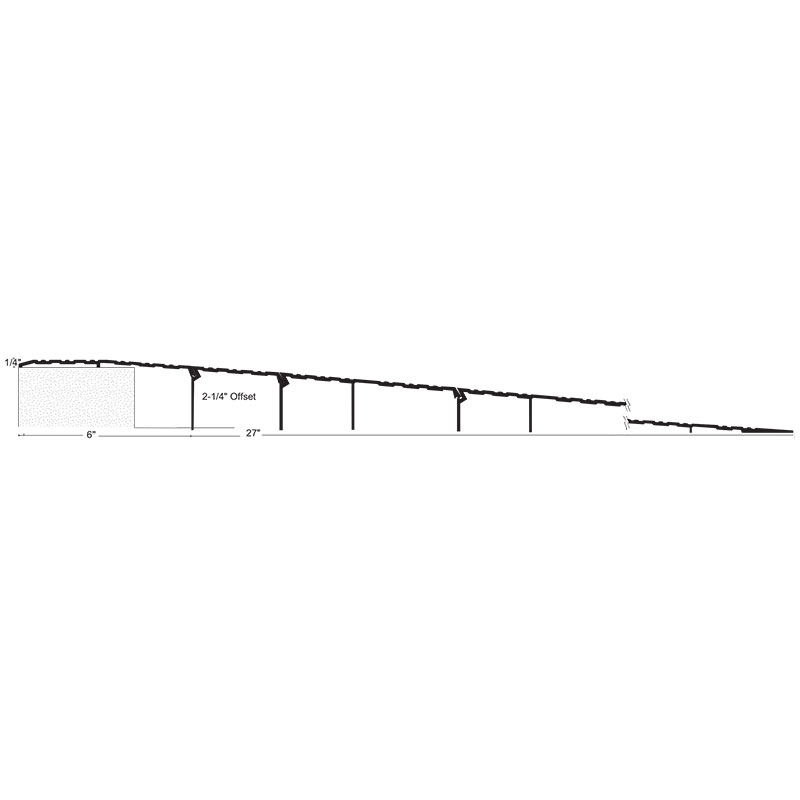

- 33" wide x 1/4" tall with 2-1/4" offset
- Typical wall thickness .110
- Weight: 7.30 lbs./ft.
- #10 FH zinc plated wood screws included
- Mill finish
Standards
- ADA COMPLIANT. Barrier Free Thresholds meet the requirements of the ADA Standard for Accessible Design and ICC/ANSI A117.1 Accessible and Usable Buildings and Facilities.
- CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
- POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
- ANSI/BHMA CERTIFIED. Certified thresholds comply with American National Standard for Thresholds ANSI/BHMA A156.21 1,000 lb. load test and are listed in the BHMA Certified Products Directory.
| Length | 36 Inch or 48 Inch or 72 Inch |
| Brand | National Guard Products |
| Threshold Grade | Commerical- Standard |
| Threshold Type | Offset Ramp |
| Threshold Width | 33" |
| Threshold Height | 1/4" |
| Threshold Offset | 2-1/4" |
