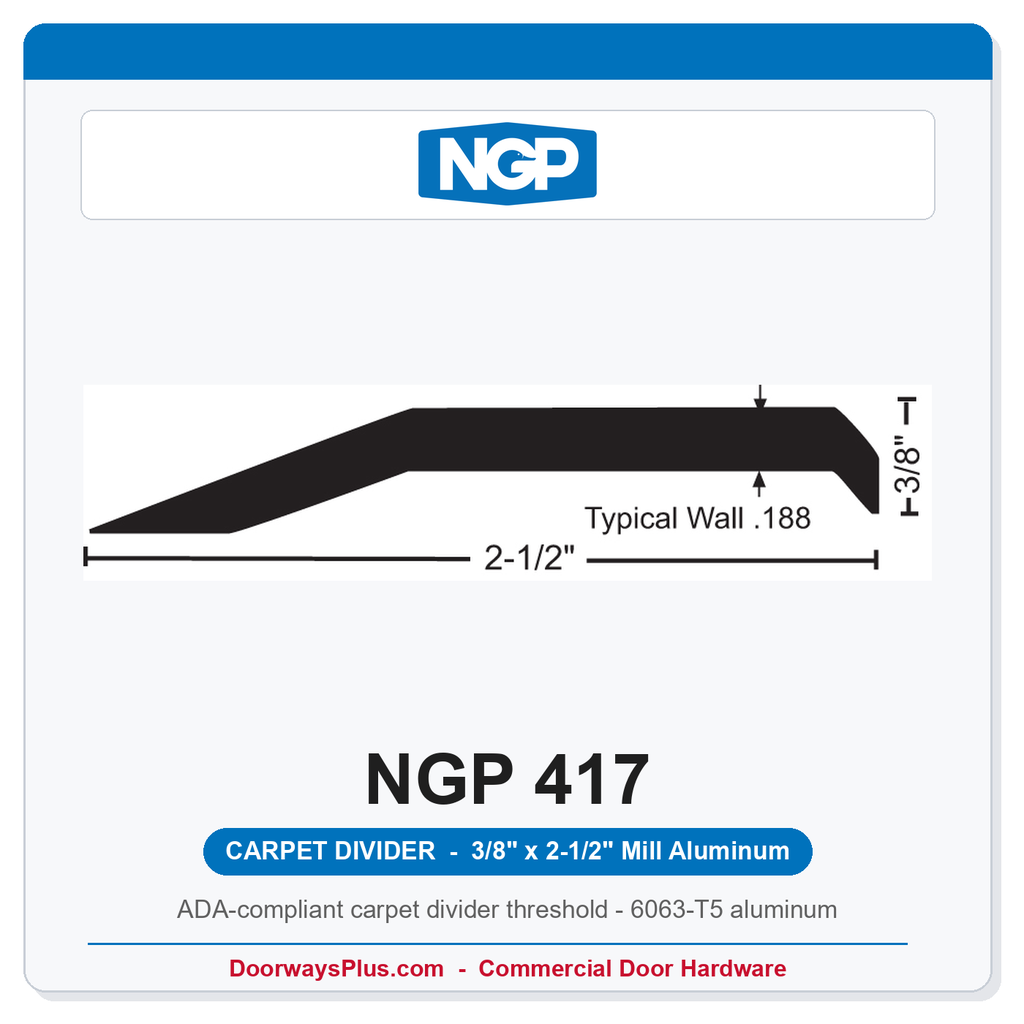

NGP 417 Carpet Divider Threshold 2-1/2" Wide x 3/8" High | Mill Aluminum
The National Guard Products NGP 417 is a commercial carpet / tile divider threshold, 2-1/2" wide by 3/8" high, extruded from architectural-grade aluminum. It makes a clean, durable transition between carpet and adjacent hard flooring, anchoring and protecting the exposed edge and eliminating trip hazards in high-traffic commercial and hospitality interiors.
ADA-Compliant Floor Transition
The NGP 417 provides a smooth, barrier-free transition between carpet or tile and the adjacent floor covering, protecting the exposed edge and eliminating trip hazards at the change in flooring. Its low profile meets the ADA Standard for Accessible Design and ICC/ANSI A117.1 for accessible routes.
Durable Commercial Extrusion
Extruded from architectural-grade aluminum for high-traffic commercial and hospitality interiors, the NGP 417 locks down the carpet/tile edge and resists the wear of rolling loads and foot traffic.

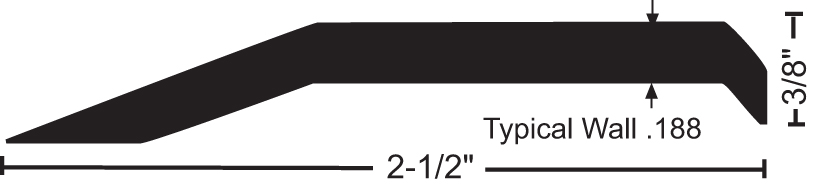

Technical Specifications
| Model | NGP 417 |
| Type | Carpet Divider Threshold |
| Width | 2-1/2" |
| Height | 3/8" |
| Material | Extruded Aluminum Alloy 6063, T5 Temper |
| Finish | Mill Aluminum |
| Wall Thickness | 0.125" |
| Weight | 0.5 lbs./ft. |
| Fasteners | #10 x 1-1/2" FH Zinc Plated Wood Screws (included) |
| Available Lengths | 48" and 72" |
| Certifications | ADA, Barrier-Free Floor Transition |
Ordering & Lead Time
Made to order (not stocked). Lead time: 5-7 business days.
| Length | 48 Inch or 72 Inch |
| Brand | National Guard Products |
| Threshold Grade | Commercial- Standard |
| Threshold Type | Carpet Divider |
| Threshold Width | 2-1/2" |
| Threshold Height | 3/8" |
