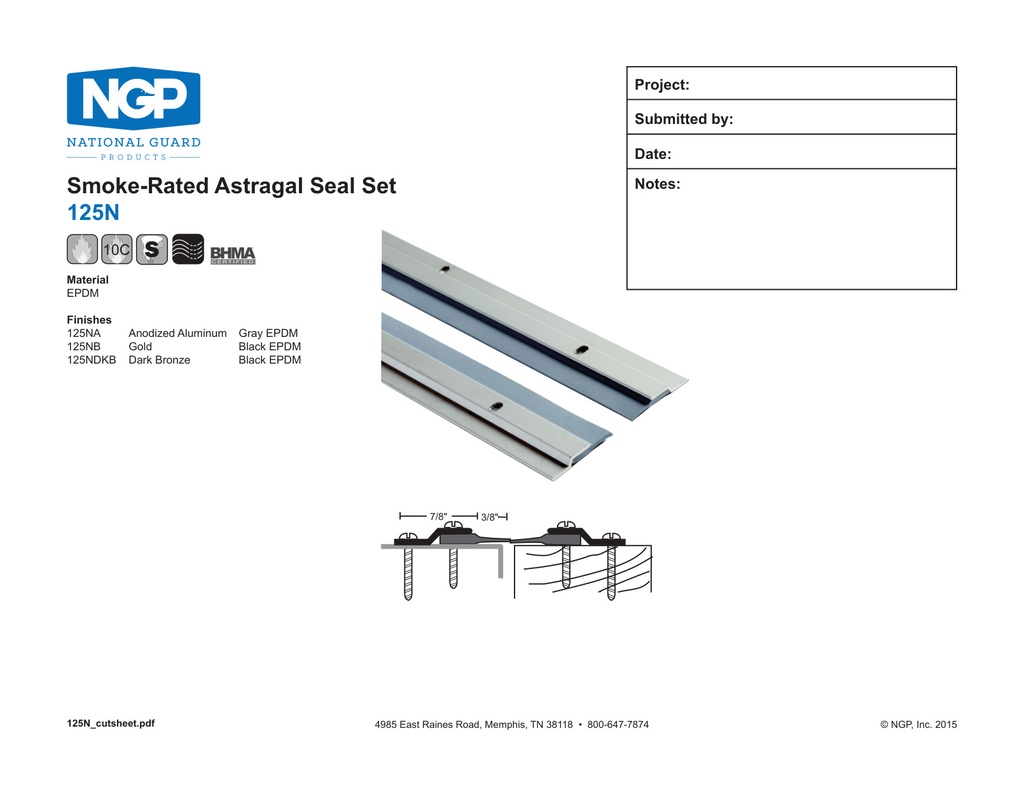

NGP 125NA EPDM Smoke-Rated Astragal Astragal Set | Anodized Aluminum
The National Guard Products 125NA is a commercial two-piece meeting-edge astragal set. NGP lists it as Anodized Aluminum Finish, Astragal with EPDM Seal. Typical section is 1-1/8" x 3/8".
Order as a set to receive two pieces. Available piece heights: 84 inch and 96 inch.
Product Features
- Aluminum Alloy 6063, T5 Temper
- Synthetic EPDM Rubber in Polypropylene Thermoplastic Matrix
- Very Good Abrasion Resistance, Tensile Strength and Memory
- Flame-Resistant
- Temperature Range -81F to 275F
- Good Resistance to Ozone, Sunlight and Aging
- BHMA Certified to ANSI/BHMA A156.22 Performance Tests for Heat, Cold, Air Infiltration and Smoke Infiltration
- Fire-Rated Astragal Seals Cannot Replace any Astragal Required on the Door by the Door Manufacturer to Maintain its Fire Label
- IBC, NFPA 80, NFPA105, and NFPA 252 Require the Gap at the Meeting Edge Between Fire Labeled Doors Must Not Exceed 1/8"
- #6 x 3/4" Stainless Steel Sheet Metal Screws Furnished
- Screw Holes are Slotted for Adjustment
- Provided as Two-Piece Set
- Neoprene is Black
- Anodized Aluminum
Standards
- CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
- POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
- AIR INFILTRATION Recommended product for minimum Air Leakage and a tight seal around the perimeter of doors.
- SMOKE & DRAFT CONTROL GASKETING. Certified by UL to ANSI/UL10C and ANSI/UL1784 Category 'H'; complies with IBC and NFPA 105 for use on 'S' labeled Positive Pressure Hollow Metal fire doors rated up to 3 hours, and Wood fire doors rated up to 90 minutes.
- ANSI/BHMA CERTIFIED. Certified Gasketing complies with American National Standard for Door Gasketing and Edge Sealing Systems ANSI/BHMA A156.22 and is listed in the BHMA Certified Products Directory.
Technical Details
| Model | NGP 125NA |
| Type | Astragal set (two meeting-edge pieces) |
| Manufacturer | National Guard Products |
| Housing | Aluminum Alloy 6063, T5 Temper |
| Housing finish | Anodized Aluminum |
| Housing size | 1-1/8" x 3/8" |
| Insert | Neoprene |
| Insert color | Neoprene is Black |
| Fasteners | #6 x 3/4" Stainless Steel Sheet Metal Screws Furnished; Screw Holes are Slotted for Adjustment |
| Temperature range | Temperature Range -81F to 275F |
| Mounting | Surface, screw applied to the meeting edge |
| Certifications | UL10B / CAN/ULC-S104, UL10C positive pressure, UL1784 Category H smoke & draft, BHMA A156.22 |
| Available set sizes | 84", 96" |
| Application | Two-piece meeting-edge astragal set (order as set to receive two pieces). |
Ordering & Lead Time
Made to order (not stocked). Lead time: 10-15 business days.
| Length | 84 Inch or 96 Inch |
| Brand | National Guard Products |
| Housing Finish | Aluminum |
| Smoke Rated | Smoke Rated |
| Weatherstripping Type | Astragal |
| Housing Size | 1-1/8" x 3/8" |
| Insert Color | Black |
| Fasteners | #6 x 3/4" Stainless Steel Sheet Metal Screws Furnished |
| Set Type | Two-piece meeting-edge set |
| Fire Rated | Fire Rated |
| Insert Material | Neoprene |
| Mounting Type | Screw Applied - Exp Screw, Surface Mounted |
