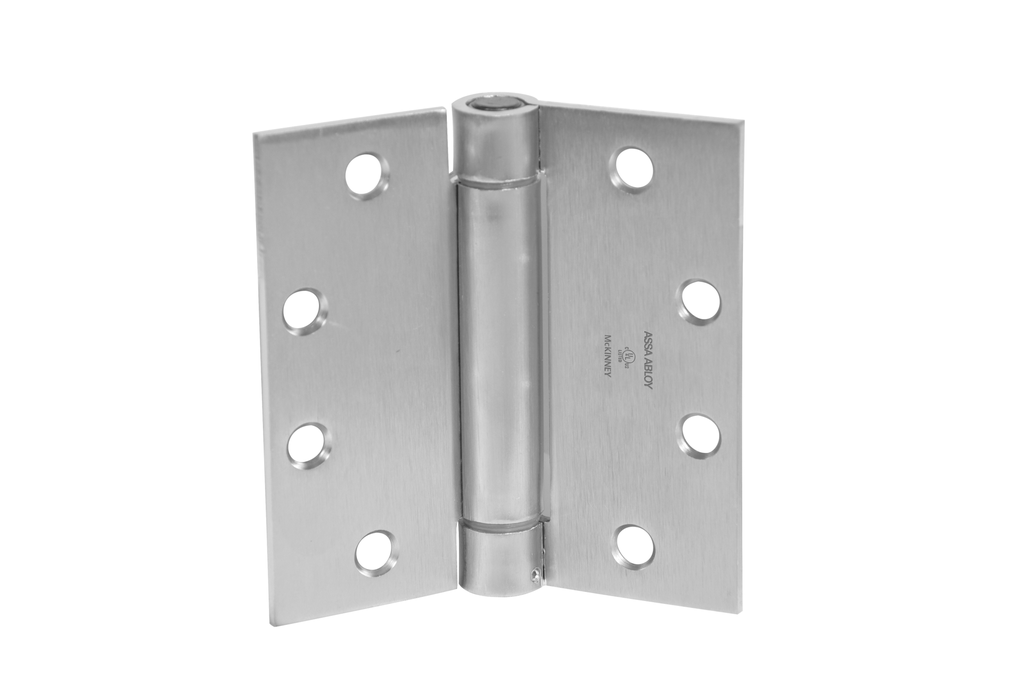

McKinney 1502 Spring Hinge | 4-1/2" x 4-1/2" Full Mortise Self-Closing Hinge
The McKinney 1502 Spring Hinge is a high-performance, self-closing hardware solution designed to provide a sleek alternative to traditional overhead door closers. Engineered for standard-weight, medium-frequency doors, this full-mortise hinge is the premier solution for door restoration in apartments, hotels, office buildings, and motels. By combining the pivot motion of a high-quality hinge with an internal tension mechanism, the 1502 ensures that doors return to a latched position automatically, making it an essential solution for commercial door security and fire code compliance.
Crafted with a durable .134 gauge thickness, the McKinney 1502 is UL Listed and fully compliant with NFPA 80 and UL10c standards for fire-rated door assemblies. This hinge serves as a critical solution for door surface repair and safety upgrades, particularly in spaces where bulky hydraulic closers are aesthetically undesirable or impractical. With its non-handed design and adjustable tension, it offers facility managers a versatile and reliable way to maintain building security and life-safety requirements.
Key Features & Benefits
- Automatic Self-Closing Action: Uses internal spring tension to ensure doors close and latch securely, providing a space-saving solution for commercial door security.
- Adjustable Tensioning: Includes a hex key to fine-tune closing speed and force, allowing for a customized solution for door edge reinforcement based on specific door weights.
- Fire-Rated Compliance: Meets NFPA requirements (minimum two spring hinges per labeled door), making it a dependable choice for fire-rated partitions and corridor doors.
- Tamper-Resistant Design: Features a specialized locking screw to prevent unauthorized tension adjustment, enhancing long-term reliability in public spaces.
- Sleek Architectural Profile: The square 4-1/2" x 4-1/2" configuration provides a clean look that blends seamlessly with existing architectural hardware.
Technical Details & Specifications
- Brand: McKinney (ASSA ABLOY)
- Model Number: 1502
- Dimensions: 4-1/2" x 4-1/2" (Full Mortise)
- Gauge: .134 (Standard Weight)
- Base Material: Steel with high-quality Plated Finish
- Standards: ANSI/BHMA A156.17 Grade 1; UL Listed for fire doors
- Fasteners Included: Furnished with All Wood Screws (1-1/4" x 12) and All Machine Screws (1/2" x 12-24).
Application & Installation Guidelines
To ensure proper latching and NFPA compliance, please follow these weight-based recommendations:
- For Doors up to 115 lbs: Use two 1502 spring hinges and one equivalent size ball bearing hinge.
- For Doors up to 150 lbs: Use three 1502 spring hinges for maximum closing force.
Note: Proper latching can be affected by gasketing, wind conditions, and air pressure. For doors with heavy smoke seals or unbalanced HVAC pressure, a third spring hinge is often the best solution for door restoration to ensure a positive latch.
Why Choose the McKinney 1502?
The McKinney 1502 is the professional’s choice for blending functionality with safety. While standard butt hinges from brands like Hager or Stanley only provide motion, the 1502 delivers a complete self-closing system. It offers a permanent and cost-effective solution for door security, providing the robust performance and fire-rated certification required for modern commercial and residential interiors.
| General - US Finishes | US26D - Satin Chrome or US26 - Polished Chrome or US15 - Satin Nickel or US3 - Polished Brass or US4 - Satin Brass or US10 - Satin Bronze or US10B - Oil Rubbed Bronze or US10BE - Oil Rub Bronze Equal |
| Brand | McKinney |
| Hinge Height | 4.5" Hi |
| Hinge Width | 4.5" Wi |
| Hinge Grade/Thickness | Standard Wt .119 to .146 |
| Hinge Type | Spring Hinge |
| Spring Hinge Type | Single Acting |
| Base Material | Steel |
| Hinge Corners | Square |
