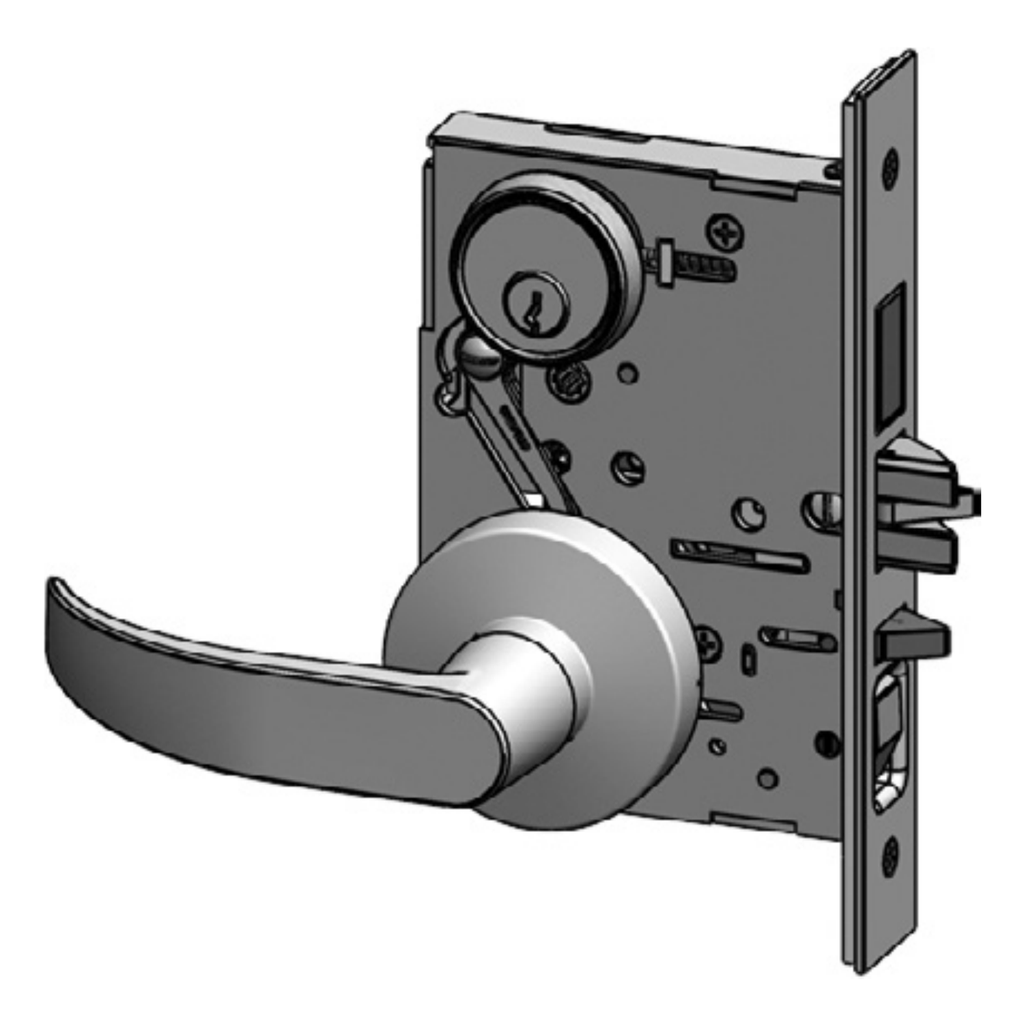

PDQ MR212 BFSF Single Dummy with Chassis Trim - Grade 1
The PDQ MR212 BSN (often specified as BFSF for the Boston lever on a F-Series Sectional (round rose, wrought trim)) is Single Dummy with Chassis trim for the PDQ MR Series. It provides fixed, non-operating lever trim -- there is no latch, deadbolt, or operating mechanism -- for push/pull applications and to visually match active MR Series mortise locksets on inactive door leaves, closet doors, and the inactive leaf of a pair of doors.
This version is supplied with a mounting chassis (a backing/mounting component -- it is not an operating mechanism).
The Boston (BSN) lever is solid forged brass with a clean, architectural aesthetic in a US26D Satin Chrome finish. Its "return-to-door" design is ADA compliant and helps prevent clothing, bags, or straps from snagging on the hardware in busy corridors.
Function: Single Dummy with Chassis Trim (no ANSI code)
Single Dummy with Chassis trim mounts a fixed lever on the pull side of the door with no operating mechanism:
- Rigid outside lever.
Technical Specifications
| Feature | Details |
| Model | PDQ MR212 BSN (F-Series Sectional) |
| Function | Single Dummy with Chassis Trim (no ANSI code) |
| Trim Operation | Fixed / Non-operating (push-pull dummy trim) |
| Chassis | Included (mounting chassis) |
| Lever Style | Boston (BSN) - Forged Brass Base |
| Finish | US26D (626) Satin Chrome |
| Handing | Non-handed (dummy trim; no handing required) |
| Warranty | Limited Lifetime (MR Series) |
Why the PDQ MR Series Dummy Trim
- Aesthetic Match: the same Boston F-Series trim used on the active MR Series locksets, for a consistent look across active and inactive door leaves.
- ADA-Compliant Lever: the "return-to-door" lever design meets accessibility requirements.
- Solid Forged Brass: a durable forged-brass lever finished in US26D Satin Chrome.
| Brand | PDQ |
| Finish with BHMA code | 626 - US26D Satin Chrome |
| ANSI Mortise Lock Function | Dummy Trim |
| Trim Design | BFSF |
| Series | PDQ - MR Series |
| Strike Type | 4-7/8 ANSI Strike - Hollow Metal Frames |
