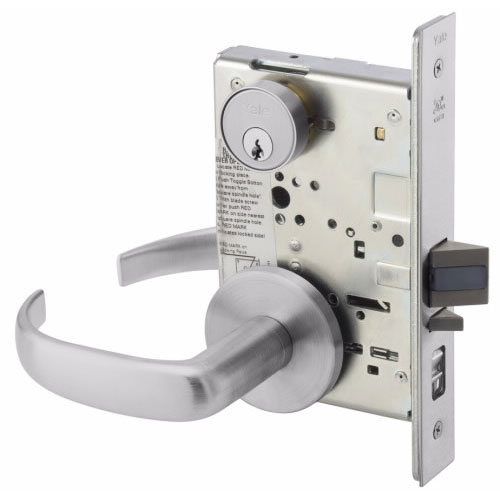

Accentra PBR 8807FL Entry Mortise Lock – Grade 1 Security (Less Mortise Cylinder)

Function Info:

• For office doors where locking is required.
• Latchbolt retracted by lever on either side, except when outside lever is locked by stopwork activator (toggle).
• When outside lever is locked, latchbolt is operated by key outside and lever inside.
• Inside lever is always active for immediate egress.
• Deadlocking latchbolt prevents unauthorized manipulation.

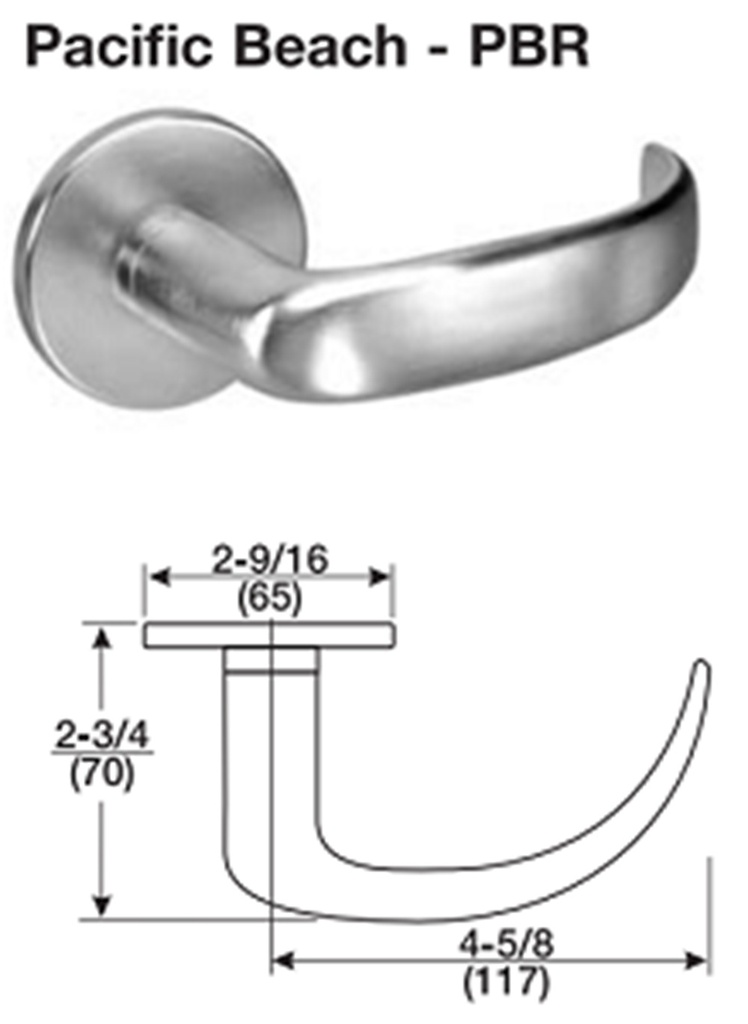

The Accentra PBR 8807FL is a premier Grade 1 Entry Mortise Lockset engineered for high-traffic commercial door hardware applications. As a top-tier ANSI/BHMA A156.13 certified solution, this Entry Function Mortise Lock (formerly Yale 8800 series) provides the ultimate combination of architectural security and sleek design. Featuring the modern Pacific Beach (PBR) lever in a durable 626 Satin Chrome finish, it is the ideal choice for office door security, university facilities, and government buildings requiring a heavy-duty, fire-rated mortise lockset.

This industrial-grade door lock is built to outperform standard hardware, offering a 10-year mechanical warranty and a 3-hour UL fire rating. Facility managers and architects specify the Accentra 8807FL for its robust wrought steel construction and vandal-resistant trim, ensuring long-term reliability in demanding environments. Whether you are upgrading a professional suite or managing a large-scale institutional project, this Satin Chrome mortise lock delivers the professional aesthetic and Grade 1 durability required for modern building codes.

Function Details: Entry/Office (ANSI F04)

The Entry Function is specifically engineered for professional spaces such as private offices and suite entrances where the locking status needs to be toggled manually. This mechanical configuration provides the following operational features:

• Manual Locking Control: The outside lever can be manually locked or unlocked using the stopwork activator (toggle) located on the armor front.
• Keyed Access: When the exterior lever is set to the locked position, a mechanical key must be used to retract the latchbolt for entry.
• Safe Egress: The inside lever is always active, ensuring that occupants can exit the room at any time without the use of a key, meeting critical life-safety codes.
• Deadlocking Security: Equipped with a deadlocking latchbolt that prevents "shimming" or unauthorized manipulation of the latch when the door is closed.
• Application: Ideal for office doors that require the ability to stay unlocked during business hours and remain securely keyed afterward.

Key Performance Features

• Entry Function (ANSI F04): Features a toggle-style stopwork that allows the user to switch between a locked state and a free-passage state for daytime accessibility.
• Grade 1 Certified Excellence: Independently certified to ANSI/BHMA A156.13 Series 1000 Grade 1 standards for maximum durability and operational life in high-traffic zones.
• 3-Hour Fire Rated: UL / cUL Listed for use on fire doors, providing critical protection and strict code compliance for commercial facilities.
• Heavy-Duty Construction: Features 3/8" heat-treated solid steel hubs and a stainless steel one-piece anti-friction latchbolt for smooth, reliable performance and vandal resistance.
• Universal Handing: Furnished as Right Hand (RH) but features a field reversible design to accommodate any door swing without specialized tools.

Technical Specifications & Compliance

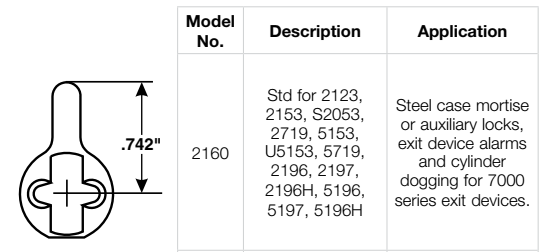

This lockset is sold less cylinder. It is compatible with a standard 1-1/8" Mortise Cylinder (such as the 2153) with a 2160 cam and a 1/4" trim ring.
