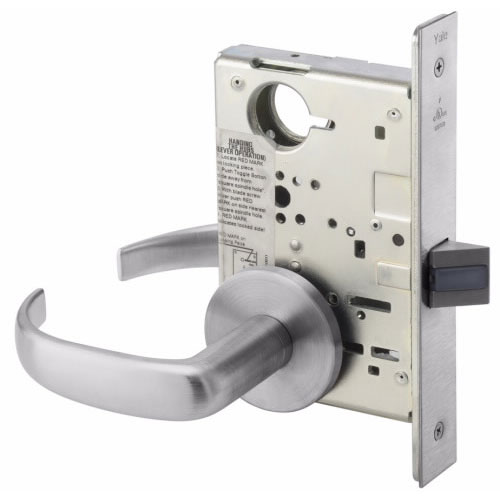

Accentra PBR 8802FL Privacy Mortise Lockset – Grade 1 Architectural Security
Function Info:
| • Latchbolt retracted by knob/lever either side. • Deadbolt operated by thumbturn inside. • When the deadbolt is projected, outside knob/lever is automatically locked. • Anti-panic operation. Operating inside knob/lever retracts the latchbolt and deadbolt simultaneously, automatically unlocking outside knob/lever. • In emergency, deadbolt may be unlocked from outside by E203 emergency key, supplied. |
The Accentra PBR 8802FL (formerly Yale 8800 series) is a heavy-duty Privacy Function Mortise Lock that combines the sleek, modern aesthetic of the Pacific Beach (PBR) lever with the uncompromising strength of a Grade 1 chassis. Ideally suited for high-traffic commercial restrooms, private executive offices, and upscale hospitality settings, this lockset ensures user privacy while maintaining the highest standards of life safety and durability.
The Accentra 8802FL is engineered for "anti-panic" safety, allowing users to exit a room with a single motion, even when the deadbolt is engaged. With its 626/US26D Satin Chrome finish and cast stainless steel components, this mortise lockset is a premier choice for Commercial Door Hardware specifications that demand both style and industrial resilience.
Function Info: Privacy (8802)
- Latchbolt Operation: Retracted by the knob/lever from either side.
- Privacy Control: The 1" cast stainless steel deadbolt is operated by a thumbturn from the inside.
- Automatic Locking: When the deadbolt is projected, the outside knob/lever is automatically locked.
- Anti-Panic Operation: Operating the inside knob/lever retracts the latchbolt and deadbolt simultaneously, automatically unlocking the outside knob/lever.
- Emergency Access: In an emergency, the deadbolt may be unlocked from the outside by the E203 emergency key (supplied).
Key Features & Performance
- ANSI/BHMA Grade 1 Certified: Independently tested for long-life and durability in the most demanding industrial or commercial applications.
- 3-Hour Fire Rating: UL/cUL listed for use on fire-rated doors, ensuring building code compliance.
- Field Reversible: All locks are furnished as Right Hand (RH) but can be easily re-handed in the field to suit any door swing.
- Smooth Operation: Equipped with a 3/4" throw stainless steel one-piece anti-friction latchbolt for quiet and effortless closure.
- 10-Year Warranty: Backed by a premier mechanical warranty for decade-long reliability.
Technical Specifications
| Feature | Specification |
| Model Number | PBR 8802FL (Privacy) |

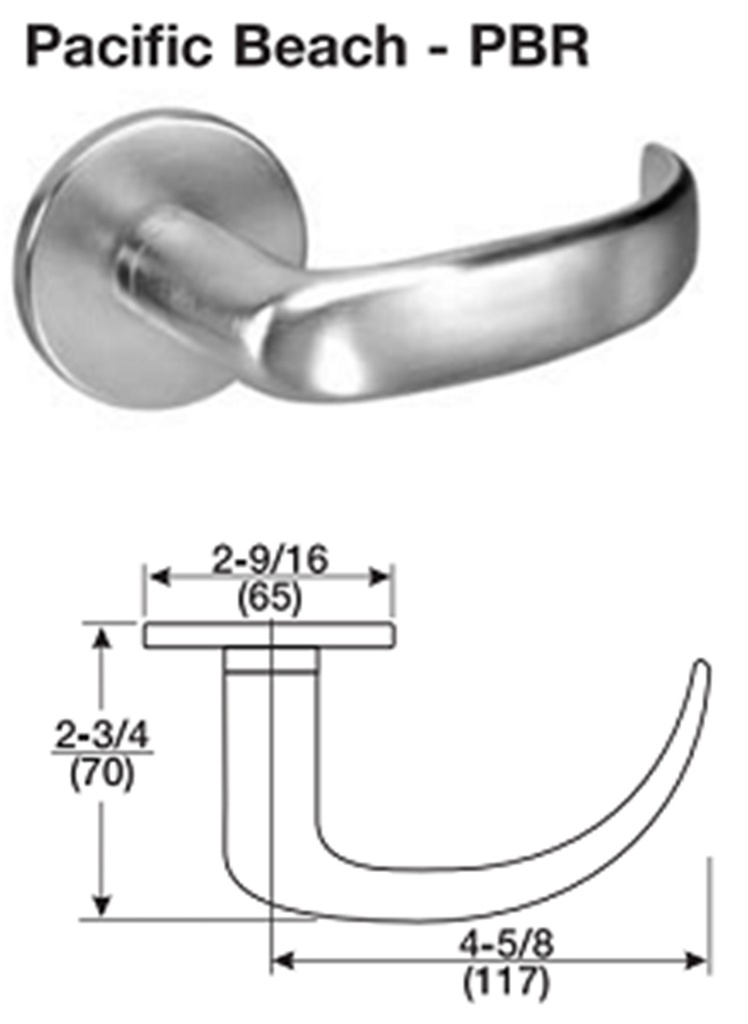

| Lever Design | Pacific Beach (PBR) |
| Finish | 626 / US26D Satin Chrome |
| Backset | 2-3/4" Only |
| Deadbolt | 1" Throw, Cast Stainless Steel |
| Latchbolt | 3/4" Throw, Stainless Steel Anti-Friction |
| Door Thickness | 1-3/4" Standard |
| Armor Front | 8" x 1-1/4" |
| Case | Wrought steel, zinc dichromate |
| Hubs | 3/8" solid steel, fine-blanked and heat treated |
| Strike | 4-7/8" ASA Strike Standard |
| Finish with BHMA code | 626 - US26D Satin Chrome |
| Brand | Accentra (formally Yale Security) |
| ANSI Mortise Lock Function | F22 - Privacy |
| Trim Design | PBR |
| Series | Accentra - 8800 Series |
| Occupancy Indicator | No |
