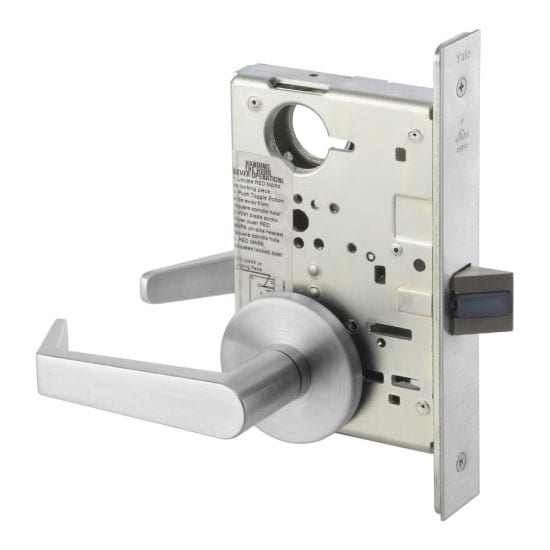

Accentra AUR 8802FL Privacy Mortise Lockset – Grade 1 Security & Safety
Function Info:
| • Latchbolt retracted by knob/lever either side. • Deadbolt operated by thumbturn inside. • When the deadbolt is projected, outside knob/lever is automatically locked. • Anti-panic operation. Operating inside knob/lever retracts the latchbolt and deadbolt simultaneously, automatically unlocking outside knob/lever. • In emergency, deadbolt may be unlocked from outside by E203 emergency key, supplied. |
The Accentra AUR 8802FL (formerly Yale 8800 series) is a heavy-duty Privacy Function Mortise Lock designed for commercial restrooms, changing rooms, and private offices where high-frequency use and user privacy are essential. This ANSI/BHMA Grade 1 certified lockset features the classic Augusta (AUR) lever and is engineered to provide a robust mechanical solution for the most demanding institutional environments.
The Accentra 8802FL offers an advanced safety profile, featuring anti-panic operation for immediate egress and an emergency override for authorized access from the exterior. With its 626/US26D Satin Chrome finish and wrought steel construction, this lockset is the definitive choice for Commercial Door Hardware projects requiring both elegance and industrial strength.
Function Info: Privacy (8802)
- Latchbolt Operation: Retracted by the knob/lever from either side.
- Deadbolt Control: Operated by a thumbturn from the inside for user privacy.
- Automatic Locking: When the deadbolt is projected, the outside knob/lever is automatically locked.
- Anti-Panic Operation: Operating the inside knob/lever retracts the latchbolt and deadbolt simultaneously, automatically unlocking the outside knob/lever.
- Emergency Override: In an emergency, the deadbolt may be unlocked from the outside by the E203 emergency key (supplied).
Key Performance Features
- Grade 1 Certification: Certified to ANSI/BHMA Grade 1 standards, ensuring millions of operational cycles and superior resistance to vandalism.
- Fire-Rated Integrity: UL / cUL Listed for use on fire doors up to 3 hours, maintaining critical building code and life-safety compliance.
- Heavy-Duty Construction: Features heat-treated solid steel hubs and a 1" throw cast stainless steel deadbolt for formidable protection.
- Field Reversible: All locks are furnished as Right Hand (RH) but can be easily re-handed in the field to accommodate any door swing.
- Smooth Operation: Equipped with a 3/4" throw stainless steel one-piece anti-friction latchbolt for quiet and effortless closure.
Technical Specifications
| Feature | Specification |
| Model Number | AUR 8802FL (Privacy) |
| Finish | 626 / US26D Satin Chrome |
| Backset | 2-3/4" Only |
| Deadbolt | 1" Throw Cast Stainless Steel |
| Latchbolt | 3/4" Throw Stainless Steel Anti-Friction |
| Armor Front | 8" x 1-1/4" |
| Door Thickness | 1-3/4" Standard |
| Strike | 4-7/8" ASA Strike Standard |
| Finish with BHMA code | 626 - US26D Satin Chrome |
| Brand | Accentra (formally Yale Security) |
| ANSI Mortise Lock Function | F22 - Privacy |

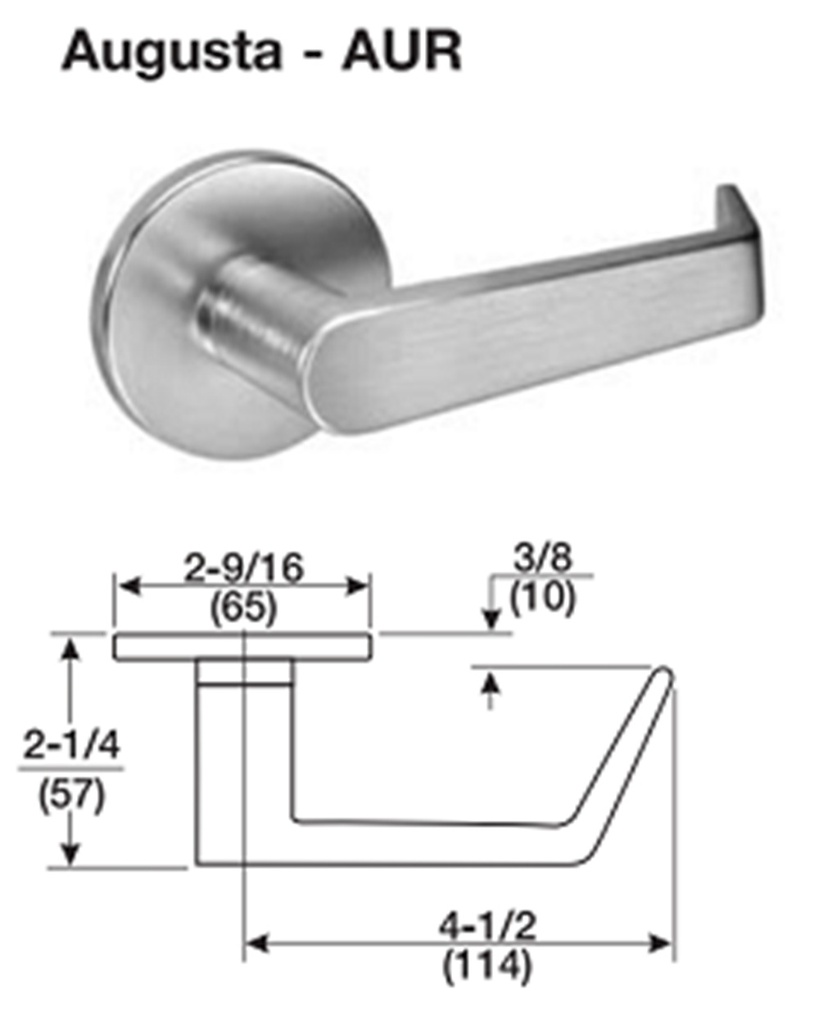

| Trim Design | AUR |
| Series | Accentra - 8800 Series |
| Occupancy Indicator | No |
