Accentra PBR 8801FL Passage Mortise Lockset – Grade 1 Performance
Function Info:
- Trim from either side retracts latchbolt at all times
- ANSI No. F01

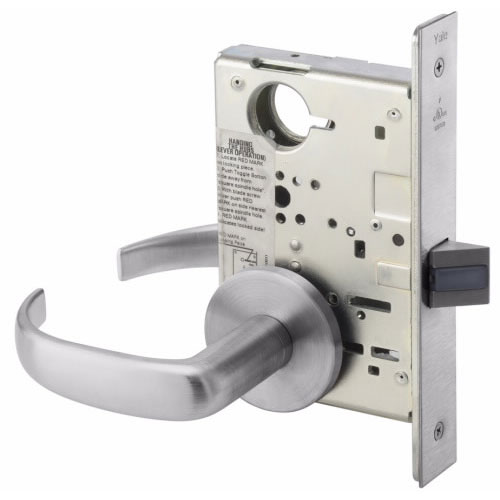

The Accentra PBR 8801FL (formerly Yale 8800 series) is a premier Passage Function Mortise Lock designed for high-traffic commercial and industrial openings where unrestricted access is required. Featuring the sleek, contemporary Pacific Beach (PBR) lever design, this ANSI/BHMA Grade 1 certified lockset provides the ultimate combination of architectural style and heavy-duty mechanical reliability.
Built to withstand demanding environments, the Accentra 8801FL is engineered with a wrought steel case and heat-treated solid steel hubs to resist vandalism and excessive wear. With a 626/US26D Satin Chrome finish and an anti-friction latchbolt, this mortise lockset is the ideal choice for hallway doors, closets, and transition spaces that require Commercial Door Hardware of the highest caliber.
Function Info: Passage (8801)
- Unrestricted Flow: Trim from either side retracts the latchbolt at all times.
- ANSI No. F01: Specifically designated for non-locking doors where durability is the primary requirement.
- Safety & Access: Provides a clear path of travel for high-traffic thoroughfares and emergency exit routes.
Key Features & Performance
- ANSI/BHMA Grade 1 Certified: Independently tested for long-life and durability in the most demanding industrial or commercial applications.
- 3-Hour Fire Rating: UL/cUL listed for use on fire-rated doors, ensuring building code compliance.
- Field Reversible: All locks are furnished as Right Hand (RH) but can be easily re-handed in the field to suit any door swing.
- Smooth Operation: Equipped with a 3/4" throw stainless steel one-piece anti-friction latchbolt for quiet and effortless closure.
- 10-Year Warranty: Backed by a premier mechanical warranty for decade-long reliability.
Technical Specifications
| Feature | Specification |
| Model Number | PBR 8801FL (Passage) |

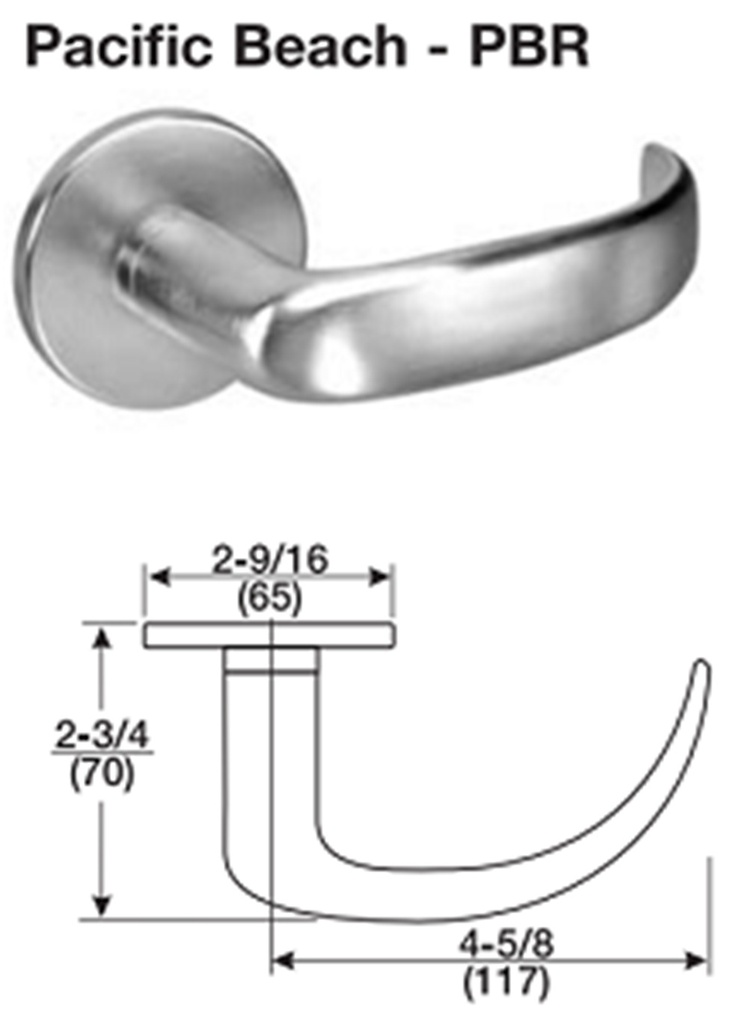

| Lever Design | Pacific Beach (PBR) |
| Finish | 626 / US26D Satin Chrome |
| Backset | 2-3/4" Only |
| Armor Front | 8" x 1-1/4" |
| Latchbolt | 3/4" Throw, Stainless Steel Anti-Friction |
| Door Thickness | 1-3/4" Standard |
| Case Construction | Wrought Steel, Zinc Dichromate Plated |
| Hubs | 3/8" Solid Steel, Fine-blanked and Heat Treated |
| Strike | 4-7/8" ASA Strike Standard |
| Finish with BHMA code | 626 - US26D Satin Chrome |
| Brand | Accentra (formally Yale Security) |
| ANSI Mortise Lock Function | F01 - Passage |
| Trim Design | PBR |
| Series | Accentra - 8800 Series |
