Accentra AUR 8801FL Passage Mortise Lockset – Grade 1 Durability
Function Info:
- Trim from either side retracts latchbolt at all times
- ANSI No. F01

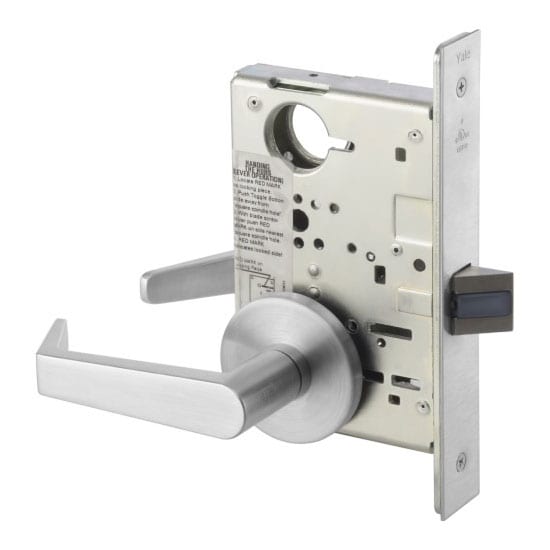

The Accentra AUR 8801FL (formerly Yale 8800 series) is a heavy-duty Passage Function Mortise Lock engineered for high-traffic commercial and industrial openings where security is not required, but mechanical longevity is paramount. This ANSI/BHMA Grade 1 certified lockset features the popular Augusta (AUR) lever design and is ideal for hallway doors, closets, and transition areas that require effortless, constant access.
Built to withstand the most demanding environments, the Accentra 8801FL features a wrought steel case and heat-treated solid steel hubs for superior strength. With its 626/US26D Satin Chrome finish and high-performance anti-friction latchbolt, this mortise lockset combines a professional aesthetic with the rugged construction needed for Commercial Door Hardware standardization.
Function Info: Passage (8801)
- Unrestricted Access: Trim from either side retracts the latchbolt at all times.
- ANSI No. F01: Designed specifically for doors that do not require locking but demand industrial-grade durability.
- Life Safety: Perfect for high-traffic thoroughfares where unhindered movement is essential for building flow.
Key Performance Features
- ANSI/BHMA Grade 1 Certified: Independently tested for long-life and durability in the most demanding industrial or commercial applications.
- 3-Hour Fire Rating: UL/cUL listed for use on fire-rated doors, ensuring building code compliance.
- Field Reversible: All locks are furnished as Right Hand (RH) but can be easily re-handed in the field to suit any door swing.
- Smooth Operation: Equipped with a 3/4" throw stainless steel one-piece anti-friction latchbolt for quiet and effortless closure.
- 10-Year Warranty: Backed by a premier mechanical warranty for decade-long reliability.
Technical Specifications
| Feature | Specification |
| Model Number | AUR 8801FL (Passage) |

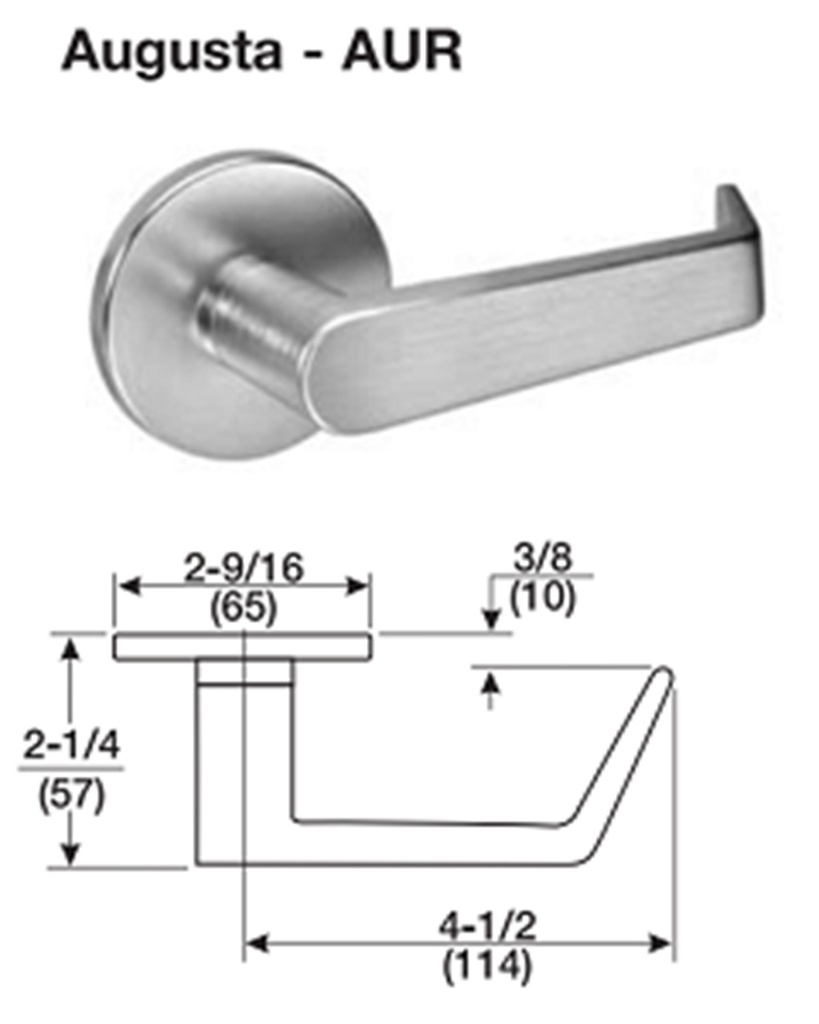

| Lever Design | Augusta (AUR) |
| Finish | 626 / US26D Satin Chrome |
| Backset | 2-3/4" Only |
| Armor Front | 8" x 1-1/4" |
| Latchbolt | 3/4" Throw, Stainless Steel Anti-Friction |
| Door Thickness | 1-3/4" Standard |
| Case | Wrought steel, zinc dichromate |
| Hubs | 3/8" solid steel, fine-blanked and heat treated |
| Strike | 4-7/8" ASA Strike Standard |
| Finish with BHMA code | 626 - US26D Satin Chrome |
| Brand | Accentra (formally Yale Security) |
| ANSI Mortise Lock Function | F01 - Passage |
| Trim Design | AUR |
| Series | Accentra - 8800 Series |
