CompX Timberline C165CB Cam Lock Kit – Universal Cabinet and Drawer Security
The CompX Timberline C165CB Cam Lock Kit is a versatile, universal cam lock solution engineered for commercial and light industrial cabinet and drawer applications. Designed to accommodate a wide range of locking situations, this kit provides flexible installation for both door and drawer configurations without the need for multiple separate components.
Product Overview

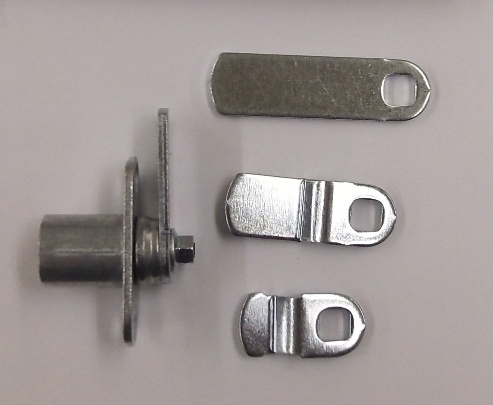

The C165CB kit ships with a cylinder body and a selection of interchangeable cams — including both straight and bent cams — so installers can configure the lock to match virtually any cabinet or drawer geometry. Bent cams feature a 15/32" setback, accommodating recessed or offset mounting conditions. The cylinder is supplied unplated, making it suitable for applications where a custom finish or anodized treatment will be applied in the field.
Cam rotation is 90° or 180°, locking in the counter-clockwise (CCW) direction — a standard orientation that integrates easily with existing keying systems and master key programs.
Note: The lock plug (cylinder core / keyed insert) is ordered separately, allowing buyers to specify their preferred keyway, keying level (keyed alike, keyed different, master keyed), or restricted keyway system to suit facility key control requirements.
Key Benefits
- Universal fit — compatible with both door and drawer applications in a single kit
- Multiple cam options — straight and bent cams included for maximum installation flexibility
- Field-configurable rotation — 90° or 180° cam travel to match cabinet or drawer stroke requirements
- Separate plug ordering — choose your own keyway or keying system without being locked into a single option
- Unplated cylinder body — finish flexibility for matching or custom cabinet hardware programs
- Compact, proven cam lock format — widely used in commercial cabinetry, office furniture, equipment enclosures, and storage units
Typical Applications
- Commercial office furniture and lateral file cabinets
- Equipment enclosures and electrical panel access doors
- Storage lockers and utility drawers
- Point-of-sale counters and retail display cases
- Healthcare and laboratory cabinet security
- Replacement cam lock in existing commercial cabinetry programs
Technical Details
| Feature | Details |
|---|---|
| Manufacturer | CompX Timberline |
| Model / Part Number | C165CB |
| Application | Universal — doors or drawers |
| Cam Rotation | 90° and 180° |
| Lock Direction | Counter-clockwise (CCW) to lock |
| Cams Included | Two straight cams and bent cams; bent cam setback 15/32" |
| Cylinder Finish | Unplated |
| Lock Plug | Ordered separately (specify keyway and keying) |
| Kit Contents | Cylinder body with variety of switchable cams |
For facility managers and purchasing agents maintaining large cabinet lock programs, the C165CB's separate-plug design supports master keying and key control programs without replacing the entire lock body — reducing long-term hardware maintenance costs.
| Brand | CompX Timberline |
