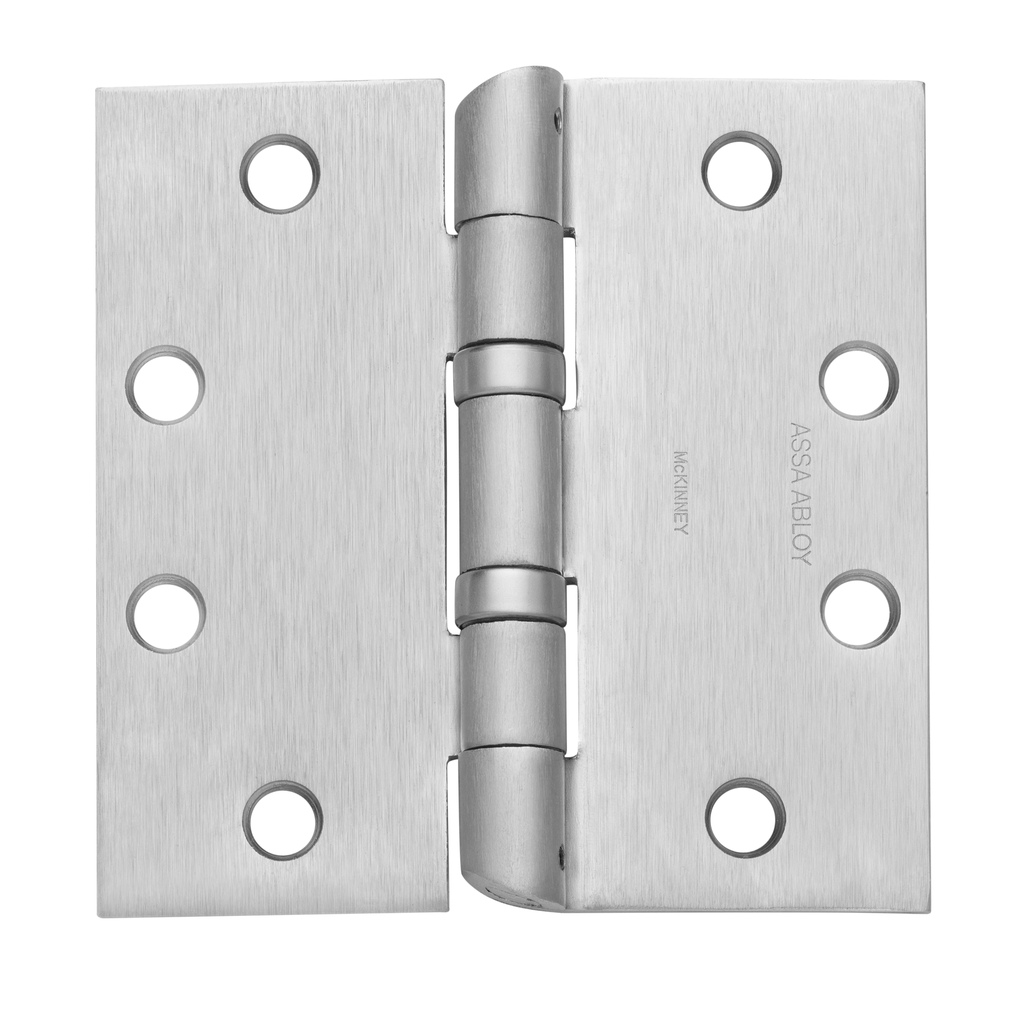

McKinney HTA2714 Hospital Tip Hinge | 4-1/2" x 4-1/2" US26D Satin Chrome
The McKinney HTA2714 is a specialized hospital tip bearing hinge engineered for high-sanitation and high-security environments in commercial construction. Featuring a .134 standard weight thickness, this 5-knuckle, full mortise hinge is the premier solution for door restoration in healthcare facilities, psychiatric wards, and correctional institutions. Finished in US26D Satin Chrome, it combines a professional architectural aesthetic with advanced safety engineering.
Integrated Security: Hospital Tip (HT) Design
The Hospital Tip feature is a critical safety innovation. Unlike standard hinges, it features a one-piece non-removable pin with tapered tips.
- Ligature Resistant: The sloped, tapered barrel ends help prevent the attachment of cords or other items, making it a vital solution for commercial door security in patient-care areas.
- Tamper-Proof Security: The design makes the pin virtually non-removable, providing an inherent non-removable pin (NRP) function that prevents unauthorized door removal.
- Simplified Maintenance: The smooth, sloped tips are easier to clean and prevent the accumulation of dust and debris.
Advanced Oil Impregnated Bearings (TA Prefix)
The TA Prefix identifies McKinney’s specialized self-lubricating bearing system. These one-piece, non-ferrous bearings ensure:
- Superior Durability: Drastically reduces friction for a smoother, silent door swing and high resistance to hinge failure.
- Clog & Corrosion Resistance: Specifically engineered to resist environmental contaminants, ensuring consistent performance in demanding clinical environments.
- Maintenance-Free Life: Acts as a permanent solution for door edge reinforcement without the need for manual lubrication.
Technical Details & Specifications
- Brand: McKinney (ASSA BLOY)
- Model: HTA2714
- Dimensions: 4-1/2" Height x 4-1/2" Width (Standard Weight .134 Gauge)
- Finish: US26D (626) Satin Chrome Plated
- ANSI/BHMA A156.1 Compliant: Corresponds to industry-standard ANSI A8112.
- Fasteners Included: Furnished with all Wood Screws (1-1/4" x 12 FPHW) and all Machine Screws (1/2" x 12-24 FPHM).
- Installation: Features a template screw hole pattern for precision alignment and rapid field replacement in commercial steel or wood frames.
Why Choose the McKinney HTA2714?
The McKinney HTA2714 is the definitive choice for healthcare and institutional projects where safety and reliability are non-negotiable. Whether you are performing a solution for door surface repair or outfitting a new medical wing, its combination of self-lubricating bearings and security-focused tapered tips ensures your openings remain safe, hygienic, and functional for years to come.
| General - US Finishes | US26D - Satin Chrome |
| Brand | McKinney |
| Hinge Height | 4.5" Hi |
| Hinge Width | 4.5" Wi |
| Hinge Grade/Thickness | Standard Wt .119 to .146 |
| Hinge Type | Full Mortise |
| Hinge Options | HT (Hospital Tip), Ball Bearing |
| Base Material | Steel |
| Hinge Corners | Square |
