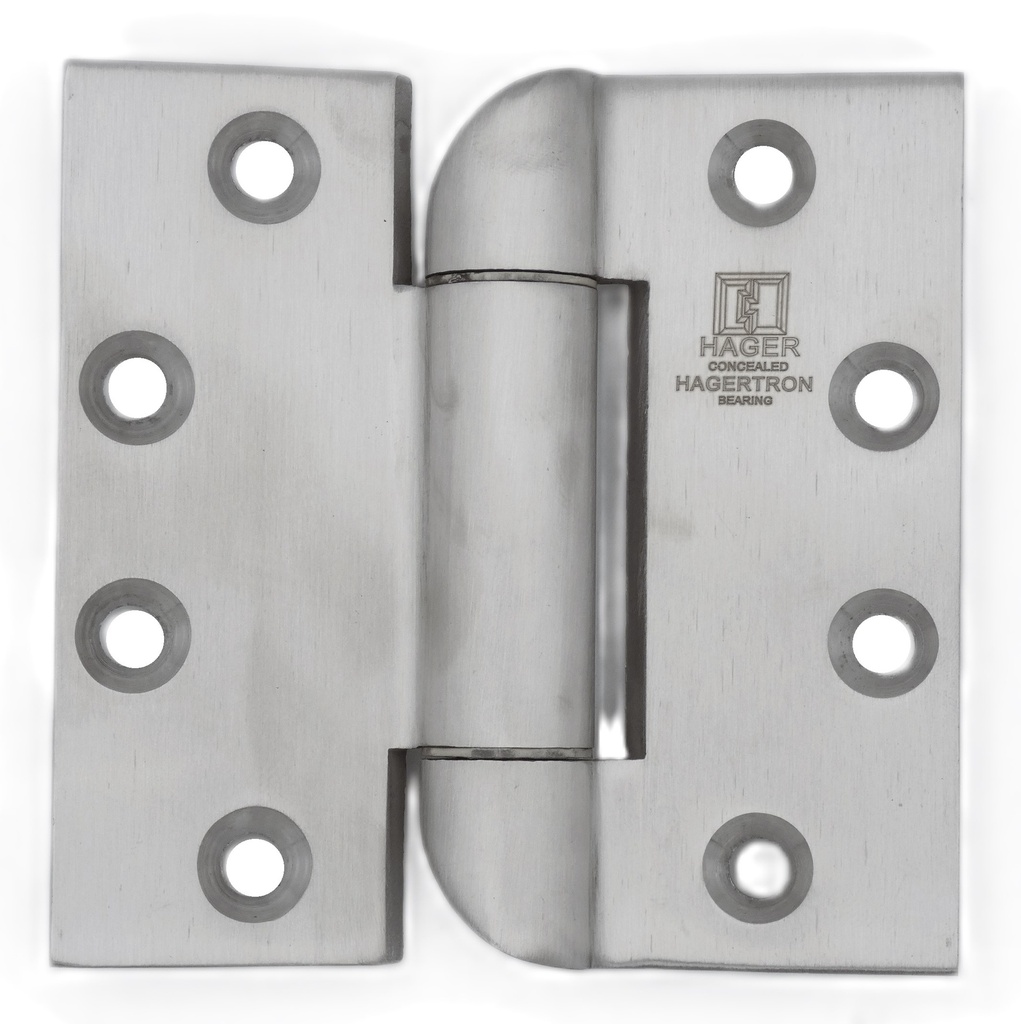

Hager IHT-HB953 Institutional Heavy Weight Hinge – Hospital Tip & Security Stud
The Hager IHT-HB953 is an ultra-heavy-duty Institutional Stainless Steel Hinge specifically engineered for the high-security demands of detention centers, psychiatric hospitals, and correctional facilities. Measuring 4-1/2" x 4-1/2" with an extreme .187 metal thickness, this hinge is designed to support heavyweight doors ranging from 250 to 600 lbs. Featuring a Hospital Tip (HT) for anti-ligature safety and a Reverse Security Stud to prevent door removal, the IHT-HB953 is the premier choice for life-safety and high-risk environments.
Maximum Security and Anti-Ligature Engineering
The IHT-HB953 integrates advanced security features directly into its investment-cast stainless steel body to ensure occupant safety and facility integrity.
- Anti-Ligature Hospital Tip: The top of the hinge is sloped and welded to prevent the attachment of cords or cloth, providing a critical safety barrier in behavioral health and detention settings.
- Reverse Security Stud: An integrated security stud ensures that the door remains locked within the frame even if the hinge knuckles are attacked or the pin is tampered with.
- Hagertron Concealed Bearings: Equipped with two maintenance-free concealed bearings that provide a smooth, silent swing under immense weight without the need for periodic lubrication.
- Tamper-Proof Fasteners: Furnished standard with Security Torx Flat Head Machine Screws (1/2" x 1/4-20) to prevent unauthorized removal using standard tools.
Technical Specifications
| Feature | Details |
| Model | Hager IHT-HB953 |
| Hinge Type | Full Mortise / Institutional Heavy Weight |
| Dimensions | 4-1/2" x 4-1/2" (114 mm x 114 mm) |
| Metal Thickness | .187 Gauge (Heavy Weight) |
| Material | Stainless Steel with Stainless Steel Pin |
| ANSI Standard | Meets ANSI A5111 |
| Bearing Type | 2 Concealed Hagertron Maintenance-Free Bearings |
| Knuckles | 3-Knuckle Investment Cast |
| Weight Capacity | 250 lbs to 600 lbs |
| Security Features | Hospital Tip, Reverse Security Stud, Welded Pin |
Advanced Electrification Options
For modern access control and monitoring, the IHT-HB953 can be customized with several electrification options (available by quote) to integrate seamlessly with your security network:
- Electric Monitor (EMN): Provides a signal to the security desk when the door is opened or closed.
- Electric Through-Wire (ETW): Allows for the transfer of low-voltage power to electrified locks or exit devices.
- Electric Through-Wire & Monitor (ETM): Combines both power transfer and monitoring capabilities into a single hinge unit.
Why Choose the Hager IHT-HB953?
For architects and security consultants, the Hager IHT-HB953 is a high-intent hardware solution for "Category 1" security openings. Its Stainless Steel construction is naturally corrosion-resistant and capable of withstanding the physical abuse common in detention environments. By meeting ANSI A5111 standards, this hinge ensures that heavy-traffic, high-risk doors remain functional and secure for the life of the building.
Ideal Applications:
- Correctional Facilities: Maximum security for cell doors and sally ports.
- Behavioral Health Units: Anti-ligature tips for patient room safety.
- High-Security Government Buildings: Supporting heavy, armored, or lead-lined doors.
- Extreme Traffic Institutional Entrances: Where standard hinges fail under weight or frequency.
| General - US Finishes | US32D - Satin Stainless Steel/ 630 |
| Brand | Hager |
| Hinge Height | 4.5" Hi |
| Hinge Width | 4.5" Wi |
| Hinge Grade/Thickness | Heavy Wt .180 to .190 |
| Hinge Type | Full Mortise |
| Hinge Options | Concealed Bearing, RSS (Reverse Safety Stud), HT (Hospital Tip) |
| Base Material | Stainless Steel |
| Hinge Corners | Square |
