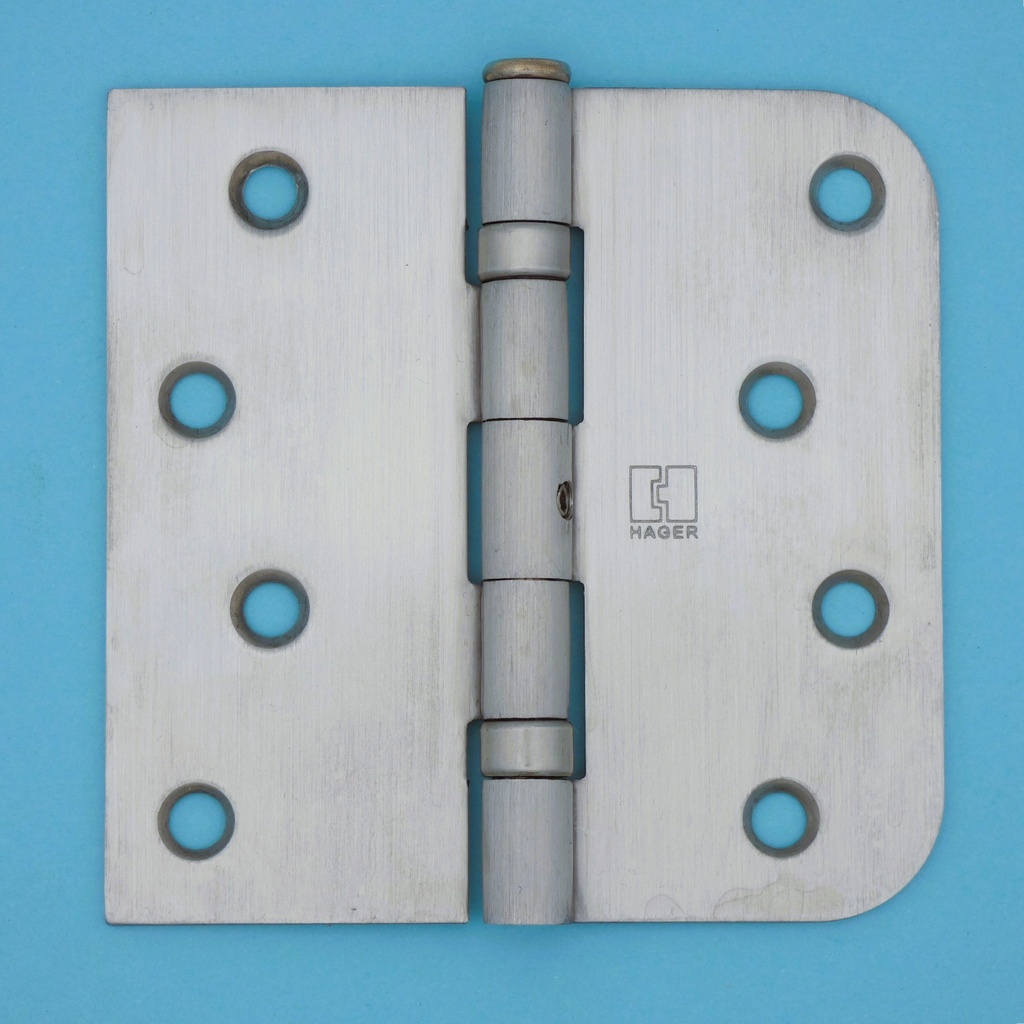

Hager BB1543 4.0" x 4.0" NRP Non-Ferrous Hinge – Half Square x 5/8" Radius
The Hager BB1543 4" x 4" is a specialized residential security hinge designed for doors with unique mortise requirements. This hinge features a Half Square / Half Radius configuration—one hinge leaf is designed with square corners, while the other features a 5/8" radius rounded corner. This makes it the perfect solution for matching a square-cut door with a radius-cut frame (or vice versa) without the need for additional mortising.
Constructed from Non-Ferrous materials, the BB1543 is available in either Solid Brass or Stainless Steel. Because these materials do not contain iron, they are naturally rust-proof, making this hinge the ideal choice for exterior doors in coastal environments or high-humidity regions.
High-Security NRP Engineering
For maximum protection, this hinge is equipped with a Non-Removable Pin (NRP). This is a critical security upgrade for any home:
- Tamper Resistance: The NRP feature prevents the pin from being hammered out from the outside, even if the hinge barrel is fully exposed.
- Outward Swing Security: Specifically designed for out-swinging doors, ensuring that intruders cannot bypass the lock by simply removing the hinge pins.
- Long-Term Reliability: The pin is engineered to withstand tampering while maintaining the smooth, plain-bearing operation Hager is known for.
Technical Specifications
| Feature | Specification |
| Model | Hager BB1543 |
| Dimensions | 4.0" x 4.0" |
| Leaf Configuration | Half Square (1 Leaf) x 5/8" Radius (1 Leaf) |
| Security Feature | Non-Removable Pin (NRP) |
| Metal Gauge | .085 Thickness |
| Brass Material | ANSI A2134 (Brass with Brass Pin) |
| Stainless Material | ANSI A5134 (Stainless Steel with Stainless Pin) |
| Standard Handing | Assembled Right Hand (Field Reversible) |
| Available Finishes | US3 (Bright Brass), US10R/US10B (Bronze), US32D (Satin Stainless) |
| Pin Style | Removable Pin with Button Tip and Plug |
Installation & Maintenance
- Fasteners: Furnished standard with wood screws (3/4 x 9 FH). Machine screws are available, please reference Hager #1340 Residential Hinge Machine Screw.
- Lubrication Requirements: Hager residential hinges are provided without factory lubrication. It is highly recommended to apply a lubricant, such as lithium grease, during or after installation to ensure silent and smooth operation.
- Packaging: Sold individually (Pricing is Per Hinge).
| General - US Finishes | US32D - Satin Stainless Steel/ 630 |
| Brand | Hager |
| Hinge Height | 4.0" Hi |
| Hinge Width | 4.0" Wi |
| Hinge Grade/Thickness | Residental Wt .085 to .106 |
| Hinge Type | Full Mortise |
| Hinge Options | Ball Bearing, NRP (Non Removable Pin) |
| Base Material | Stainless Steel, Brass |
| Hinge Corners | Half Square-Half 5/8 Radius |
