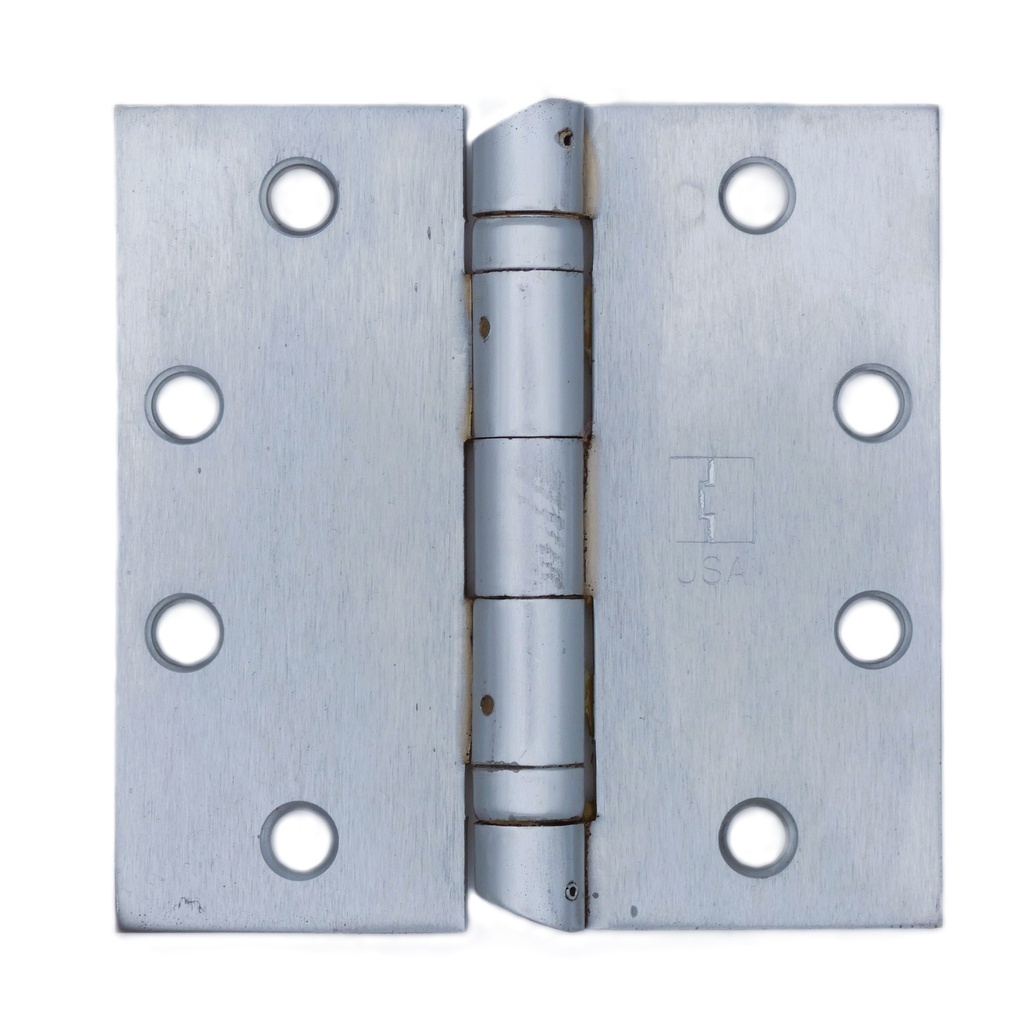

Hager HT-BB1279 Hospital Tip Ball Bearing Hinge – 4-1/2" x 4-1/2" US26D
The Hager HT-BB1279 is a specialized Hospital Tip (HT) Ball Bearing Hinge engineered for high-security environments, including healthcare facilities, psychiatric wards, and correctional institutions. Finished in professional US26D Satin Chrome, this 4.5" x 4.5" hinge features a sloped "hospital tip" designed to prevent the hanging of objects, providing a critical anti-ligature safety feature. Built to ANSI A8112 standards, the HT-BB1279 combines institutional strength with advanced safety components to ensure long-term performance in sensitive areas.
Anti-Ligature and High-Security Design
The Hospital Tip configuration is an essential innovation for patient and inmate safety. Hager goes beyond the tip design by integrating several security-focused mechanical upgrades as standard.
- Ligature-Resistant Tip: The sloped top knuckle prevents cords, clothing, or other objects from being looped over the hinge, mitigating self-harm risks in security areas.
- Integrated Security Components: Every hospital-tipped hinge is furnished with a Non-Removable Pin (NRP) set screw in the center knuckle, two cross pins, and a high-strength Stainless Steel hinge pin.
- Stainless Steel Bearings: To prevent corrosion and ensure a smooth swing in all environments, the ball bearing components are crafted from Stainless Steel.
- Maintenance Ready: Includes an integrated oil port for easy lubrication, ensuring the hinge operates silently and smoothly throughout its lifespan.
Technical Specifications
| Feature | Details |
| Model | Hager HT-BB1279 |
| Hinge Type | Full Mortise / Hospital Tip (HT) |
| Dimensions | 4-1/2" x 4-1/2" (114 mm x 114 mm) |
| Finish | US26D (Satin Chrome) |
| Material | Steel with Stainless Steel Pin |
| Bearing Type | 2 Stainless Steel Ball Bearings |
| Metal Thickness | .134 Gauge (Standard Weight) |
| Security Features | NRP Set Screw, 2 Cross Pins, Anti-Ligature Tip |
| ANSI Standard | ANSI A8112 |
| Door Thickness | Standard 1-3/4" (44 mm) |
Hardware & Custom Security Fasteners
| Component | Fastener Type |
| Standard Wood Screws | 1-1/4" x 12 FPHW (Included) |
| Standard Machine Screws | 1/2" 12-24 FPHM (Included) |
| Security Options | Torx or Spanner Head (Available via quote) |
| Lubrication | Integrated Oil Port |
Why Choose the Hager HT-BB1279?
For architects and facility managers in the healthcare and justice sectors, the Hager HT-BB1279 represents a high-intent investment in safety and liability reduction. Its ball bearing construction makes it suitable for doors equipped with automatic closers, while the US26D finish provides a clean, easy-to-sanitize surface. This hinge is the industry standard for creating a secure, ligature-resistant environment without sacrificing the heavy-duty performance required for 1-3/4" commercial doors.
Ideal Applications:
- Behavioral Health Units: Essential anti-ligature protection for patient room doors.
- Correctional Facilities: High-security hinge pins prevent tampering and unauthorized door removal.
- Hospital Security Areas: Durable, smooth operation for restricted access zones.
- High-Traffic Medical Corridors: Stainless steel bearings ensure longevity under constant use.
| General - US Finishes | US26D - Satin Chrome |
| Brand | Hager |
| Hinge Height | 4.5" Hi |
| Hinge Width | 4.5" Wi |
| Hinge Grade/Thickness | Standard Wt .119 to .146 |
| Hinge Type | Full Mortise |
| Hinge Options | HT (Hospital Tip), Ball Bearing |
| Base Material | Steel |
| Hinge Corners | Square |
