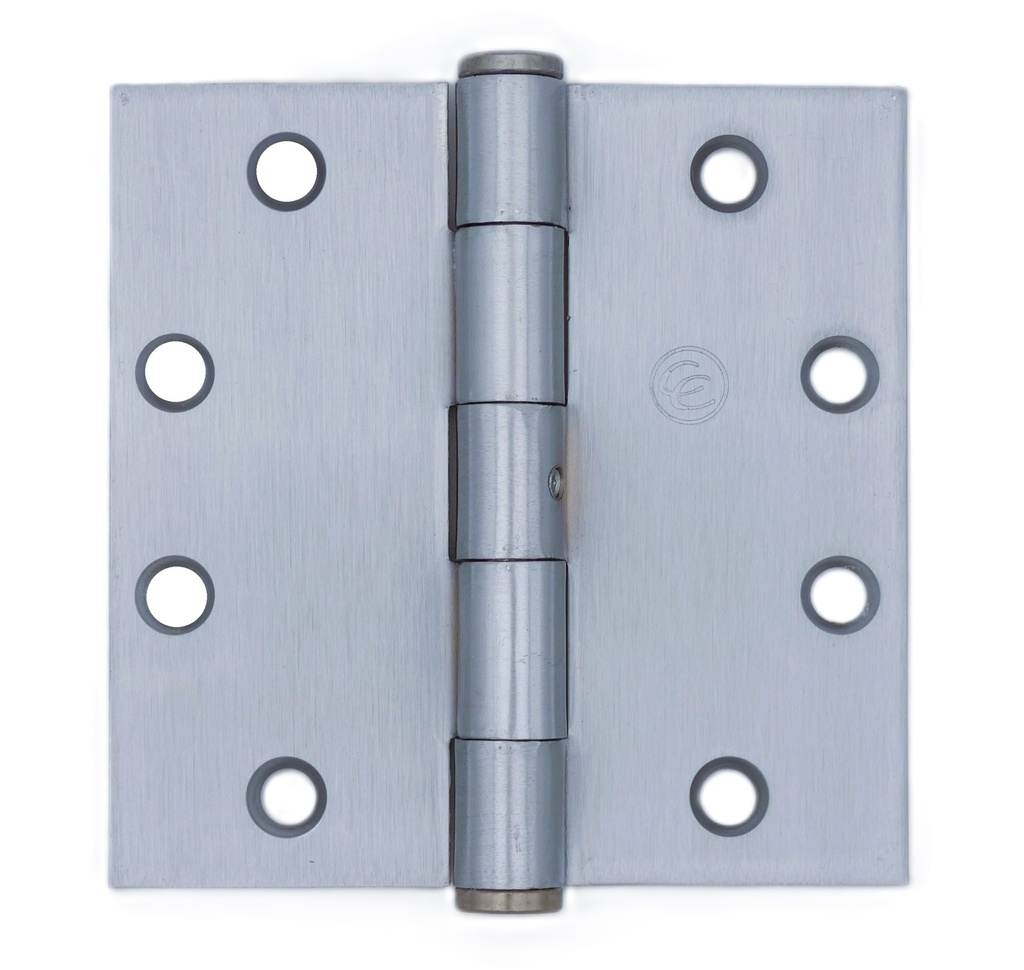

Hager EC1100 NRP 4-1/2" x 4-1/2" Full Mortise - Plain Bearing Hinge, Steel with Plated Finish
The Hager Ecco EC1100 NRP is a security-enhanced Full Mortise Plain Bearing Hinge designed for standard-weight doors in residential and light commercial applications. Measuring 4.5" x 4.5" and finished in professional architectural plating, this steel hinge is specifically engineered for 1-3/4" thick doors requiring low-frequency service. The standout Non-Removable Pin (NRP) feature provides a critical layer of protection for outswinging doors, ensuring that your property remains secure against unauthorized entry.
Why Choose the NRP (Non-Removable Pin) Feature?
The NRP technology is a vital innovation for any door where security is a priority. By incorporating a specialized set screw within the hinge barrel, the Hager EC1100 NRP prevents intruders from removing the hinge pins to detach the door leaf.
- Enhanced Security: Ideal for exterior doors or sensitive interior areas, the NRP ensures the door cannot be removed from the outside even if the hinges are accessible.
- Optimal for Outward Swinging Doors: In outswing configurations, hinge pins are naturally exposed to the exterior. The NRP feature effectively mitigates this vulnerability.
- Durability and Peace of Mind: The pin is designed to withstand tampering, offering long-term reliability without compromising the aesthetics or functionality of the door.
Technical Specifications
| Feature | Details |
| Model | Hager Ecco EC1100 NRP |
| Hinge Type | Full Mortise / Plain Bearing |
| Dimensions | 4-1/2" x 4-1/2" (114 mm x 114 mm) |
| Metal Thickness | .134 Gauge (Standard Weight) |
| Base Material | Steel with Steel Pin |
| Security Feature | NRP (Non-Removable Pin) |
| ANSI Standard | Meets ANSI A8133 |
| Door Thickness | Designed for 1-3/4" (44 mm) Doors |
| Pin Style | Non-rising with button tip and plug |
Finish & Installation Notes
The Hager EC1100 NRP is built for a flush-mount, architectural fit and comes supplied with a versatile fastener pack.
- Stock Finishes: USP (Prime for Paint) and US26D (Satin Chrome).
- Available by Quote: US3 (Bright Brass), US4 (Satin Brass), US10B (Oil Rubbed Bronze), US15 (Satin Nickel), and US26 (Bright Chrome).
- Fastener Kit: Furnished standard with all wood screws (1-1/4" x 12 FPHW) and all machine screws (1/2" 12-24 FPHM) for mounting on wood or hollow metal frames.
- Plain Bearing Usage: Per industry safety standards, doors equipped with automatic closers or those designated as UL Fire Rated Doors should utilize ball bearing hinges to handle increased lateral stress.
Perfect Balance of Security and Value
For homeowners and contractors, the Hager EC1100 NRP represents a high-intent hardware choice that doesn't sacrifice aesthetics for safety. Its five-knuckle design and robust steel construction ensure your door hangs level and operates smoothly for years to come.
Ideal Applications:
- Exterior Residential Doors: Secure outswing entry points for patios or backdoors.
- Commercial Storage Areas: Safeguarding restricted inventory and supply rooms.
- Low-Traffic Offices: Providing a professional finish that coordinates with standard architectural hardware.
| General - US Finishes | US26D - Satin Chrome or USP - Prime Painted |
| Brand | Hager |
| Hinge Height | 4.5" Hi |
| Hinge Width | 4.5" Wi |
| Hinge Grade/Thickness | Standard Wt .119 to .146 |
| Hinge Type | Full Mortise |
| Hinge Options | Plain Bearing, NRP (Non Removable Pin) |
| Base Material | Steel |
| Hinge Corners | Square |
