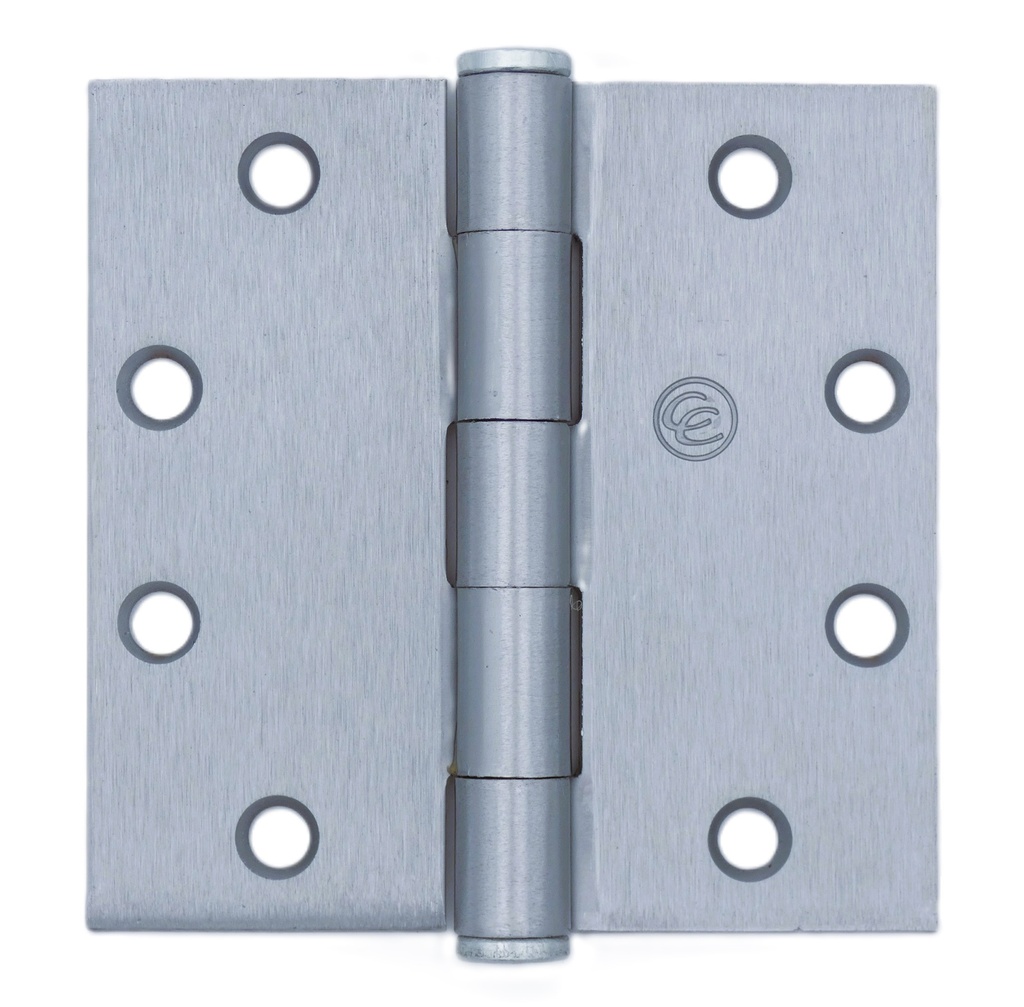

Hager EC1100 4-1/2" x 4-1/2" Full Mortise - Plain Bearing Hinge, Steel with Plated Finish
The Hager EC1100 is a reliable, value-engineered Full Mortise Plain Bearing Hinge designed for standard-duty applications in both residential and light commercial projects. Measuring 4.5" x 4.5" and crafted from high-strength steel, this hinge is the ideal solution for 1-3/4" thick doors that experience low-frequency traffic. Meeting ANSI A8133 standards, the EC1100 provides a clean, professional fit for interior openings where consistent performance and budget-friendly pricing are top priorities.
Versatile Standard-Duty Design
The Hager EC1100 series focuses on structural integrity for openings that do not require the continuous load-bearing support of ball bearings.
- Durable Steel Construction: Manufactured with a robust steel body and a matching steel pin to provide a rigid, dependable pivot point for wood or hollow metal doors.
- Plain Bearing Operation: Specifically engineered for medium-weight doors in low-frequency service areas, such as private offices, supply closets, or residential rooms.
- Non-Rising Removable Pin: Features a specialized pin with a button tip and plug that stays seated during operation but can be easily removed for door hanging or maintenance.
- Complete Fastener Kit: Every hinge is furnished standard with a full set of all wood screws (1-1/4" x 12 FPHW) and all machine screws (1/2" 12-24 FPHM), allowing for seamless mounting to both wood and metal frames.
Technical Specifications
| Feature | Details |
| Model | Hager EC1100 |
| Hinge Type | Full Mortise / Plain Bearing |
| Dimensions | 4-1/2" x 4-1/2" (114 mm x 114 mm) |
| Metal Thickness | .134 Gauge (Standard Weight) |
| Material | Steel with Steel Pin |
| ANSI Standard | Meets ANSI A8133 |
| Door Thickness | Standard 1-3/4" (44 mm) |
| Pin Style | Non-rising removable pin with button tip and plug |
Finish & Application Details
| Category | Details |
| Stock Finishes | USP (Prime for Paint), US26D (Satin Chrome), US10B (Oil Rubbed Bronze), US3 (Bright Brass) |
| Available by Quote | US4 (Satin Brass), US15 (Satin Nickel), US26 (Bright Chrome) |
| Recommended Use | Low-frequency service / Medium-weight doors |
| Usage Note | Doors with closers or UL Fire Rated Doors should use ball bearing hinges |
Why Choose the Hager Ecco EC1100?
For contractors, property managers, and developers, the Hager Ecco EC1100 represents a high-intent hardware choice that balances architectural quality with cost-effectiveness. The EC1100 is a perfect choice for tenant build-outs or residential renovations where a standard 4.5" template is required. By selecting Hager’s Ecco line, you ensure your doors hang level and operate reliably without the unnecessary expense of heavy-duty bearing components.
Ideal Applications:
- Commercial Office Interiors: Durable pivot points for low-traffic interior office doors.
- Residential Renovations: High-quality hinges for 1-3/4" thick interior doors.
- Multi-Family Housing: A cost-effective solution for standard apartment unit entries (non-fire rated).
- Utility & Storage Rooms: Providing dependable support for low-frequency service areas.
| General - US Finishes | US26D - Satin Chrome or US26 - Polished Chrome or US15 - Satin Nickel or US3 - Polished Brass or US4 - Satin Brass or US10B - Oil Rubbed Bronze or USP - Prime Painted |
| Brand | Hager |
| Hinge Height | 4.5" Hi |
| Hinge Width | 4.5" Wi |
| Hinge Grade/Thickness | Standard Wt .119 to .146 |
| Hinge Type | Full Mortise |
| Hinge Options | Plain Bearing |
| Base Material | Steel |
| Hinge Corners | Square |
