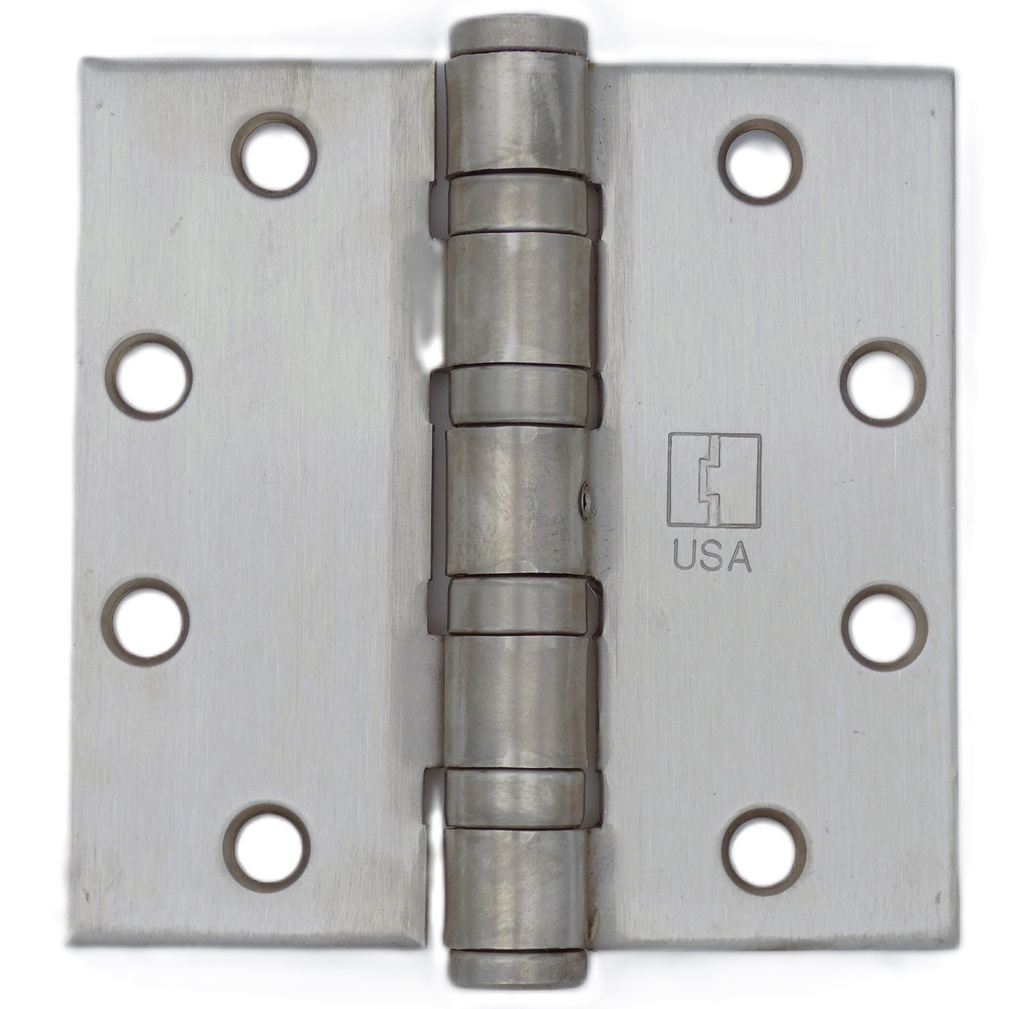

Hager BB1199 NRP 4-1/2" x 4-1/2" Heavy Weight Ball Bearing Hinge
The Hager BB1199 NRP represents the pinnacle of high-security commercial door hardware. This heavy-weight full mortise hinge is specifically designed for high-frequency service on heavy doors in environments where security and durability are the top priorities. Available in non-ferrous materials like Stainless Steel and Brass, it offers exceptional resistance to the elements while maintaining its structural integrity.
Maximum Security with Non-Removable Pin (NRP)
For outward-swinging doors, the hinge pin is often the weakest point of a security system. The NRP (Non-Removable Pin) feature solves this by incorporating a hidden set screw in the hinge barrel that can only be accessed when the door is open. This prevents intruders from tapping out the pin from the outside, ensuring your door remains securely attached to the frame even under tampering. For secure exterior door installations, the Hager BB1199 NRP is an essential upgrade.
Engineered for Heavy-Duty Performance
With a robust .180 gauge thickness and four ball bearings, the BB1199 is built to support the heaviest commercial doors. The ball bearing design reduces friction, ensuring a smooth, quiet swing and preventing door sag over years of high-frequency use. This makes it the preferred choice for hospitals, schools, and high-traffic government buildings.
Technical Specifications
| Feature | Specification |
| Model Number | Hager BB1199 NRP |
| Dimensions | 4-1/2" x 4-1/2" (114mm x 114mm) |
| Hinge Type | Full Mortise - Heavy Weight - Ball Bearing |
| Materials | Brass (w/ SS Pin) or Stainless Steel (Type 304L) |
| Gauge (Thickness) | 0.180" |
| Security Feature | Non-Removable Pin (NRP) |
| Bearing Count | 4 Ball Bearings |
| Door Thickness | Optimized for 1-3/4" (44mm) Doors |
| Standards | ANSI A2111 (Brass) / ANSI A5111 (Stainless Steel) |
| Pin Style | Non-rising removable pin with button tip and plug |
Installation and Fasteners
Every Hager heavy-weight hinge is furnished with a complete set of high-quality fasteners to ensure a permanent and secure fit:
- Machine Screws: (8 ea) 1/2" 12-24 FPHM (Ideal for metal frame/door applications)
- Wood Screws: (4 ea) 1-1/4" x 12 FPHW (For wood door/frame applications)
Critical Material & Fire Safety Note
- Stainless Steel (US32D): Complies with ANSI A5111 and is permitted on UL Fire Rated Door Openings.
- Brass (US10B, US26D): Complies with ANSI A2111. PLEASE NOTE: Hinges with a Brass base material are not allowed on UL Fire Rated Door Openings per NFPA 80.
| General - US Finishes | US26D - Satin Chrome or US32D - Satin Stainless Steel/ 630 or US10B - Oil Rubbed Bronze |
| Brand | Hager |
| Hinge Height | 4.5" Hi |
| Hinge Width | 4.5" Wi |
| Hinge Grade/Thickness | Heavy Wt .180 to .190 |
| Hinge Type | Full Mortise |
| Hinge Options | Ball Bearing, NRP (Non Removable Pin) |
| Base Material | Stainless Steel, Brass |
| Hinge Corners | Square |
