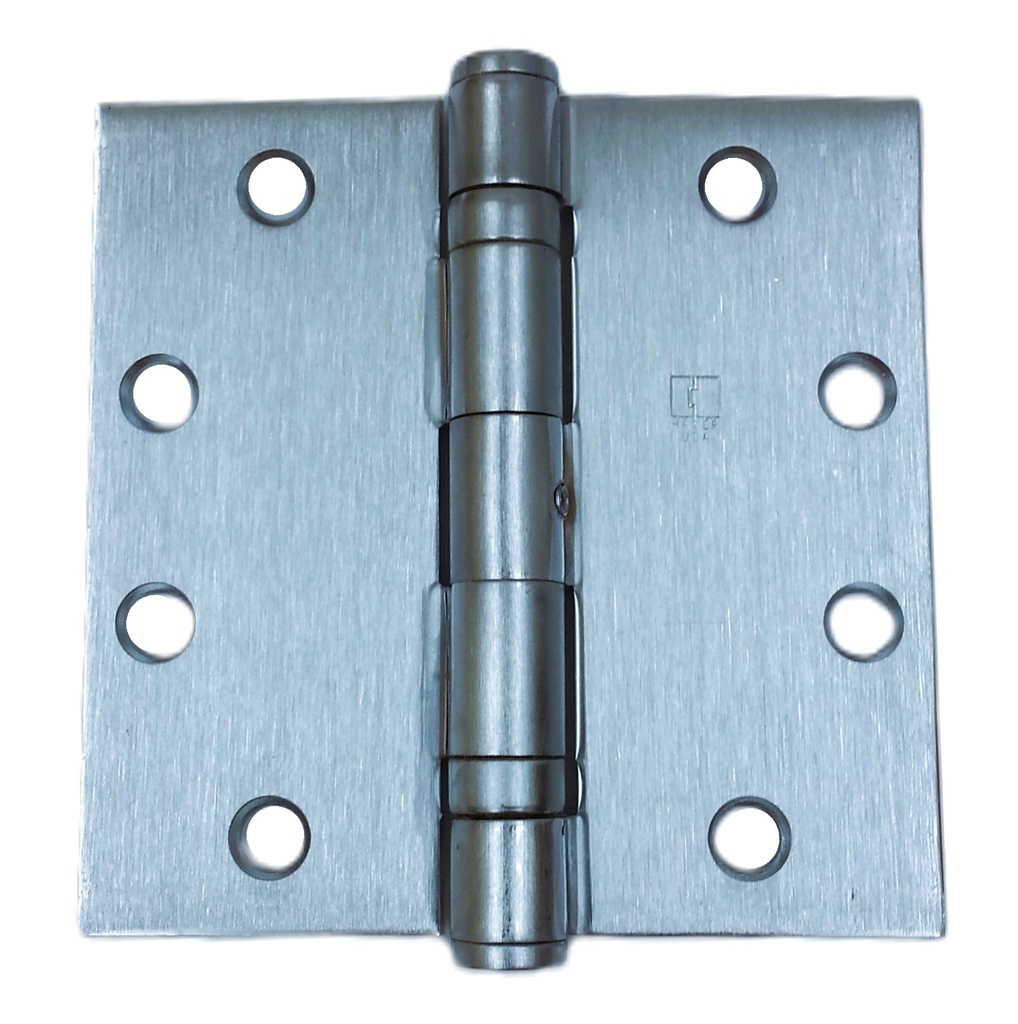

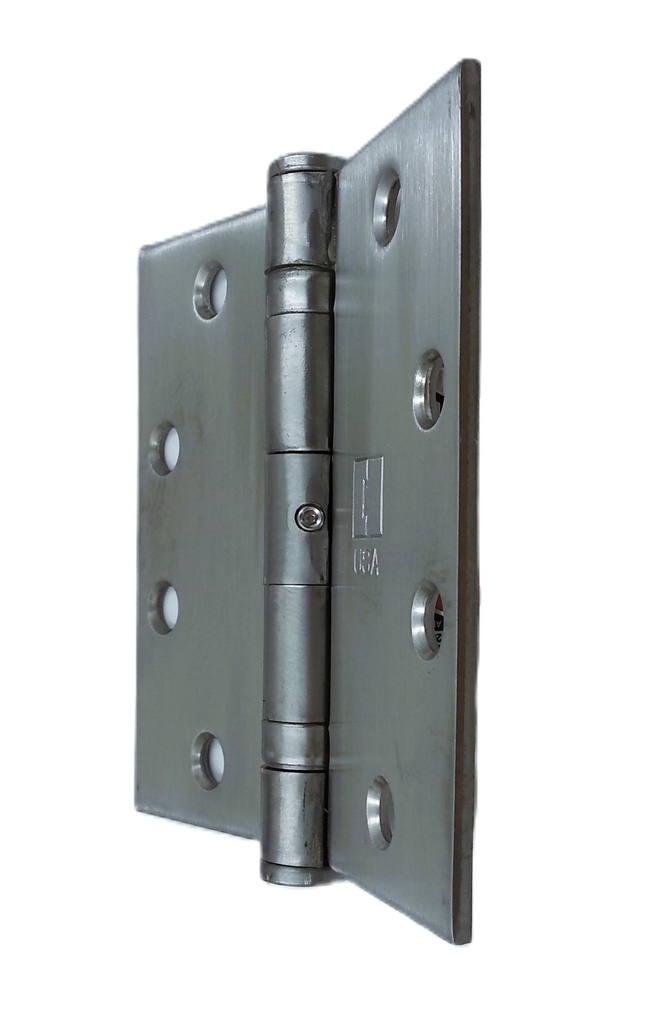

Hager BB1191 NRP 4-1/2" x 4-1/2" Ball Bearing Hinge – Non-Ferrous Security
The Hager BB1191 NRP is the ultimate solution for exterior doors in corrosive environments, such as coastal regions or high-moisture commercial facilities. As a non-ferrous hinge, it is crafted from Brass or 304L Stainless Steel to prevent rust and oxidation. Designed for medium-weight doors requiring low-frequency service, this hinge combines architectural elegance with industrial-grade durability.
Advanced Security with Non-Removable Pin (NRP)
Security is paramount for outward-swinging doors where the hinge barrel is exposed. The NRP (Non-Removable Pin) feature includes a hidden set screw that secures the pin in place, making it impossible to tap out from the outside. This vital innovation protects your facility from unauthorized entry via hinge manipulation, providing essential enhanced security and peace of mind for any secure door installation.
Material Excellence and Fire Safety
The Hager BB1191 series offers two primary material bases to suit your project requirements. The Stainless Steel models (Type 304L) meet ANSI A5112 standards and are suitable for most environments. The Brass models meet ANSI A2112 and offer a classic look with various plated finishes.
Important Note: While Stainless Steel hinges are fire-rated, hinges with a Brass base material are not permitted for use on UL Fire Rated Door Openings per NFPA 80 regulations.
Technical Specifications
| Feature | Specification |
| Model Number | Hager BB1191 NRP |
| Dimensions | 4-1/2" x 4-1/2" (114mm x 114mm) |
| Hinge Type | Full Mortise - Ball Bearing - Non-Ferrous |
| Base Materials | Brass (with SS Pin) or Stainless Steel (Type 304L) |
| Gauge (Thickness) | 0.134" |
| Security Feature | Non-Removable Pin (NRP) |
| Bearing Count | Two Ball Bearings |
| Door Thickness | Designed for 1-3/4" (44mm) Doors |
| Standards | ANSI A2112 (Brass) / ANSI A5112 (Stainless Steel) |
| Pin Style | Non-rising removable pin with button tip and plug |
Installation and Fasteners
Every Hager BB1191 includes a complete set of high-quality fasteners to ensure a professional, flush-mount fit:
- Machine Screws: (8 ea) 1/2" 12-24 FPHM (Included)
- Wood Screws: (4 ea) 1-1/4" x 12 FPHW (Included)
Professional Finishes
Select from a range of high-durability architectural finishes:
- Stainless Steel Base: US32 (Bright) or US32D (Satin)
- Brass Base: US3 (Bright Brass), US4 (Satin Brass), US10 (Satin Bronze), US10B (Oil Rubbed Bronze), or US26D (Satin Chrome)
| General - US Finishes | US26D - Satin Chrome or US32D - Satin Stainless Steel/ 630 or US3 - Polished Brass or US4 - Satin Brass or US10 - Satin Bronze or US10B - Oil Rubbed Bronze or US32 - Polished Stainless Steel |
| Brand | Hager |
| Hinge Height | 4.5" Hi |
| Hinge Width | 4.5" Wi |
| Hinge Grade/Thickness | Standard Wt .119 to .146 |
| Hinge Type | Full Mortise |
| Hinge Options | Ball Bearing, NRP (Non Removable Pin) |
| Base Material | Stainless Steel, Brass |
| Hinge Corners | Square |
