Hager 9710HD 72" Heavy Duty Wall Mount Sliding Door Hardware Set For Single Door up to 250 lbs

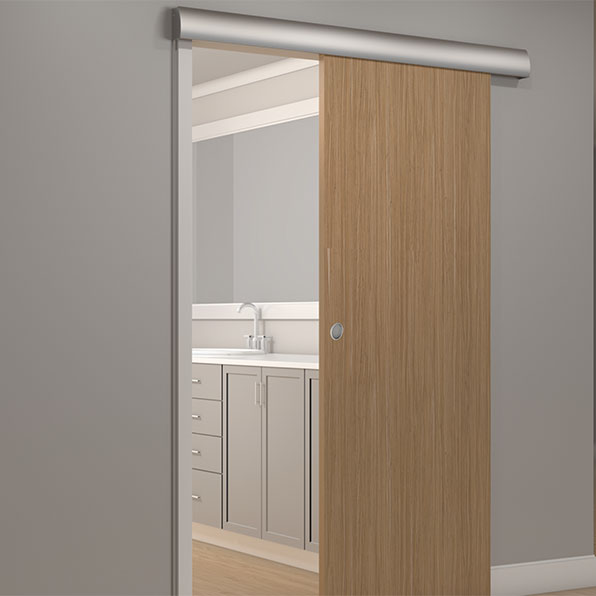

The Hager 9710HD 72" Set is an architecturally designed sliding door solution specifically engineered for applications where a traditional pocket door or overhead track is not feasible. This Wall Mount Sliding Door Hardware is the premier choice for Commercial and High-End Residential projects, offering a sleek, surface-mounted aesthetic that saves space without requiring internal wall modifications. Designed for a single door up to 36" wide, the 9710HD supports a massive weight capacity of Up to 250 lbs.

The system features the 9703HD Wall-Mounted Track paired with an Aluminum Fascia (9704), which provides a clean, professional appearance by concealing all mounting fasteners. The set is finished with Embossed Hager Logo End Plates, ensuring that every detail reflects the quality of Hager’s world-class engineering. Whether you are installing a heavy solid-core wood door in a hotel suite or a modern glass partition in a corporate office, the 9710HD provides an effortless, high-performance glide.

Grade 1 Certified Precision & Performance

The Hager 9710HD is built to the rigorous ANSI/BHMA A156.14 Grade 1 standard, having been tested to exceed 100,000 operational cycles. This makes it an industrial-strength alternative to residential-grade hardware like the Johnson 2610F or Pemko 280SWT. The system utilizes 9806 4-wheel ball bearing carriers, which ensure that even the heaviest 250 lb. doors move with minimal force and virtually no noise.

Key Features

• Massive Load Capacity: Engineered to support heavy single doors up to 250 lbs (113 kg).

• Grade 1 Performance: BHMA certified to exceed 100,000 cycles for extreme durability.

• Integrated Fascia & End Caps: Includes the 9704 Aluminum Fascia and 9705 End Plates for full fastener concealment.

• Whisper-Quiet Glide: Equipped with 9806 Easy Glide 4-wheel ball-bearing carriers.

• Versatile Door Thickness: Compatible with doors ranging from 1-1/8" to 1-3/4" thick.

• Complete Hardware Kit: Includes the track, fascia, hangers, bumpers, and a wall-mounted adjustable fin guide.

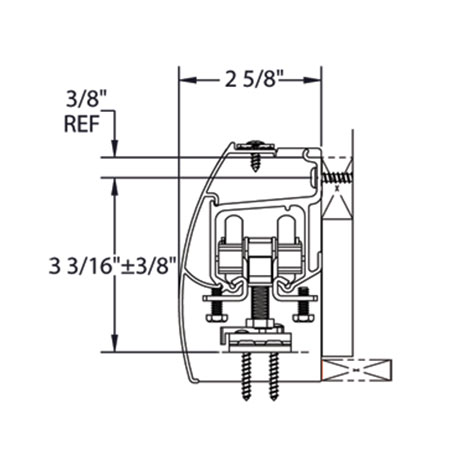

Technical Specifications

Packaged Set Contents

Each Hager 9710HD-72 set ordered from DoorwaysPlus.com arrives as a comprehensive, ready-to-install system:

• (1) 9703HD Wall-Mounted Track: Heavy-duty reinforced aluminum rail.

• (1) 9704 Aluminum Fascia: Snaps onto the track to hide all mounting hardware.

• (1) 9705 Pair of End Plates: Provides a finished, architectural look to the track ends.

• (2) 9806 Hangers: Precision ball-bearing rollers for 250 lb. capacity.

• (2) Center Stop Bumpers: Protects the door and hardware at the end of travel.

• (1) Wall-Mounted Adjustable Fin Guide: Keeps the door aligned without floor-mounted tracks.

• (1) Adjusting Wrench: For precision height and leveling adjustments.

Professional Installation Note

For the best results in Healthcare or Hospitality environments, DoorwaysPlus.com recommends ensuring the wall mounting surface is reinforced with solid wood blocking. Because this system is Wall Mounted, the structural integrity of the wall is critical to supporting the 250 lb. door weight. The adjustable fin guide allows for minor floor variations, ensuring the door remains plumb and glides smoothly regardless of the flooring type.
