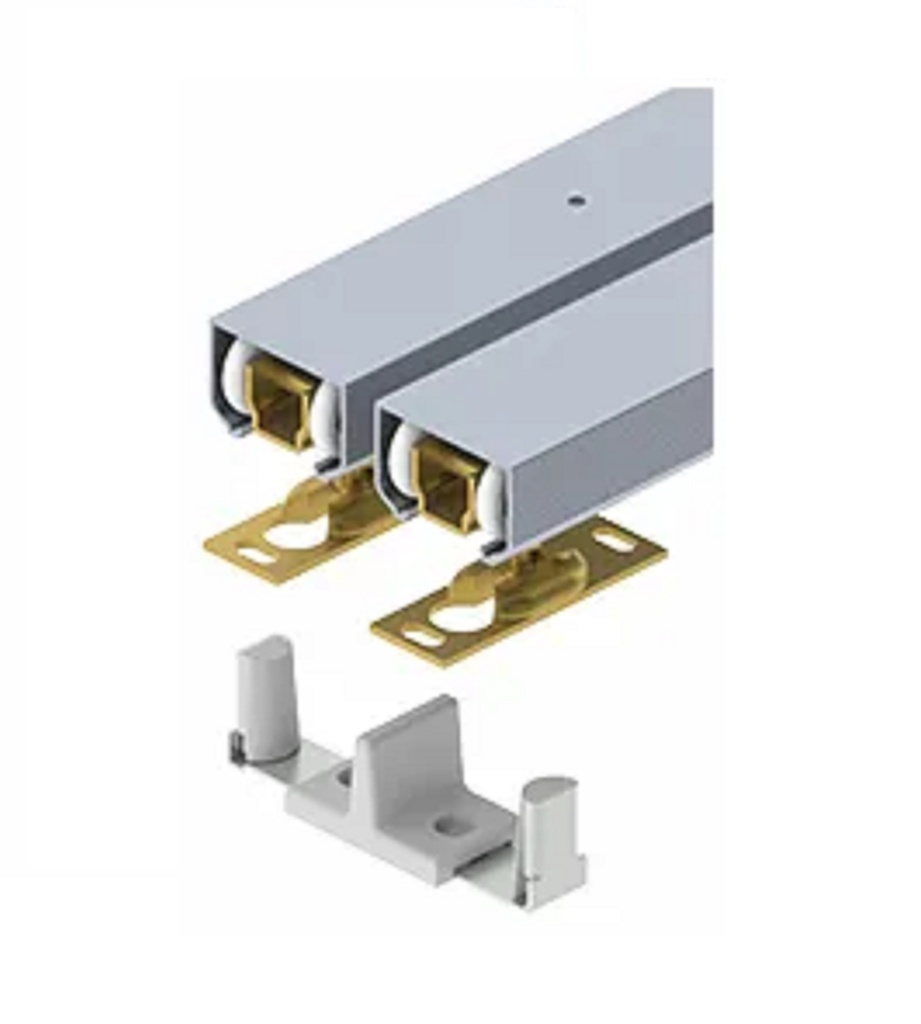

Hager 9611HD Heavy Duty By-Pass Sliding Door Track Set

The Hager 9611HD By-Pass Trackset is the ultimate industrial-grade sliding door solution for the most demanding architectural environments. Specifically engineered for heavy-traffic Commercial, Healthcare, and Hospitality applications, this system is built to support a massive weight capacity of Up to 250 lbs. per door. Whether you are installing oversized solid-core wood doors or heavy metal partitions, the 9611HD provides the structural integrity and effortless glide required for professional office and medical suite layouts.

This set features dual 9303HD Aluminum Tracks, providing a rigid and "jump-proof" foundation. These tracks are paired with 4-wheel HD Roller Hangers that utilize precision ball bearings to ensure that even the heaviest doors move with minimal force and virtually no noise. This comprehensive kit also includes a floor channel door guide to keep door panels perfectly aligned and two flush cup pulls for a sleek, integrated finish.

BHMA Grade 1 Certified Performance

The Hager 9611HD is a BHMA Certified Grade 1 hardware system, rigorously tested to exceed 100,000 operational cycles. It stands as the modern, high-performance replacement for previous Hager series, including the 9130, 9612, and 9875. IMPORTANT NOTE: While the function remains identical, the internal components of the 9611HD are non-interchangeable with previous versions; for all new installations or complete system upgrades, the 9611HD is the current industry standard for high-capacity bypass hardware.

Key Features

• Extreme Weight Capacity: Supports the heaviest door panels up to 250 lbs. (113 kg) each.

• Dual 9303HD Tracks: Includes two high-strength extruded aluminum heavy-duty tracks.

• Grade 1 Industrial Rating: Meets ANSI/BHMA A156.14 requirements (Type D02411-250).

• Smooth 4-Wheel Hangers: Heavy-duty rollers designed for silent operation under maximum load.

• Adjustable Door Thickness: Compatible with standard 1-3/8” or 1-3/4” door profiles.

• Complete Installation Kit: Includes the 9621-HD Parts Bag with all necessary technical fasteners.


Technical Specifications

Packaged Set Contents

Each Hager 9611HD set ordered from DoorwaysPlus.com arrives as a complete, ready-to-install system:

• (2) Aluminum Tracks (9303HD): Reinforced rails for high-capacity bypass operation.

• (4) 4-Wheel HD Roller Hangers: Industrial ball-bearing rollers for smooth gliding.

• (1) Floor Channel Guide: Eliminates rattling and maintains panel alignment at the floor.

• (2) Flush Cup Pulls: Low-profile recessed pulls for a modern architectural look.

• (1) 9621-HD Parts Bag: High-strength mounting screws and assembly hardware.

Specifications:

Applications:

• Commercial
• Healthcare
• Hospitality
• Office

Certifications

• Meets performance requirements ANSI/
  BHMA A156.14 (Grade 1) for sliding doors
  by exceeding 100,000 cycles
• Type D02411-250

Length Options: 48”, 60”, 72”, & 96”

Maximum Door Thickness: Door thickness from 1-3/8” or 1-3/4”

Notes

• The 9611HD is the equivalent of previous By-Pass sets 9130, 9612, 9875
• IMPORTANT: The components between new and previous versions are NON-INTERCHANGEABLE
