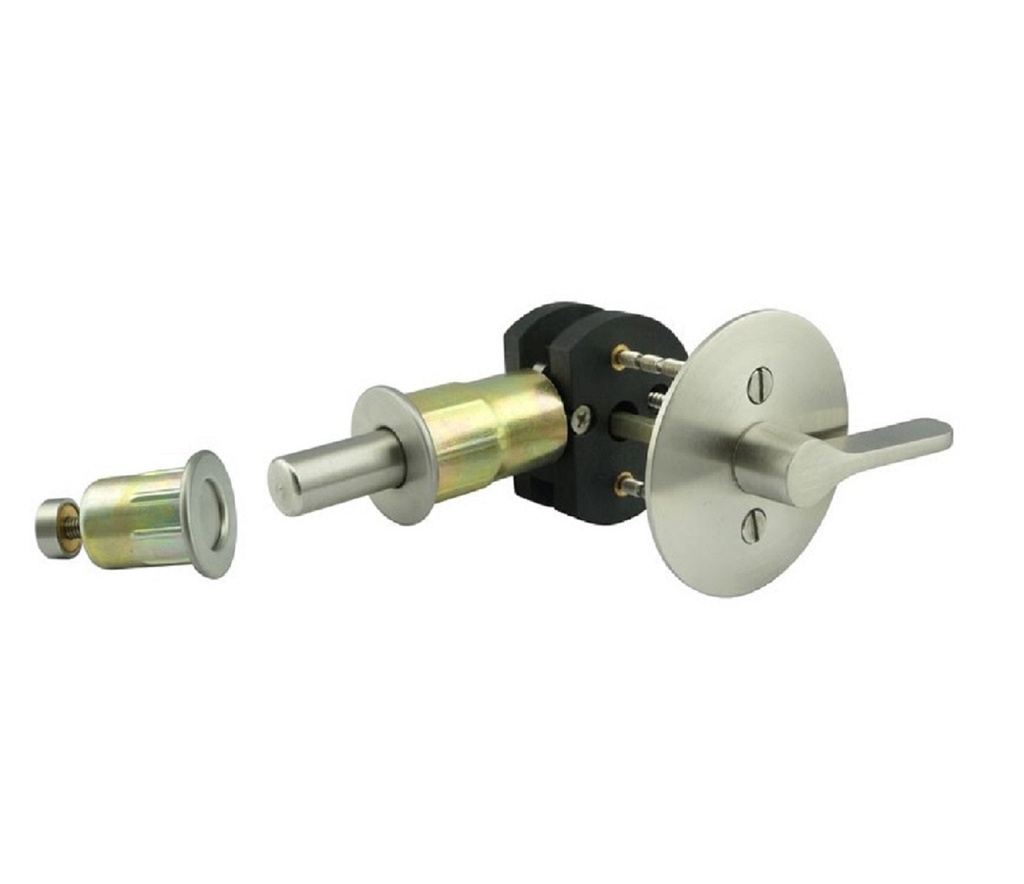

Hager 9458 2D Barn Door Privacy Lock with ADA Thumbturn  - 2-1/4" Backset

The Hager 9458 2D Barn Door Privacy Lock is the industry standard for securing sliding doors in professional and high-traffic environments. Specifically engineered to complement the Hager 9400 Stainless Steel and eConestoga Series hardware, this lock provides a sleek, integrated security solution without sacrificing aesthetic appeal. With a 2-1/4” backset and a robust stainless steel latch bolt, it is the premier choice for Multi-Family housing, Assisted Living facilities, and Hospitality suites.

Designed with accessibility at its core, this model features a Round ADA Thumbturn that ensures ease of operation for all users. The non-handed design allows for versatile installation on either left or right-handed door configurations, making it a reliable "go-to" component for architects and commercial contractors alike.

Superior Strike Design and Gap Accommodation

The Hager 9458 includes a specialized 1-1/4" diameter spring-loaded dust-proof strike that is mounted directly into the barn door. One of the most critical features of this lock is its ability to handle varied door-to-wall clearances. The 1" bolt projection easily bridges a standard 1/2" gap, while the included extra spacer ring accommodates larger gaps of up to 3/4", ensuring a secure latch even in complex architectural layouts.

Key Features

• ADA Compliant Security: Features an ergonomic thumbturn designed for commercial accessibility standards.
• Premium Materials: Constructed from a high-durability blend of Brass and Stainless Steel.
• Dust-Proof Strike: Includes a spring-loaded strike plate that prevents debris buildup inside the door-mounted cavity.
• Flexible Installation: Non-handed chassis works with any sliding door orientation.
• Versatile Gap Coverage: Includes spacers to maintain a secure lock across gaps up to 3/4".

Technical Specifications

Packaged Set Contents

Each Hager 9458 2D privacy set ordered from DoorwaysPlus.com arrives as a complete, project-ready kit:

• (1) Privacy Lock Chassis: Featuring the high-strength stainless steel latch.
• (1) ADA Thumbturn: Finished to match your sliding door hardware.
• (1) Dust-Proof Strike: Spring-loaded and designed for door-edge mounting.
• (1) Extra Spacer Ring: For managing wider door-to-wall clearances (up to 3/4").
• Technical Fasteners: All necessary mounting screws for wood or metal door applications.

Professional Installation Note

For optimal security in Healthcare or Office settings, ensure the strike is centered perfectly with the latch bolt projection. Because the 9458 is designed for permanent commercial use, the strike is intended to be mortised into the door edge. DoorwaysPlus.com recommends verifying your door-to-wall gap before installation to determine if the included spacer ring is required for a flush, secure fit.
