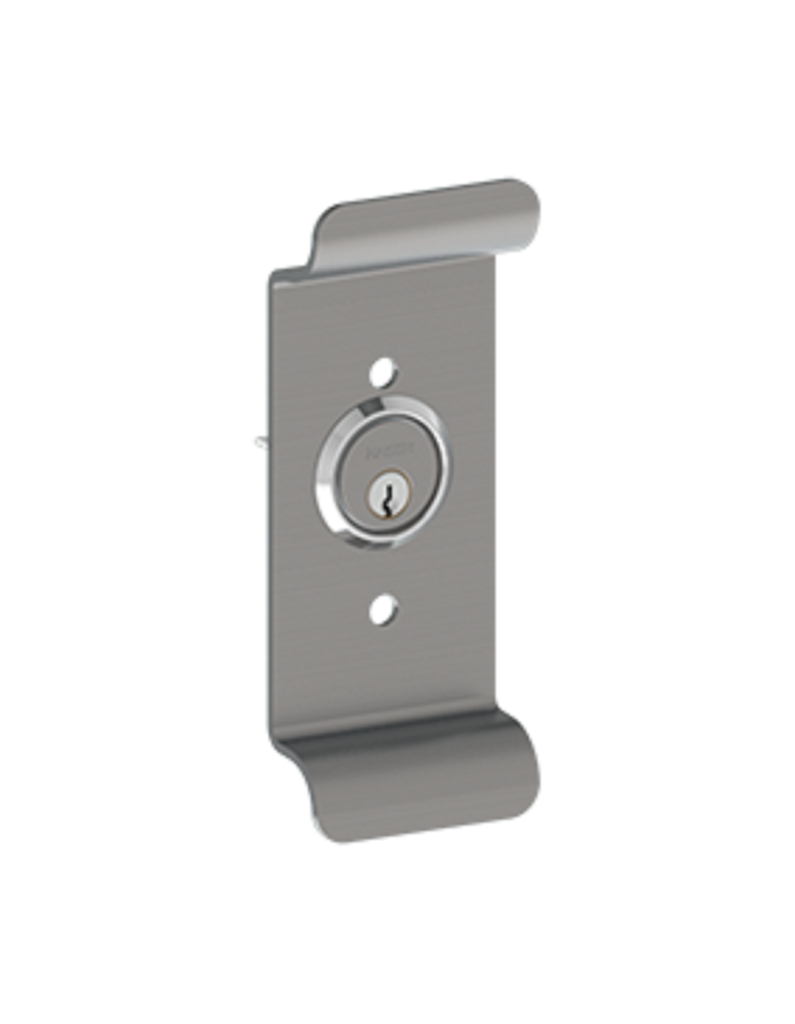

Hager 47RN Night Latch Grip Pull – Grade 1 Security Trim for 4700 Series
The Hager 47RN Night Latch Grip Pull is a high-security, standard-duty trim designed specifically for use with Hager 4700 Series Exit Devices. This Night Latch Function (ANSI 03) trim—also known as Storeroom Function—features a rigid, non-moving grip pull that remains locked at all times. Entry is only possible by using a key to retract the latchbolt, making the 47RN the ideal choice for rear exit doors, secure storage areas, and utility rooms where "always locked" protection is required.
As a BHMA Certified Grade 1 component, the 47RN is built to withstand the rigorous demands of high-traffic commercial and institutional environments. The trim features a durable steel body and a high-strength grip handle, providing a professional architectural look with industrial-grade durability. Its low-profile design ensures it remains unobtrusive while offering the heavy-duty performance required for schools, hospitals, and retail complexes.
High-Security Engineering & Secure Mounting
The Hager 47RN is a "Less Rim Cylinder" model, designed to be paired with a Hager 3901 Rim Cylinder (sold separately). This configuration allow facility managers to easily integrate the trim into an existing master key system. To ensure a permanent and stable mount, the trim is installed using thru bolts, providing a high-strength, through-the-door connection that prevents the grip pull from loosening, sagging, or being tampered with over time.
Key Features
- Night Latch Security: Exterior grip is always rigid; key retracts the latchbolt for entry (ANSI 03).
- Grade 1 Performance: BHMA certified to meet the highest industry standards for mechanical life.
- Rugged Construction: Steel trim body with a reinforced, heavy-duty grip handle.
- Non-Handed Design: Fully reversible in the field for use on both left and right-hand swinging doors.
- Easy Retrofit: Designed to fit standard door preparations for seamless installation.
Technical Specifications
| Feature | Specification |
| Model Number | Hager 47RN |
| ANSI Function | 03 (Night Latch / Storeroom) |
| Certification | BHMA Certified Grade 1 (ANSI/BHMA A156.3-2014) |
| Compatibility | Hager 4700 Series Rim and Vertical Rod Devices |
| Cylinder Requirements | Requires 3901 Rim Cylinder (Sold Separately) |
| Grip Projection | 2" (51 mm) |
| Fasteners | Thru Bolts, Wood, and Machine Screws |
| Warranty | 5-Year Limited Manufacturer Warranty |
Available Finish Options
Select the architectural finish at DoorwaysPlus.com that best matches your facility's design:
- Satin Stainless Steel (US32D): The industry standard for corrosion resistance and durability.
- Sprayed Aluminum (ALM): Matches standard clear anodized aluminum storefront frames.
- Sprayed Dark Bronze (DBZ): A professional, dark finish for traditional architectural styles.
- Bright Brass (US3): A polished, traditional finish for upscale institutional entries.
| Finish with BHMA code | 689 - Painted, Aluminum or 630 - US32D Satin Stainless or 605 - US3 Polish Brass or 695 - Painted, Stat Dark Bronze |
| Brand | Hager |
| Series | Hager - 4700 Series |
| Exit Device Trim Function | Storeroom |
| Door Handing | Field Reversible |
