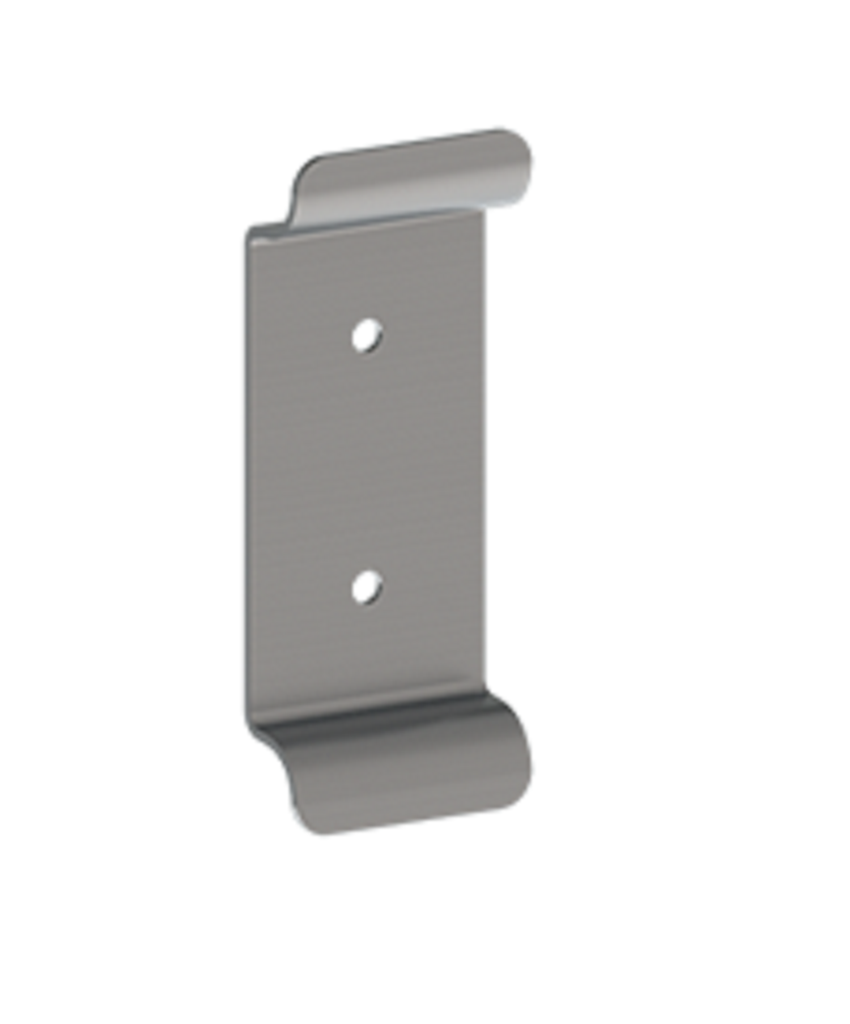

Hager 47RD Dummy Grip Pull – Grade 1 Fixed Trim for 4700 Series
The Hager 47RD Dummy Grip Pull is a heavy-duty, non-functional handle designed to complement the Hager 4700 Series Exit Devices. This Dummy Function (ANSI 02) trim features a fixed, rigid grip pull that serves as a permanent pull handle. It is the ideal architectural solution for the inactive leaf of a pair of doors or for openings that only require a push/pull operation when the exit device is dogged down for high-traffic use.
As a BHMA Certified Grade 1 component, the 47RD is built for maximum mechanical durability. The trim consists of a rugged steel body and a high-strength grip handle, ensuring it can withstand the constant force and daily abuse found in schools, hospitals, and busy retail centers. Its low-profile, sleek design provides a comfortable grip while maintaining a uniform, professional appearance across all your facility's exit hardware.
Architectural Uniformity & High-Strength Mounting
The Hager 47RD is specifically engineered to match the footprint and finish of active Hager 4700 Series trims, such as the 47RN night latch grip. This ensures a consistent look throughout your building even on non-locking doors. For a permanent and stable installation, the trim is mounted using thru bolts, providing a high-strength through-the-door connection that prevents the grip pull from loosening or sagging over time.
Key Features
- Dummy Pull Function: Fixed, rigid grip serves as a permanent pull handle (ANSI 02).
- Grade 1 Performance: BHMA certified to meet the highest commercial standards for hardware life.
- Rugged Construction: Steel trim body with a reinforced, heavy-duty grip handle.
- Seamless Integration: Matches the architectural profile of all Hager 4700 Series trims.
- Non-Handed Design: Fully reversible for use on both left and right-hand swinging doors.
Technical Specifications
| Feature | Specification |
| Model Number | Hager 47RD |
| ANSI Function | 02 (Dummy Trim / Pull) |
| Certification | BHMA Certified Grade 1 (ANSI/BHMA A156.3-2014) |
| Compatibility | Hager 4700 Series Rim and Vertical Rod Devices |
| Grip Projection | 2" (51 mm) |
| Door Thickness | Standard 1-3/4" (Fits 1-5/8" to 2-1/4" doors) |
| Fasteners | Thru Bolts, Wood, and Machine Screws |
| Warranty | 5-Year Limited Manufacturer Warranty |
Available Finish Options
Select the architectural finish at DoorwaysPlus.com that best matches your existing door hardware:
- Satin Stainless Steel (US32D): The industry standard for high-traffic durability and corrosion resistance.
- Sprayed Aluminum (ALM): A modern, professional match for standard aluminum door frames.
- Sprayed Dark Bronze (DBZ): A classic, high-durability finish for traditional commercial environments.
- Bright Brass (US3): A polished finish for upscale institutional or office entries.
| Finish with BHMA code | 689 - Painted, Aluminum or 630 - US32D Satin Stainless or 605 - US3 Polish Brass or 695 - Painted, Stat Dark Bronze |
| Brand | Hager |
| Series | Hager - 4700 Series |
| Exit Device Trim Function | Dummy |
| Door Handing | Field Reversible |
