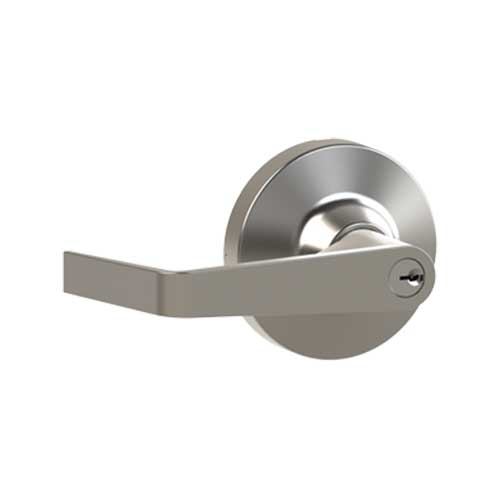

Hager 47KE Classroom Key-in-Lever – Grade 1 Trim for 4700 Series
The Hager 47KE Key-in-Lever is a high-performance, standard-duty trim designed specifically for use with Hager 4700 Series Exit Devices. This Classroom Function (ANSI 08) trim provides essential access control for educational and commercial facilities: the exterior lever or knob is locked or unlocked by a key. When unlocked, it allows for free entry by simply turning the handle, making it the premier choice for classrooms, office suites, and common areas.
As a BHMA Certified Grade 1 component, the 47KE is built to withstand the rigors of high-traffic environments. The trim features a rugged steel body and zinc handles (with a stainless steel rose on US32D models), ensuring long-term mechanical reliability. Its ADA compliant lever designs facilitate easy operation for all users, providing a seamless blend of security and accessibility.
Integrated Security & Versatile Design
The Hager 47KE is supplied with a conventional Schlage C Keyway cylinder as standard, allowing for easy integration into existing security systems. For facilities requiring higher key control, Small Format Interchangeable Core (SFIC) housing is also available for lever designs. To ensure maximum stability, the trim is installed using thru bolts, which create a high-strength, through-the-door connection that prevents sagging and resists forced entry attempts.
Key Features
- Classroom Functionality: Key locks or unlocks the exterior handle; entrance is by lever or knob (ANSI 08).
- Grade 1 Durability: BHMA certified to meet the highest standards for commercial hardware performance.
- ADA Compliant Levers: Ergonomic designs meet A117.1 Accessibility Code for inclusive building design.
- Rugged Construction: Steel trim body with high-strength handles and a 3-3/8" rose diameter.
- Turtle Prep Compatible: Designed for easy installation on standard 2-1/8" cross bore door preparations.
Technical Specifications
| Feature | Specification |
| Model Number | Hager 47KE |
| ANSI Function | 08 (Entrance by Trim / Classroom) |
| Certification | BHMA Certified Grade 1 (ANSI/BHMA A156.3-2014) |
| Compatibility | Hager 4700 Series Rim and Vertical Rod Devices |
| Cylinder Type | Conventional Schlage C Keyway (SFIC Optional for Levers) |
| Standard Door Prep | 2-1/8" Diameter (ANSI A156.115 Turtle Prep) |
| Fasteners | Thru Bolts, Wood, and Machine Screws |
| Warranty | 5-Year Limited Manufacturer Warranty |
Available Finish & Style Options
Customization options at DoorwaysPlus.com allow you to match your facility's architectural aesthetic:
- Handle Styles: Choose from Archer (ARC), August (AUG), or Withnell (WTN) levers, or the Apollo (APO) knob.
- Professional Finishes: Available in Satin Stainless Steel (US32D), Sprayed Aluminum (ALM), Dark Bronze (DBZ), and Polished Brass (US3).
- Handing: This trim is field reversible and non-handed for versatile installation.
| Finish with BHMA code | 689 - Painted, Aluminum or 630 - US32D Satin Stainless or 605 - US3 Polish Brass or 695 - Painted, Stat Dark Bronze |
| Trim Design | WTN - Withnell or ARC - Archer or AUG- August |
| Brand | Hager |
| Series | Hager - 4700 Series |
| Exit Device Trim Function | Classroom |
| Door Handing | Field Reversible |
