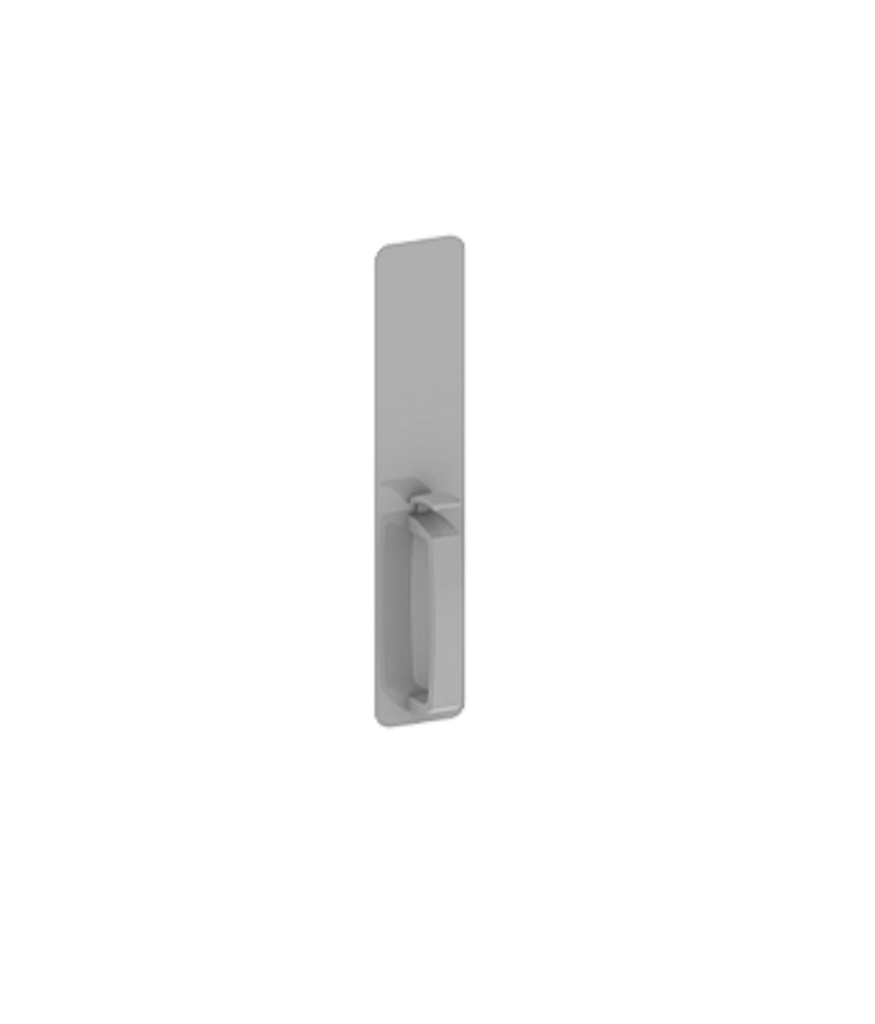

Hager 47BT Passage Thumbpiece Trim – Grade 1 Escutcheon for 4700 Series
The Hager 47BT Pull Handle Trim is a high-performance, standard-duty solution designed for use with Hager 4700 Series Exit Devices. This Passage Function (ANSI 15) trim features a classic thumbpiece design where the thumbpiece is always active and operable. Because there is no locking mechanism, this trim is the perfect choice for high-traffic areas where free entry and egress are required at all times, such as interior office corridors, common areas, and non-secure commercial partitions.
As a BHMA Certified Grade 1 component, the 47BT is built to the highest mechanical standards. The trim features a heavy-duty 3" x 11" steel escutcheon plate and a reinforced pull handle, providing a traditional architectural look with industrial-grade durability. Its ADA compliant thumbpiece ensures that your facility remains accessible and easy to navigate for all users.
Durable Engineering & Secure Mounting
The Hager 47BT is designed for "Blank Escutcheon" passage use, meaning it does not require a cylinder and cannot be locked. To ensure a permanent, high-strength installation that can handle the constant use of a passage opening, the trim includes thru bolts as standard hardware. This creates a rigid, through-the-door connection that prevents the escutcheon from shifting or sagging, even on heavy commercial doors.
Key Features
- Passage Functionality: Thumbpiece is always active (ANSI 15); ideal for non-secure high-traffic doors.
- Grade 1 Performance: BHMA certified for superior mechanical life and professional durability.
- ADA Compliant Thumbpiece: Ergonomic design meets A117.1 accessibility standards for ease of operation.
- Rugged Construction: Features a heavy-duty steel plate and a durable pull handle with a 1-3/4" projection.
- Non-Handed Design: Fully reversible for use on both Left Hand Reverse (LHR) and Right Hand Reverse (RHR) doors.
Technical Specifications
| Feature | Specification |
| Model Number | Hager 47BT |
| ANSI Function | 15 (Always Operable / Passage) |
| Certification | BHMA Certified Grade 1 (ANSI/BHMA A156.3-2014) |
| Compatibility | Hager 4700 Series Rim and Vertical Rod Devices |
| Plate Size | 3" x 11" (76 mm x 298.5 mm) |
| Pull CTC / Projection | 5-1/2" Center-to-Center / 1-3/4" Projection |
| Fasteners | Thru Bolts, Wood, and Machine Screws |
| Warranty | 5-Year Limited Manufacturer Warranty |
Available Finish Options
Select the architectural finish at DoorwaysPlus.com that best matches your facility's design:
- Satin Stainless Steel (US32D): The industry standard for high-traffic areas and maximum corrosion resistance.
- Sprayed Aluminum (ALM): A cost-effective, professional match for standard aluminum door frames.
- Sprayed Dark Bronze (DBZ): A classic, high-durability finish for traditional commercial environments.
- Bright Brass (US3): A polished, high-contrast finish for upscale institutional entries.
| Door Handing | RHR or LHR |
| Brand | Hager |
| Series | Hager - 4700 Series |
| Finish with BHMA code | 630 - US32D Satin Stainless |
| Exit Device Trim Function | Passage |
| Trim Design | Grip Pull |
