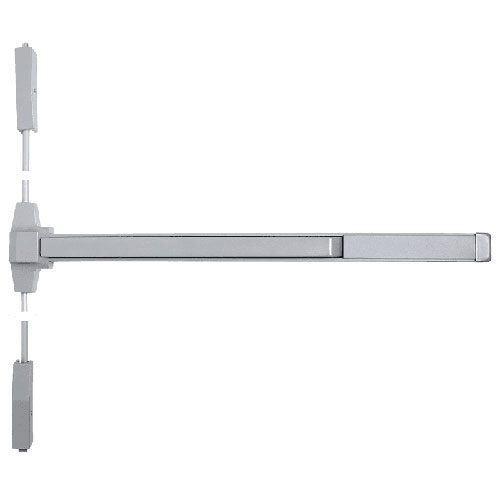

Hager 4701 SVR FR Exit Device - Fire Rated - 4'0"x 7'0" Door
The Hager 4701 SVR FR Exit Device (48" x 84") is a heavy-duty, fire-rated security solution engineered for wide commercial door openings. While standard 36" devices cannot provide the necessary coverage for oversized entryways, this Surface Vertical Rod (SVR) system is factory-sized for 4'0" widths, providing the essential leverage and reach required for wide fire-rated corridors, school double doors, and hospital exits.
As a BHMA Certified Grade 1 device, the 4701 SVR FR represents the highest industry standard for mechanical durability. It is UL/cUL Listed for up to 3 hours on fire-labeled doors, serving as a critical life-safety component that ensures a secure seal against smoke and flames. This model is Less Dogging (LD) as mandated by fire codes, ensuring the vertical rods are always engaged and the door is latched at all times.
Enhanced Security for Oversized Fire Doors
Wide fire doors are susceptible to heat-related warping; the Hager 4701 SVR FR mitigates this risk by anchoring the door at both the top strike and the floor. The stainless steel Pullman-style latchbolts provide a smooth, automatic dead-latching action that secures the door instantly upon closing. To handle the increased weight of a 48-inch fire door, this device ships standard with thru bolts, providing a high-strength through-the-door connection that ensures the hardware remains permanently aligned.
Key Features
- Fire-Rated Compliance: UL Listed for use on fire-labeled door assemblies up to 3 hours.
- Wide Door Optimization: Sized for 48" (4'0") door widths; can be field-cut for doors down to 37".
- Grade 1 Performance: BHMA certified to withstand heavy commercial use and high-frequency cycles.
- Multi-Point Latching: Dual latching points at the top and bottom provide maximum resistance against prying.
- Non-Handed Design: Reversible in the field for use on both left and right-hand swinging fire doors.
Technical Specifications
| Feature | Specification |
| Model Number | Hager 4701 (SVR-FR-48) |
| Certification | BHMA Certified Grade 1 |
| Fire Rating | UL Listed Fire Rated (FR) |
| Door Dimensions | 4'0" Wide x 7'0" Tall (48" x 84") |
| Dogging Type | Less Dogging (LD) for Fire Rated Openings |
| Latchbolt | Stainless Steel Pullman Style (Top/Bottom) |
| Fasteners | Thru Bolts, Wood, and Machine Screws |
| Warranty | 5-Year Limited Manufacturer Warranty |
Available Finish Options
Available at DoorwaysPlus.com, the Hager 4701 SVR FR is offered in several architectural finishes to match your facility's design:
- Satin Stainless Steel (US32D): The industry standard for fire-rated durability and low maintenance.
- Sprayed Aluminum (ALM): A modern, professional look for contemporary office frames.
- Sprayed Dark Bronze (DBZ): An elegant, classic choice for traditional commercial storefronts.
- Matte Black (BLK): A bold, high-contrast finish for high-end architectural designs.
Professional Installation Note
For wide fire doors with decorative trim or glass bead kits, DoorwaysPlus.com recommends the Hager 4931S Surface Vertical Rod Shim Kit. This ensures that the rods and chassis are mounted on a level surface, preventing mechanical binding and ensuring the device functions perfectly during an emergency.
| Finish with BHMA code | 689 - Painted, Aluminum or 630 - US32D Satin Stainless or 605 - US3 Polish Brass or 693 - Painted, Black or 695 - Painted, Stat Dark Bronze |
| Brand | Hager |
| Series | Hager - 4700 Series |
| Exit Device Type | SVR Exit Device |
| Exit Device Fire Rating | Fire Rated Door |
| Door Opening Width | 48 Inches |
| Door Height | 7'0" Dr Ht |
