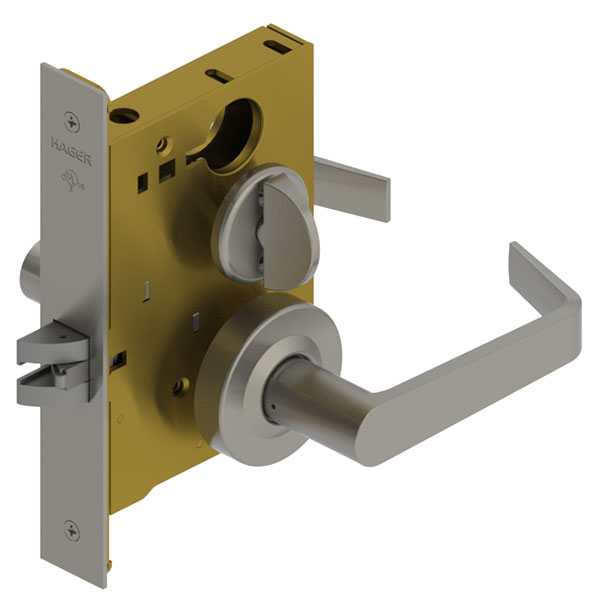

Hager 3844S Privacy Mortise Latchset – Grade 1 Sectional with Cointurn
The Hager 3844S Privacy Mortise Latchset is a heavy-duty, commercial-grade locking solution designed for environments where both privacy and rapid emergency access are paramount, such as healthcare facilities, nursing homes, and high-traffic public restrooms. This Privacy Function (ANSI F22) set features an internal thumbturn to lock the outside lever, while the exterior rose is equipped with a cointurn emergency release. This allows authorized personnel to quickly unlock the door from the outside using a common coin or flat tool, ensuring safety without the need for a specialized key.
By utilizing the Sectional (S) Trim, the 3844S offers a contemporary, low-profile aesthetic that is ideal for modern architectural projects. As a BHMA Certified Grade 1 device, it is built to the highest mechanical standards for high-frequency use. The heavy-duty mortise lock body is constructed from case-hardened steel with a corrosion-resistant coating, ensuring smooth operation for millions of cycles.
Safety-First Engineering & Modern Style
The Hager 3844S combines the industrial strength of a mortise lock with the accessibility of an ADA compliant lever handle and thumbturn. The internal components are precision-engineered to provide a solid tactile feel and prevent the handle sagging often found in lower-grade hardware. For a permanent and stable mount, the sectional roses are secured using thru bolts, providing a high-strength, through-the-door connection that keeps the trim perfectly aligned even under extreme daily use.
Key Features
- Cointurn Emergency Release: Provides rapid exterior access during emergencies using a coin or flat tool.
- Privacy Functionality: Internal thumbturn locks the outside lever for user privacy (ANSI F22).
- Grade 1 Reliability: BHMA certified to meet the highest industry standards for mechanical life and durability.
- ADA Compliant: Ergonomic lever and thumbturn designs meet A117.1 Accessibility Code requirements.
- Sectional Rose Trim: 2-7/16" diameter roses provide a clean, modern, and minimalist architectural look.
Technical Specifications
| Feature | Specification |
| Model Number | Hager 3844S |
| ANSI Function | F22 (Privacy with Cointurn Release) |
| Certification | BHMA Certified Grade 1 (ANSI A156.13) |
| Trim Style | Sectional (S) Rose Design |
| Rose Diameter | 2-7/16" (62 mm) |
| Door Thickness | Standard 1-3/4" (Fits 1-3/8" to 2-1/2" doors) |
| Backset | 2-3/4" (70 mm) Standard |
| Fasteners | Thru Bolts, Wood, and Machine Screws |
| Warranty | Lifetime Limited Manufacturer Warranty |
Available Finish & Lever Options
Customize your Hager 3844S at DoorwaysPlus.com to match your facility's architectural aesthetic:
- Lever Designs: Choose from the Archer (ARC), August (AUG), or Withnell (WTN) styles.
- Architectural Finishes: Available in Satin Stainless Steel (US32D), Satin Chrome (US26D), Dark Bronze (US10B), and Bright Brass (US3).
- Anti-Microbial Coating: Optional silver-ion based coating is available for healthcare applications to inhibit the growth of bacteria on touch surfaces.
| Trim Design | WTN - Withnell or ARC - Archer or AUG- August |
| General - US Finishes | US26D - Satin Chrome or US32D - Satin Stainless Steel/ 630 or US26 - Polished Chrome or US15 - Satin Nickel or US3 - Polished Brass or US4 - Satin Brass or US10B - Oil Rubbed Bronze |
| Brand | Hager |
| ANSI Mortise Lock Function | F22 - Privacy |
| Series | Hager - 3800 Series |
| Occupancy Indicator | No |
