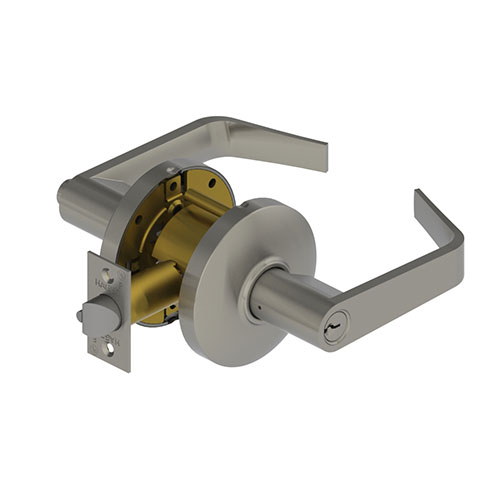

Hager 3573 WTN Grade 2 Corridor Lever Lockset
Function Information:
The Hager 3573 WTN is a heavy-duty, commercial-grade cylindrical lockset specifically designed for corridors in multi-family housing, dormitories, and hospitality environments. As a Corridor Function (ANSI F90), it provides a versatile security solution: the exterior lever can be locked or unlocked by an interior turn button or an exterior key. Featuring the classic, ergonomic Withnell (WTN) lever design, this lockset delivers a timeless architectural aesthetic that integrates perfectly into any professional or residential facility.
Reliable Security with Emergency Safety
The Hager 3573 is engineered to balance resident privacy with critical life-safety requirements. While the interior turn button allows occupants to manually secure their space, the inside lever always allows for free egress, ensuring a "single-motion" exit during an emergency. The deadlocking latchbolt provides a robust barrier against forced entry, specifically designed to resist "shimming" and unauthorized retraction. The non-handed design allows for flexible installation on any door swing throughout a corridor.
Industrial Build and Universal Accessibility
Certified to ANSI/BHMA Grade 2 standards, the Hager 3500 Series features a heavy-gauge steel chassis with a zinc dichromate finish for superior corrosion resistance. The Withnell lever is fully ADA compliant, providing a comfortable grip that allows for easy operation without tight grasping or twisting. To ensure a professional finish and discourage tampering, the 3573 WTN features no exposed mounting screws and utilizes a secure thru-bolt installation for a rigid, stable attachment to the door.
Technical Specifications
| Feature | Specification |
| Series | Hager 3500 Series |
| Function | Corridor (ANSI F90) |
| Grade | ANSI/BHMA A156.2 Grade 2 |
| Lever Style | Withnell (WTN) |
| Locking Mechanism | Interior Turn Button / Exterior Key |
| Interior Status | Always Active (Free Egress) |
| Cylinder | 6-Pin Conventional, Schlage C Keyway |
| Door Thickness | 1-3/8" to 2" (35 mm - 51 mm) |
| Backset | 2-3/4" (Standard) or 2-3/8" (Optional) |
| Fire Rating | UL/cUL Listed up to 3 hours |
| Accessibility | ADA Compliant (ANSI A117.1) |
Key Product Highlights
- Withnell Ergonomic Style: The WTN lever offers a neutral, professional profile that complements almost any commercial or institutional building design.
- Corridor-Specific Safety: Combines manual interior locking with a keyed exterior, ensuring authorized access while prioritizing rapid interior egress.
- Enhanced Vandal Resistance: The integrated thru-bolt design provides a robust barrier against hardware loosening and tampering in high-traffic hallways.
- Code-Compliant Performance: UL/cUL listed for 3-hour fire doors, fulfilling the critical building and safety codes required for modern residential corridors.
| Finish with BHMA code | 626 - US26D Satin Chrome or 613 - US10B Oil Rubbed Bronze or 605 - US3 Polish Brass or 606 - US4 Satin Brass or 625 - US26 Polish Chrome |
| Cylinder Options | SCC - Schlage C Keyway or SFIC |
| Brand | Hager |
| ANSI Cyl Lock Function | F90 - Corridor |
| Trim Design | WTN - Withnell |
| Series | Hager - 3500 Series |
