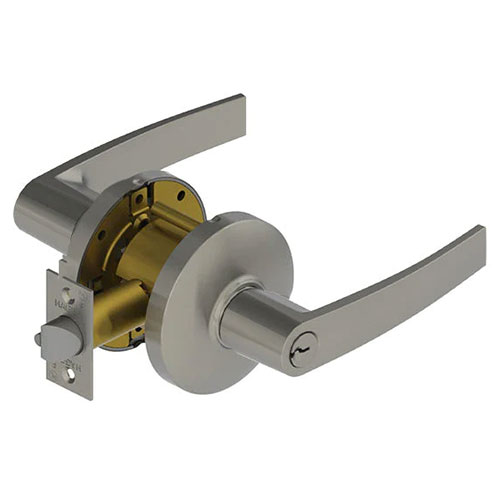

Hager 3573 AUG Grade 2 Corridor Lever Lockset
Function Information:
The Hager 3573 AUG is a heavy-duty, commercial-grade cylindrical lockset specifically designed for multi-family residential units, dormitories, and hotel corridors. As a Corridor Function (ANSI F90), this lockset provides the versatile security required for living spaces: the exterior lever can be locked or unlocked by an interior turn button or an exterior key. Featuring the bold, modern August (AUG) lever design, it delivers a clean, linear architectural aesthetic that fits perfectly in contemporary professional and residential environments.
Residential Security with Life-Safety Performance
The Hager 3573 is engineered to prioritize occupant safety without compromising security. While the interior turn button allows for a manual locking state, the inside lever always allows for free egress, ensuring residents can exit instantly in an emergency. The deadlocking latchbolt provides a critical barrier against forced entry, resisting common "shimming" techniques. This lockset is non-handed, making it a flexible choice for large-scale projects with varying door swings.
Industrial Engineering and Full Accessibility
Certified to ANSI/BHMA Grade 2 standards, the Hager 3500 Series features a heavy-gauge steel chassis with a zinc dichromate finish for superior corrosion resistance. The August lever is fully ADA compliant, offering an ergonomic, straight-profile grip that is easily operated by all users. To ensure a sleek finish and discourage tampering, the 3573 AUG features no exposed mounting screws and utilizes a secure thru-bolt installation for a rigid, stable attachment to the door.
Technical Specifications
| Feature | Specification |
| Series | Hager 3500 Series |
| Function | Corridor (ANSI F90) |
| Grade | ANSI/BHMA A156.2 Grade 2 |

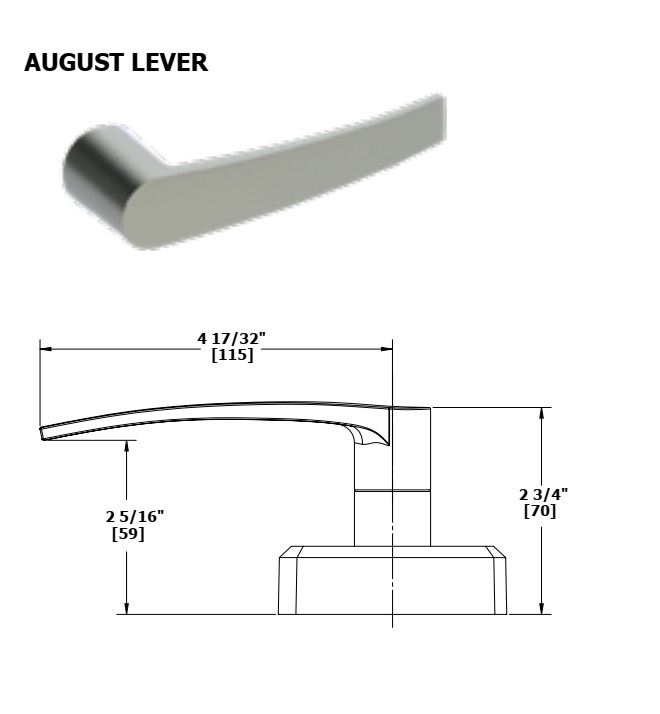

| Lever Style | August (AUG) |
| Locking Mechanism | Interior Turn Button / Exterior Key |
| Interior Status | Always Active (Free Egress) |
| Cylinder | 6-Pin Conventional, Schlage C Keyway |
| Door Thickness | 1-3/8" to 2" (35 mm - 51 mm) |
| Backset | 2-3/4" (Standard) or 2-3/8" (Optional) |
| Fire Rating | UL/cUL Listed up to 3 hours |
| Accessibility | ADA Compliant (ANSI A117.1) |
Key Product Highlights
- August Architectural Design: The AUG lever offers a sharp, contemporary look that complements modern interior designs in high-end developments.
- Corridor Logic Safety: Facilitates secure manual locking from the inside while ensuring authorized key access from the exterior and immediate egress.
- Enhanced Vandal Resistance: The integrated thru-bolt design and concealed fasteners provide a robust barrier against hardware loosening and tampering in high-traffic hallways.
- Code-Compliant Performance: UL/cUL listed for 3-hour fire doors, fulfilling the critical building and safety codes required for modern commercial and residential facilities.
| Finish with BHMA code | 626 - US26D Satin Chrome or 613 - US10B Oil Rubbed Bronze or 605 - US3 Polish Brass or 606 - US4 Satin Brass or 625 - US26 Polish Chrome |
| Cylinder Options | SCC - Schlage C Keyway or SFIC |
| Brand | Hager |
| ANSI Cyl Lock Function | F90 - Corridor |
| Trim Design | AUG- August |
| Series | Hager - 3500 Series |
