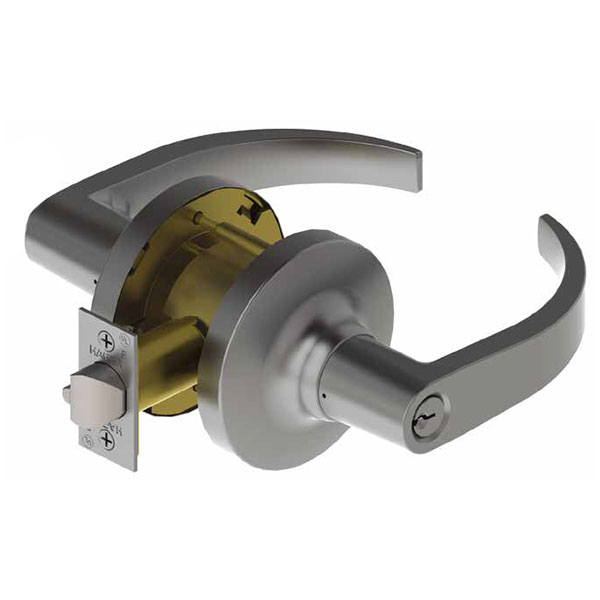

Hager 3495 ARC Grade 1 Intruder Classroom Lever Lockset
Function Information:
The Hager 3495 ARC is a heavy-duty, high-security cylindrical lockset specifically engineered to meet the stringent safety requirements of modern K-12 schools, universities, and government facilities. As an Intruder Classroom Function (ANSI F110), this hardware allows for immediate lockdown of an opening from the interior using a key, ensuring that occupants can secure the room without stepping into a potentially dangerous hallway. Featuring the modern, swept-in Archer (ARC) lever design, this lockset provides a contemporary architectural look without compromising on Grade 1 durability.
Enhanced School Security and Life-Safety Compliance
The Hager 3495 is the industry standard for safe-room protocols. The dual-cylinder design enables authorized staff to lock or unlock the outside lever from either side of the door. A critical feature of the Intruder Function is the integrated locking indicator arrow stamped on the interior rose, providing immediate visual confirmation that the door is secured. To meet strict fire codes and NFPA 101 Life Safety standards, the interior lever is always active and provides free egress, ensuring occupants can exit the room at any time during an emergency.
Industrial Strength and Modern Ergonomics
Built for high-abuse environments, the Hager 3400 Series is certified to ANSI/BHMA Grade 1, meaning it has been tested to withstand over one million cycles. The Archer lever is fully ADA compliant, offering an ergonomic grip that is easy to operate for all users. The lock chassis is constructed with heavy-gauge steel and zinc dichromate plating for maximum corrosion resistance. To ensure long-term structural integrity and prevent lever sag, the unit is installed with a secure thru-bolt mounting system that creates a permanent bond between the lock and the door.
Technical Specifications
| Feature | Specification |
| Series | Hager 3400 Series |
| Function | Intruder Classroom (ANSI F110) |
| Grade | ANSI/BHMA A156.2 Grade 1 (Extra Heavy Duty) |

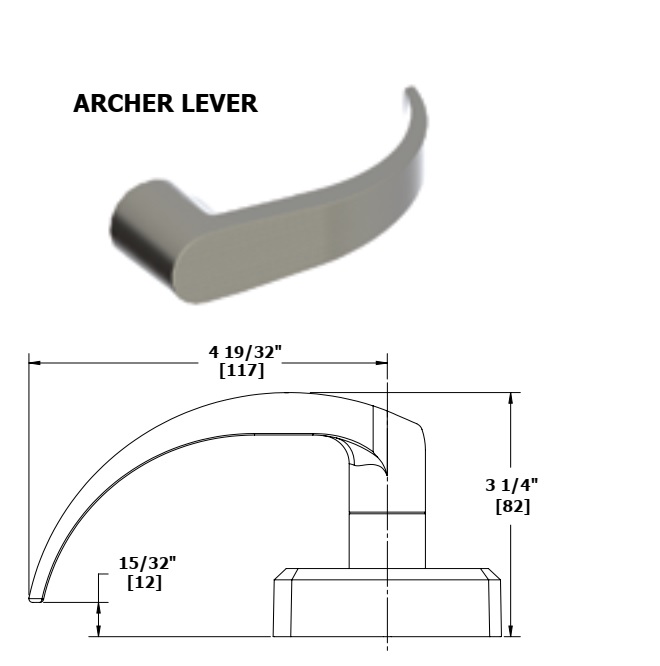

| Lever Style | Archer (ARC) |
| Cylinder Type | Double Cylinder (Interior key locks exterior lever) |
| Inside Operation | Inside lever always allows free egress |
| Door Thickness | 1-3/8" to 2" (35 mm - 51 mm) |
| Backset | 2-3/4" (Standard) or 2-3/8" (Optional) |
| Strike | 1-1/4" x 4-7/8" ASA Strike (Standard) |
| Fire Rating | UL/cUL Listed up to 3 hours |
| Windstorm Rating | ANSI A250.13 Severe Windstorm Resistant |
Standards, Compliance & Project Support
To assist architects and facilities directors with technical submittals, the Hager 3495 ARC meets the following industry benchmarks. For detailed Installation Templates, Cut Sheets, and Parts Lists, visit our Series Pages:
- Lockdown Safety: Meets modern school safety and "Safe Room" protocols for immediate interior locking.
- Fire Safety: UL/cUL Listed for up to 3-hour fire doors; compliant with NFPA 80.
- Accessibility: Meets ADA requirements and ANSI A117.1 for barrier-free access.
- Vandal Resistance: Features free-wheeling levers and robust thru-bolt mounting to prevent hardware tampering and forced entry.
Key Product Highlights
- Interior Keyed Lockdown: Allows staff to secure the exterior lever from inside the room, keeping them away from hallway threats.
- Modern Archer Aesthetic: The ARC lever offers a sophisticated, contemporary profile that coordinates with modern commercial interiors.
- Visual Security Indicator: Standard locking direction indicator on the interior rose for instant peace of mind.
- Heavy-Duty Construction: Engineered for a lifecycle of over one million cycles in high-traffic, demanding institutions.
| Finish with BHMA code | 626 - US26D Satin Chrome or 613 - US10B Oil Rubbed Bronze or 605 - US3 Polish Brass or 606 - US4 Satin Brass or 625 - US26 Polish Chrome |
| Cylinder Options | SCC - Schlage C Keyway or SFIC or LFIC |
| Brand | Hager |
| ANSI Cyl Lock Function | F110 - Classroom Security |
| Trim Design | ARC - Archer |
| Series | Hager - 3400 Series |
