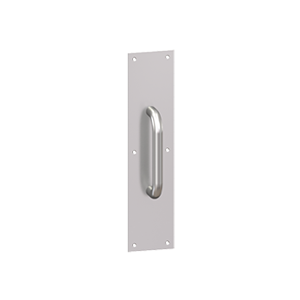

Hager 33E Square-Corner Pull Plate — 4" x 16" | Commercial Door Trim
The Hager 33E Pull Plate is a square-corner, integrated pull-and-plate unit designed for commercial and institutional doors that see constant, demanding use. At 4" wide x 16" tall x 0.050" gauge, the 33E pairs a 3/4" round door pull with a full-face protective plate — guarding the door finish at the highest-contact zone while giving occupants a firm, ergonomic grip. Available in two finish options: US19 Flat Black and US32D Satin Stainless Steel (630), coordinating cleanly with commercial hardware packages in either contemporary or institutional aesthetics.
Certified to ANSI A156.6 (J405) for commercial pull plate durability, the 33E is a reliable specification choice for schools, hospitals, government buildings, office corridors, and any opening subject to AHJ review. In-program finishes are available through Hager's HagerOnHand Express program for fast fulfillment.
Institutional-Grade Features & Benefits
- Integrated 3/4" Round Pull: Provides a secure, ergonomic grip mounted flush to the plate face — no separate pull hardware required.
- ANSI A156.6 Certified (J405): Meets the industry standard for commercial pull plate durability — suitable for AHJ-reviewed specifications and design schedules.
- Square-Corner Plate Profile: Clean architectural lines with beveled edges for a snag-free, professional finish on wood, hollow metal, and aluminum doors.
- 0.050" Standard-Gauge Plate: Substantial plate thickness provides lasting door-face protection at the highest-wear contact point.
- Two Commercial Finishes: US19 Flat Black and US32D Satin Stainless Steel (630) cover the most common contemporary and institutional hardware schedules.
- Complete Fastener Package Included: Six (6) #6 x 5/8" OPH tapping screws ship with every unit for straightforward field installation.
- HagerOnHand Express: In-program finishes ship in 1–2 business days, supporting tight project schedules.
Applications
- Schools, universities, and K-12 facilities
- Hospitals, clinics, and healthcare corridors
- Government and municipal buildings
- Commercial office buildings and multi-tenant facilities
- Hotels and hospitality properties
- Any opening requiring a pull plate meeting ANSI A156.6
Technical Details
| Feature | Details |
|---|---|
| Model Number | Hager 33E |
| Part Type | Pull Plate (integrated pull) |
| Plate Height | 16" |
| Plate Width | 4" |
| Plate Gauge / Thickness | 0.050" (Standard Gauge) |
| Pull Diameter | 3/4" round |
| Available Finishes | US19 – Flat Black | US32D – Satin Stainless Steel / 630 |
| Certification | ANSI A156.6, Grade J405 |
| Fasteners Included | Six (6) #6 x 5/8" OPH tapping screws |
| Brand | Hager |
| Series / Family | Hager Trim & Auxiliary — Pull Plates (33E family) |
| General - US Finishes | US32D - Satin Stainless Steel/ 630 or US19 - Flat Black |
| Brand | Hager |
| Plate Height | 16" |
| Plate Width | 4" |
| Handle Diameter | 3/4" |
| Plate Material Gauge | 0.050" |
